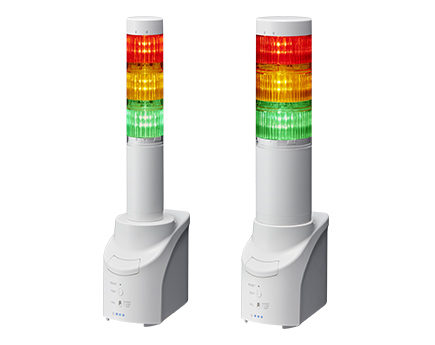

網路監控信號燈
NHL-3FB2/NHP-3FB2

NH系列是一個擁有E-mail通知的附蜂鳴器三層信號燈,可在通過網路連接在發現網路異常事件時,立即向遠端管理員報告。

  • 網路產品
  • 乙太網路
  • 信號燈
  • NHP(Φ40)
  • NHL(Φ60)
  • 長亮
  • 閃爍
  • 警示音
  • 80dB
  • 室內
  • IP20
  • 網路監控信號燈 NHL-3FB2/NHP-3FB2
可支援SNMP協定
  • 可與相容SNMP協定的各種網路設備搭配
  • 網路監控信號燈可加載專用MIB,用以透過SNMP Ping監控自身進行控制
  • 最多可對16個網路設備的運行狀況使用Ping監控對應到RSH指令
  • RSH指令可輕鬆用閃爍、蜂鳴器等方式通知信號燈,用以防止無權限之使用者進入、資料外洩等隱患
  • 通過與固定資產管理系統搭配,可以在無權限之使用者進入的情況下用閃爍、蜂鳴器等方式通知信號燈


產品規格

尺寸Ø40(NHP)、Ø60(NHL)
額定電壓DC 24V(以AC變壓器供電,則為AC 100V~240V)
通訊協定實體層:10 BASE-T/100 BASE-TX
資料連結層:CSMA/CD
網路層:IP/ICMP/ARP
傳輸層:TCP/UDP
應用層:HTTP/RSH/SMTP/SNMP/POP/DNS/Socket/NTP/DHCP
功能Ping監控器
RSH指令
SNMP v1・v2
自我診斷
應用監控
SOCKET
E-mail傳輸
本體轉換器機身顏色:灰白色
信號燈機身:白色
層數僅三層
模組顏色LED 標準色:紅/黃/綠
黃色
燈殼顏色:透明
蜂鳴器頻道1:可選,慢速間歇
頻道2:可選,中速間歇
頻道3:快速間歇
頻道4:連續音
認證RoHS 認證 (EN IEC 63000)
EMC 認證(EN 55032, EN 55024)
FCC Part15 Subpart B Class B, ICES-003 Class B
符合PSE標準的AC配接器

*3:僅 N 型與W型
CE Marking
