Ø40 LED信號燈


  • IO控制
  • 信號燈
  • Φ40
  • 長亮
  • 閃爍
  • 警示音
  • 85dB
  • 室內 (直立)
  • IP65
  • IP54

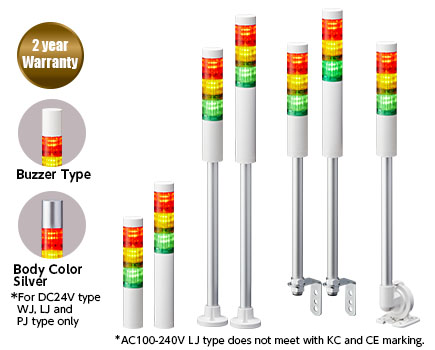

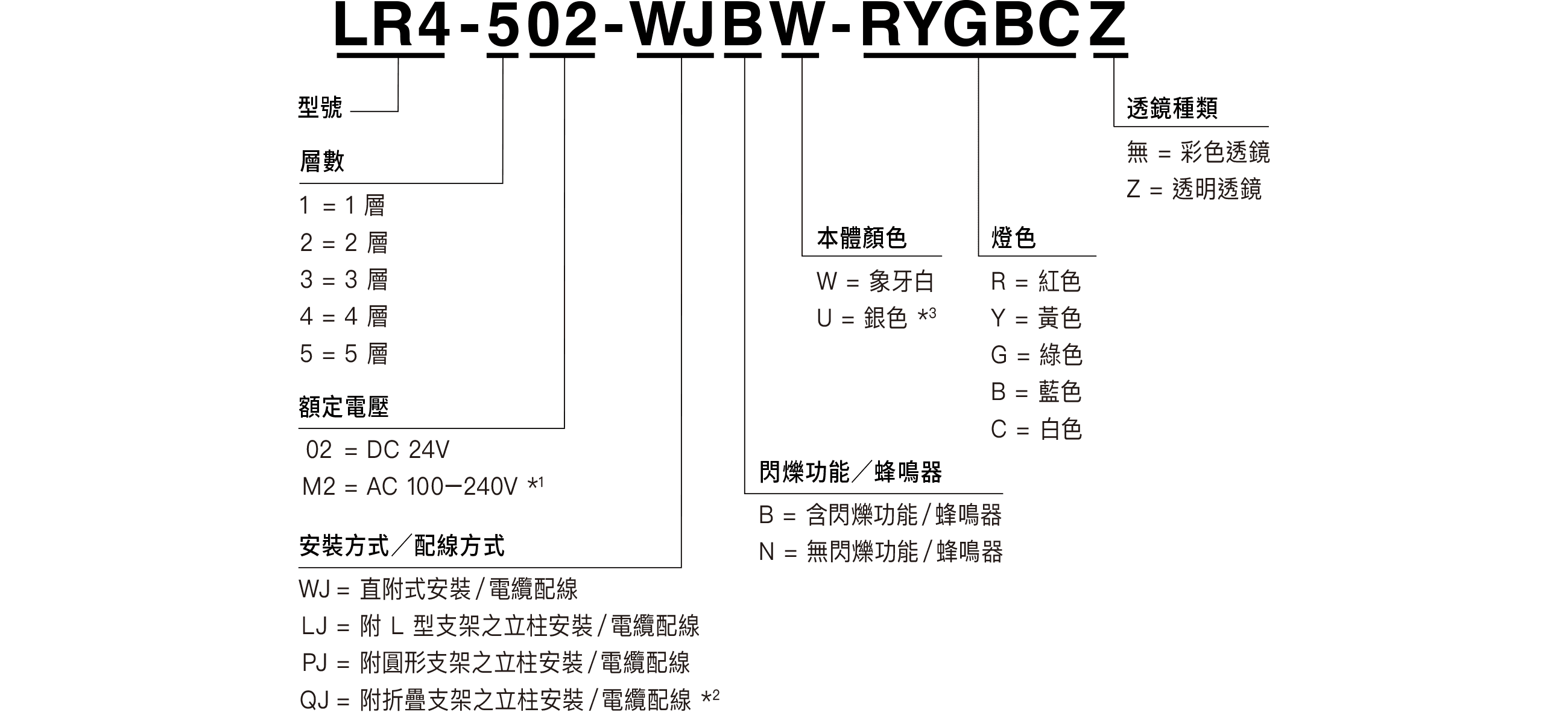

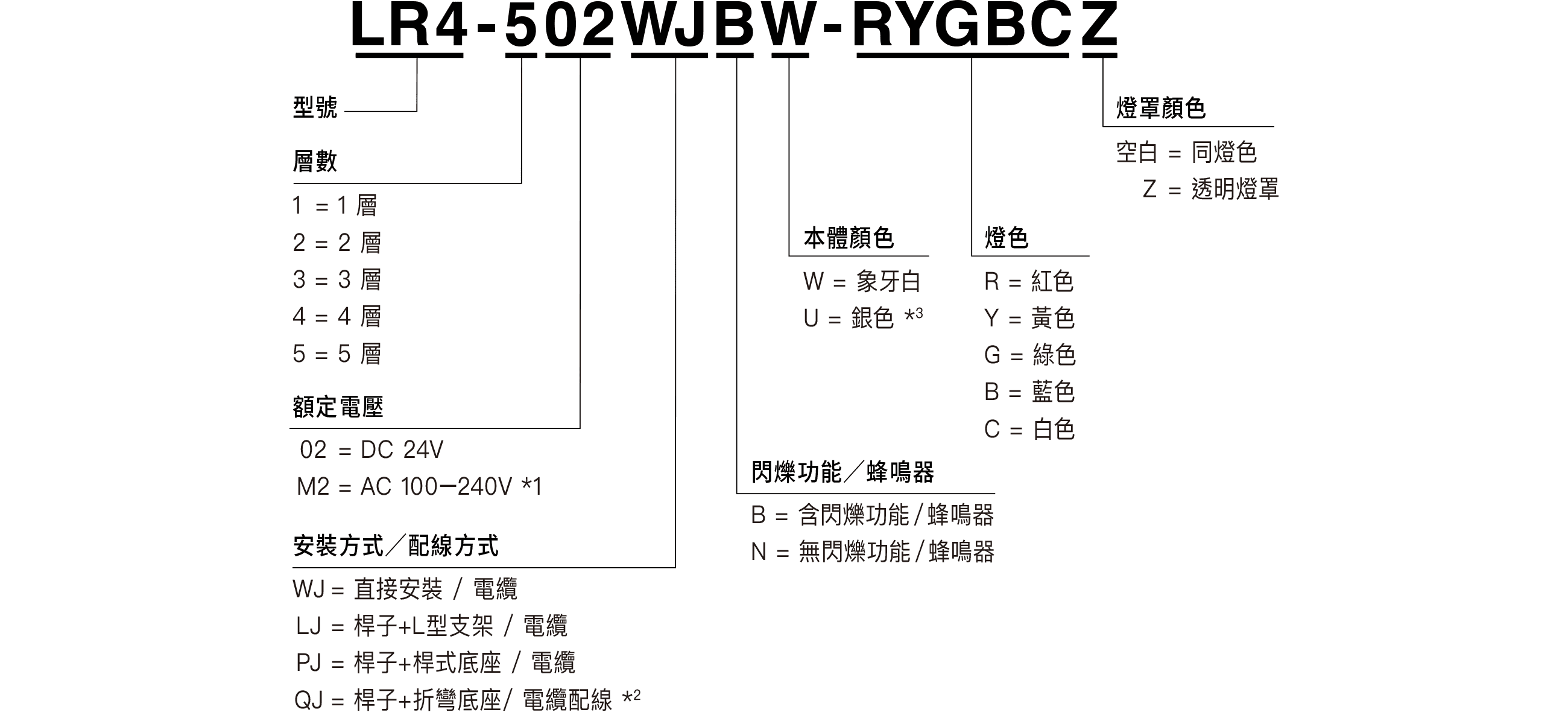

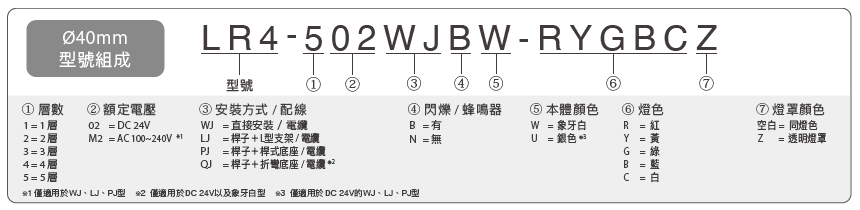

  • Ø40 LED信號燈 LR4
  • 全新設計燈罩以及改善內部模組結構,遠距也能清晰看見明亮光線
  • 蜂鳴器模組設計成完全封閉式,不僅可以確實維持防護等級,同時可以360°全方位發出警示。
    (LR5 DC12V:一公尺處80dB;LR4 及 LR5:85dB;LR6:88dB;LR7:90dB)
  • 模組化手動拆裝設計,可依照現場需求使用所需燈色、 蜂鳴或是安裝模式輕鬆客製化
  • 簡潔俐落的外型及具備 IP65 防護等級的堅固機身結構,可在嚴苛環境下發揮絕佳功能。
  • 共有四種安裝方式

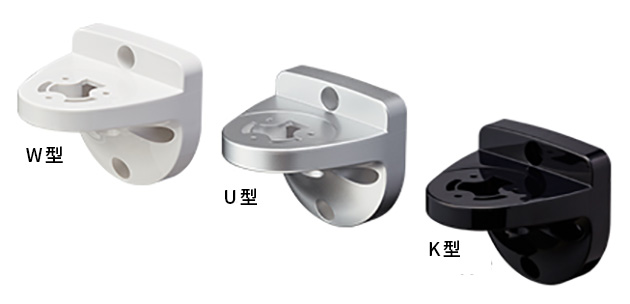

    2.L 型支架
  • 電壓選擇DC24V 及 AC100-240V (僅白色)。
  • 外型顏色選擇白色、銀色
  • 可選購透明燈罩。


使用溫度範圍 -20℃ - +50℃
使用濕度範圍 90% RH 以下,無凝結
儲存溫度範圍 -30℃ - +60℃
儲存濕度範圍 90% RH 以下,無凝結
安裝位置 室內
安裝方向 直立
防護等級*1 IP65(IEC 60529) / NEMA TYPE 4X, 13
絕緣電阻 DC500V 時,電源輸入線及機體間大於 1MΩ
耐受電壓 端子台及機體間每分鐘AC 500V,
無絕緣破壞現象(M2:每分鐘AC 1500V)
閃爍次數 60 ±2 閃爍次數 / 分鐘
音量 LR4 通常為85dB
聲音減低*2 ab.降低 -10dB
環境條件 第 4 種蜂鳴器聲,1公尺距離所有方向
蜂鳴器聲 4 種模式*2第 1 種:快速間歇聲
第 2 種:連續聲
第 3 種:快速高低音
第 4 種:警報聲
電晶體輸出 NPN / PNP (僅 NPN 為 AC100 - 240V)
符合性標準 ●UL 508, CSA-C22.2 No.14
●FCC 第 15 部分,子部分 B Class A
●RoHS 指令 (EN IEC 63000)
●EMC 指令 (EN 61000-6-4, EN 61000-6-2)
●KC (KN 61000-6-4, KN 61000-6-2)*3
●低電壓指令 (IEC/EN 60947-5-1, EN62471)*4

*1:LJ 型為 IP54   *2:視 DIP 開關設定而定   *3:KT 及 M2 LJ 型除外   *4:僅限 M2 型 (LJ 型除外)


LED 模組規格

燈色 紅色 黃色 綠色 藍色 白色
耗電量 / 消耗功率 標準 0.04A/1W
最大 0.045A/1.3W



耗電量 / 消耗功率 標準 0.04A/1W
最大 0.3A/1.3W
