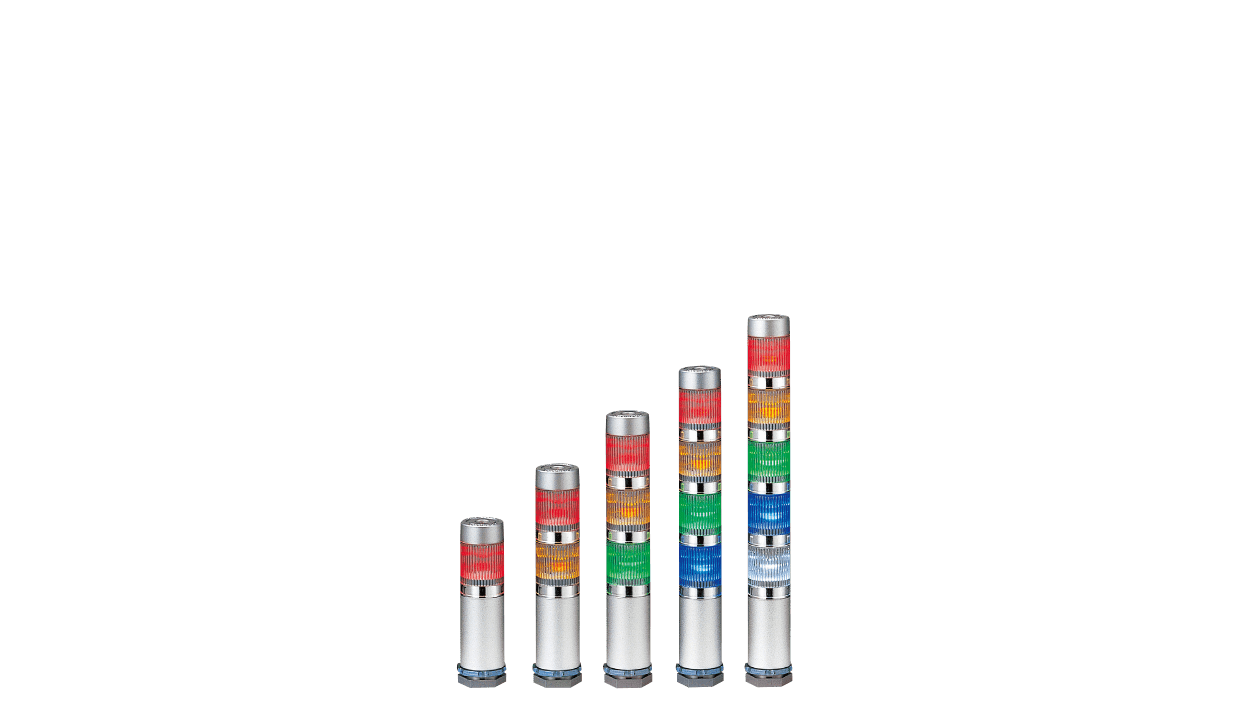

25mm超細長信號燈(短版本體)
MES-A

MES 系列是直接安裝的超薄型燈,採用防銹鋁製機身。LED 燈光透鏡在清晰並可依照客戶需求更換模組。

  • IO控制
  • 信號燈
  • Φ25
  • 長亮
  • 室內
  • IP42
  • 25mm超細長信號燈(短版本體) MES-A
  • PATLITE 獨有的混合棱鏡切割鏡頭:增強從任何方向和距離的可見性。
  • 增強照明:特殊的高強度照明設計。
  • 安裝方式:單孔直接安裝,增加使用便利性。
  • 可互換模組:即使增加模組也無需重新接線。
  • 主體:耐腐蝕及陽極氧化鋁,以保持其外觀整潔完整性。
  • 鏡片:卓越的抗衝擊性和耐熱聚碳酸酯樹脂,具有優良的耐用性和透光性。
  • 可選擇顏色:紅色、黃色、綠色、藍色、白色。
  • 本體長度:MES-A 40 毫米。



規格

尺寸 Ø25 mm
額定電壓 DC 24V
本體特色 預組裝;預接線
購買後可互換或新增模組
本體顏色 銀色
可使用模組數量 最多可堆疊 5 個模組
燈罩顏色 紅色
黃色
綠色
藍色
白色
認證 CE Marking
UL Recognized Component (US)
c-UL Recognition Component (加拿大)
RoHS
保護等級 IP42
