IO-Link 指示燈


  • 網路產品
  • IO-Link
  • Φ56
  • 警示燈
  • 長亮
  • 閃爍
  • 警示音
  • 88dB
  • 室內
  • IP65

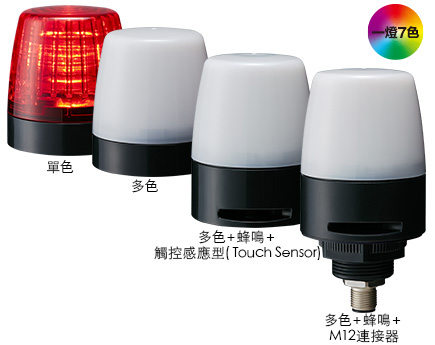

  • 一燈多色(7色)

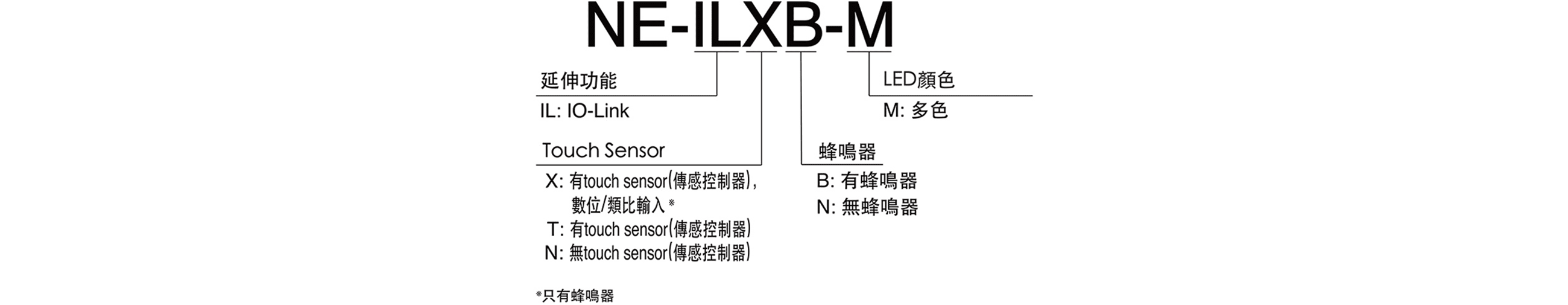

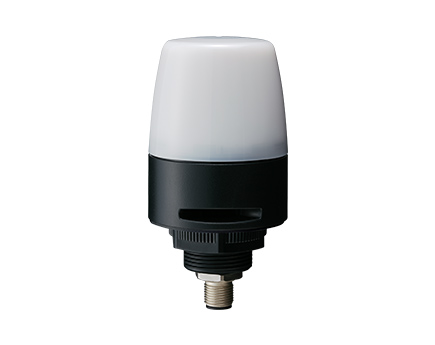

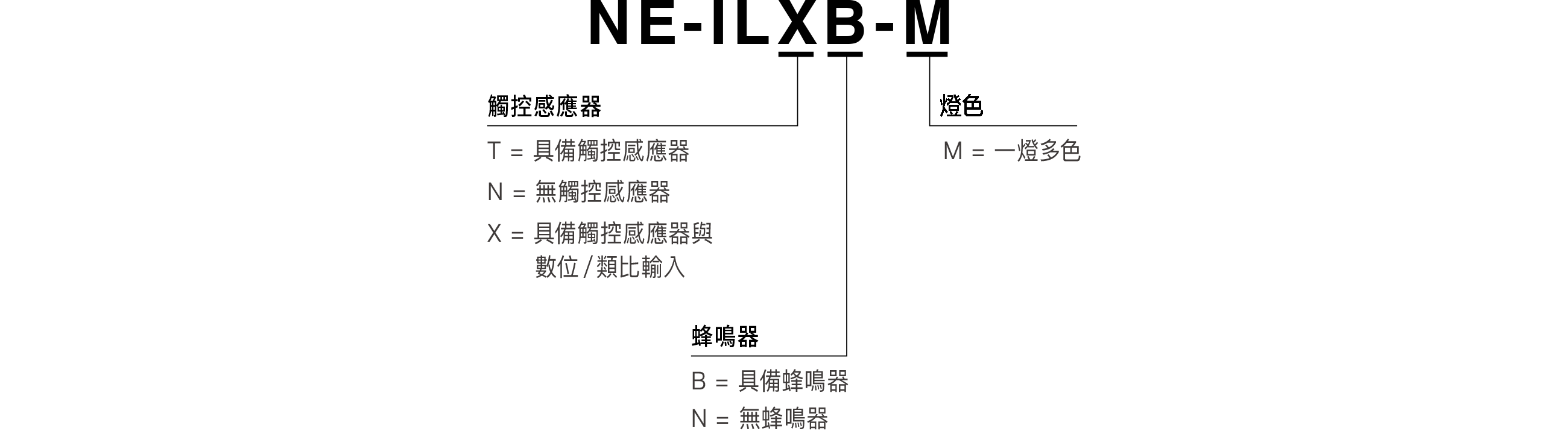

  • IO-Link 指示燈 NE-IL
  • 可以選擇有觸碰感應器的型號。電容式觸碰感應器內建在指示燈的頂部。 觸碰指示燈而不是外部開關,用以發送訊號給master。通過直觀的操作來使用它,例如輸入工作的完成情況和通知管理者。
  • 本設備通過IO-Link master通知IO-Link感應器等異常。因此,可以即早掌握異常訊息並排除。實現了減少停機損失、提高稼動率。
  • 可以根據應用從七種顏色中選擇顯示顏色。例如「異常」和「運作中」之類的易於想像的顏色可以更直觀地確定並回應情況。
  • 數位、類比輸入功能,可以連接與IO-Link不相容的設備。NE指示燈用作I / O集線器,可有效利用現場的各項設備。 指示燈可以根據感應器檢測到的閾值進行顯示,並且可以將數據發送到IO-Link master。
  • 與M12連接器連接電源和控制接線。不需要複雜的接線和專業知識。
  • 連接到IO-Link master的設備可以由master共同管理。有助於列出備品並進行保養。
  • 使用便於區分開與關的乳白色圓形燈罩。用均勻照明的柔和燈光發出警示。
  • 點閱此處,以取得與OMRON公司的IO-Link連接手冊「NX系列IO-Link master」






touch sensor (傳感控制器)


touch sensor

附蜂鳴器, touch sensor(傳感控制器),
尺寸 φ56
額定電壓 DC 24V
安裝場所/方式 室內,直立
防護等級 IP65 / NEMA TYPE 4X,13(正向安裝)
LED顏色 多色 (紅,黃,綠,藍,白,紫,淡藍)
LED顯示方式 常亮/閃爍
蜂鳴方式 88 dB
88 dB
認證 ●EMC指令(EN 61000-6-4,EN 61000-6-2)
●RoHS指令(EN 50581)
●UL 508,CSA-C22.2第14號
● FCC Part 15 SubpartB Class A級
● KC(KN 61000-6-4,KN 61000-6-2)

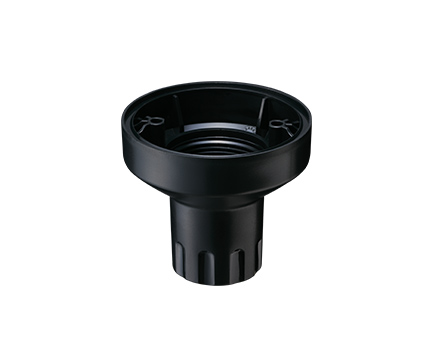

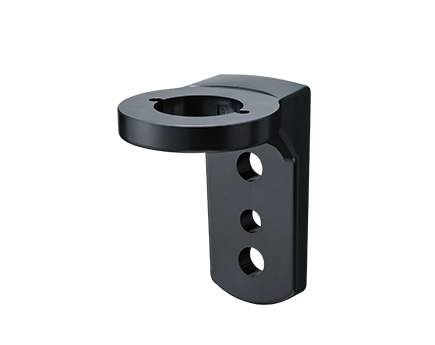

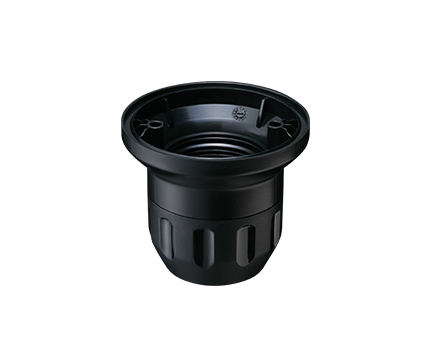

連接方式 M12連接線5 PIN A CODE M12連接線8 PIN A CODE
