(LR5 DC12V：一公尺處80dB；LR4 及 LR5：85dB；LR6：88dB；LR7：90dB)

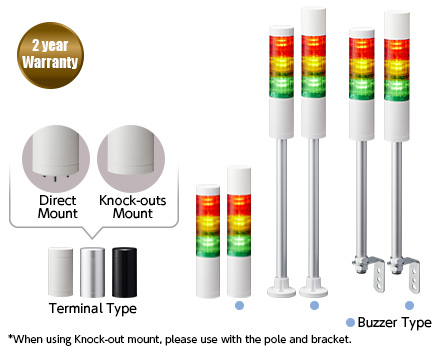

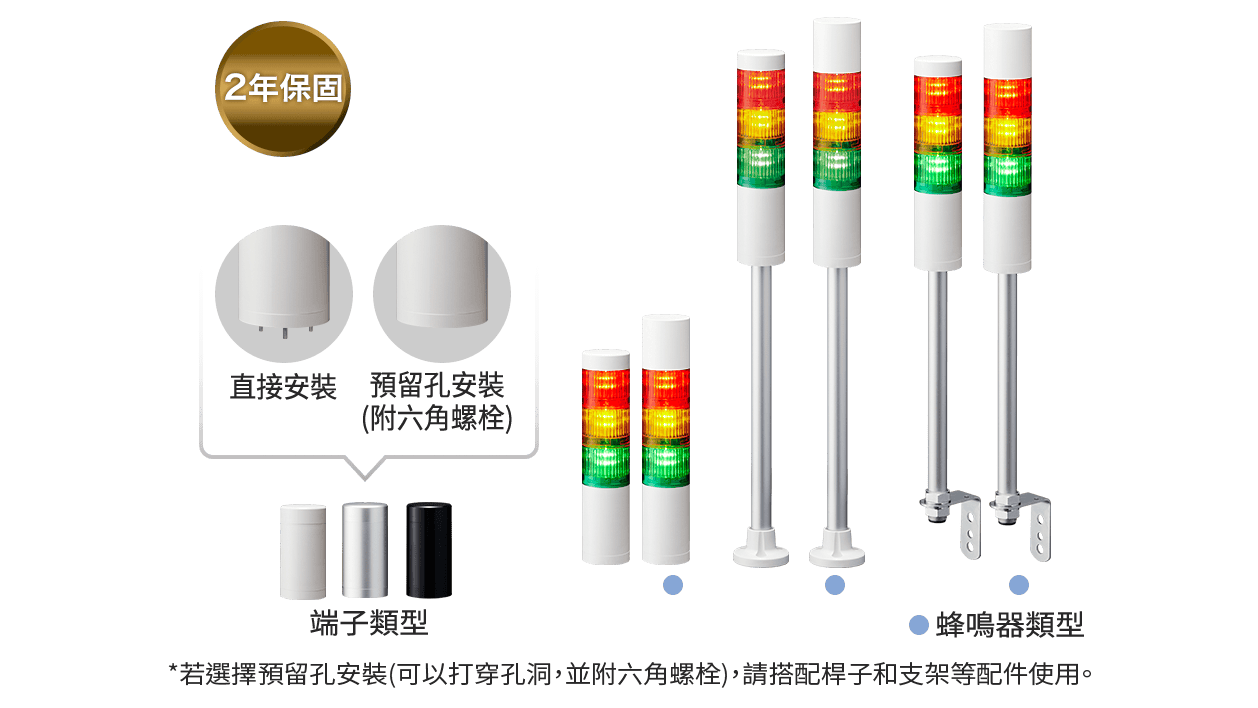

- 模組化手動拆裝設計，可依照現場需求使用所需燈色、 蜂鳴或是安裝模式輕鬆客製化
- 簡潔俐落的外型及具備 IP65 防護等級的堅固機身結構，可在嚴苛環境下發揮絕佳功能。
- 電壓選擇DC12V 及DC24V。
|使用溫度範圍||-20℃ - +50℃|
|使用濕度範圍||90% RH 以下，無凝結|
|儲存溫度範圍||-30℃ - +60℃|
|儲存濕度範圍||90% RH 以下，無凝結|
|防護等級*1||IP65(IEC 60529) / NEMA TYPE 4X, 13|
|絕緣電阻||DC500V 時，電源輸入線及機體間大於 1MΩ|
無絕緣破壞現象 (M2：每分鐘AC 1500V)
|閃爍次數||60 ±2 閃爍次數 / 分鐘|
LR5 DC12V 通常為80dB
|環境條件||第 4 種蜂鳴器聲，1公尺距離所有方向|
|蜂鳴器聲||4 種模式*2第 1 種：快速間歇聲|
第 2 種：連續聲
第 3 種：快速高低音
第 4 種：警報聲
|電晶體輸出||NPN / PNP|
|符合性標準||●UL 508, CSA-C22.2 No.14|
●FCC 第 15 部分，子部分 B Class A
●RoHS 指令 (EN IEC 63000)
●EMC 指令 (EN 61000-6-4, EN 61000-6-2)
●KC (KN 61000-6-4, KN 61000-6-2)*3
*1：LJ 型為 IP54 *2：視 DIP 開關設定而定 *3：KT 及 M2 LJ 型除外
|耗電量 / 消耗功率||標準||0.04A/1W|
|耗電量 / 消耗功率||標準||0.04A/1W|
