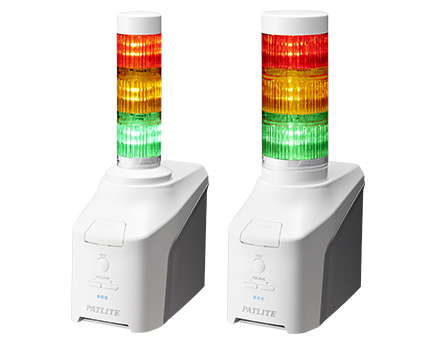

MP3雲端網路監控信號燈
NHV4 / NHV6

可透過視覺、聽覺等即時警示通知。 更擴充各式硬體、軟體功能,讓您選擇最合適的型號,在應用中發揮到百分之百的作用。

  • 網路產品
  • 乙太網路
  • IO控制
  • 信號燈
  • Φ40(NHV4)
  • Φ60(NHV6)
  • 長亮
  • 閃爍
  • 警示音
  • MP3語音
  • 88dB
  • 室內
  • IP20
  • MP3雲端網路監控信號燈 NHV4 / NHV6

產品特點

【軟體】

  • 支持各種網路協議。
    即時通報網路設備和系統的事件和異常,透過光、聲音和語音。
  • 支持 HTTPS、SNMP v3、SSH 等安全協議。安心進行安全通訊。
  • 此裝置配備“文字轉語音(TTS)”功能,可將文字資料轉換為語音。
    文字資訊可轉換為語音並註冊,透過指令控制進行即時語音通知。
  • 除了透過 PING 監控進行存活監控外,還配備 SNMP 設備監控功能。
    當主動獲取網路設備的 MIB 資訊並符合設定條件時,透過光和聲音立即通知管理員。
  • 郵件接收檢測
    NHV 裝置存取郵件伺服器,當接收到符合預設條件的郵件時會亮燈或播放訊息。
    NHV 能夠讀取檢測到的郵件內容。(僅限日文/英文/中文)
  • 為了郵件檢測和雲端控制,NHV 需要連接網際網路。
    您可以輕鬆在 NHV 瀏覽器畫面上單擊按鈕檢查網際網路連接狀態。
  • 我們開發了一個“郵件檢測設定應用程式”,用戶可以按照螢幕指示配置郵件設置。(檔案下載
  • PLC 連結功能
    此裝置能夠與可編程邏輯控制器(PLC)直接連接,簡化在製造現場異常通知的過程。(兼容 Mitsubishi PLC 使用 MC 協議和 Omron PLC 使用 FINS 協議)

【硬體】

  • 語音通知。
    結合預定義的訊息和輸入設置傳達詳細資訊。
  • 透過 LINE OUT 端子廣播到整棟建築,該端子可連接到廣播設備如 PA 系統、擴音器或外接喇叭。
  • 4 個數位輸入和 2 個數位輸出。(僅限 NHV-D/NHV-DP)
  • 支持 PoE 電源供應(僅限 NHV-DP)

【型號特點】

NHV(標準型號)
基本 NHV 系列型號。
高網路安全性。
NHV-D(D 型號)
標準 NHV 型號加上 4 個數位輸入和 2 個數位輸出。
使連接各種數位設備變得簡單。
NHV-DP(DP 型號)
NHV-D 加上 PoE 電源能力。
使用 PoE 交換機可減少佈線安裝。(符合 IEEE802.3at 標準)
型號 NHV NHV-D NHV-DP
調光功能
雲端控制
發送 HTTP
音頻播放(MP3)
TTS(文字轉語音)
數位 I/O(4 輸入/2 輸出)
PoE 電源 ※符合 IEEE802.3at 標準
郵件檢測功能

【多種安裝方法】

 可選配件還提供壁掛支架。

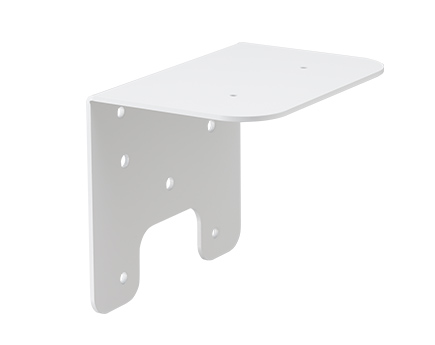

  壁掛支架  :NH-001

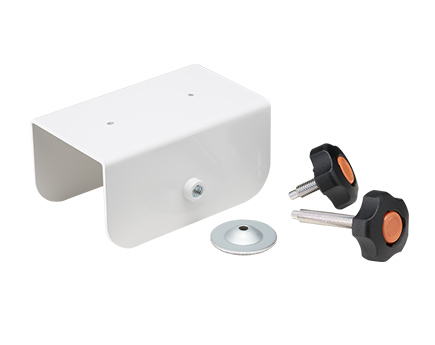

  隔板安裝支架  :NH-002

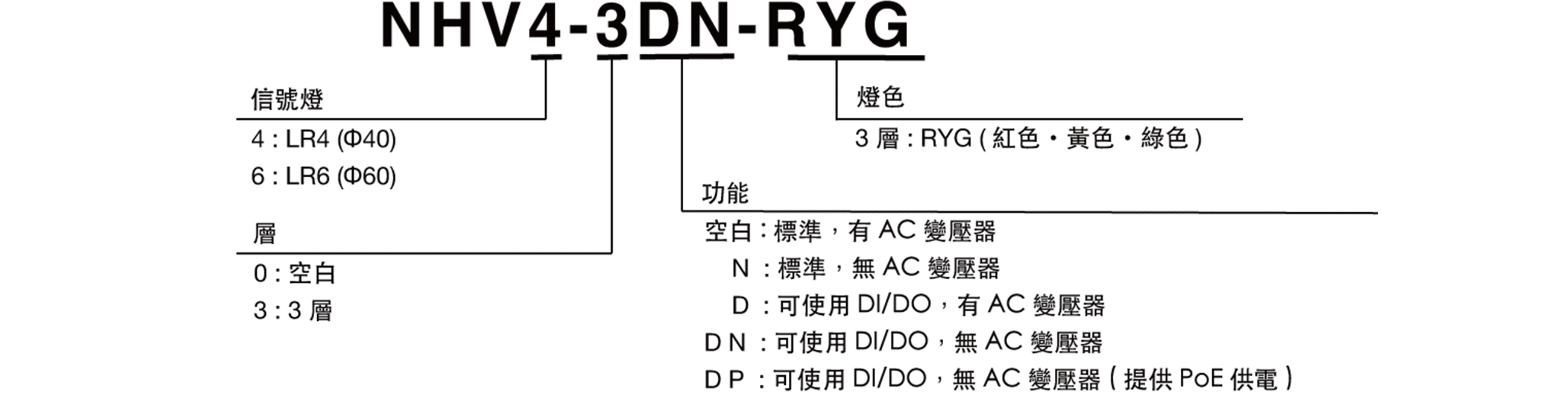

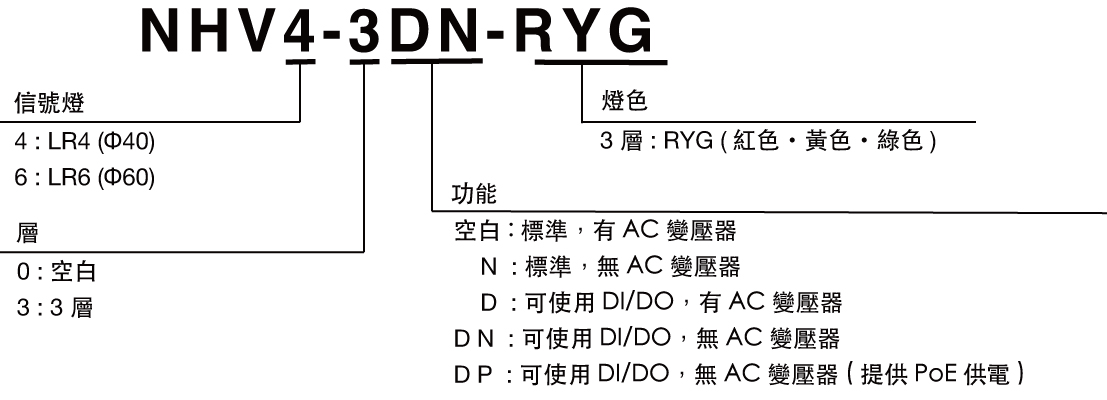

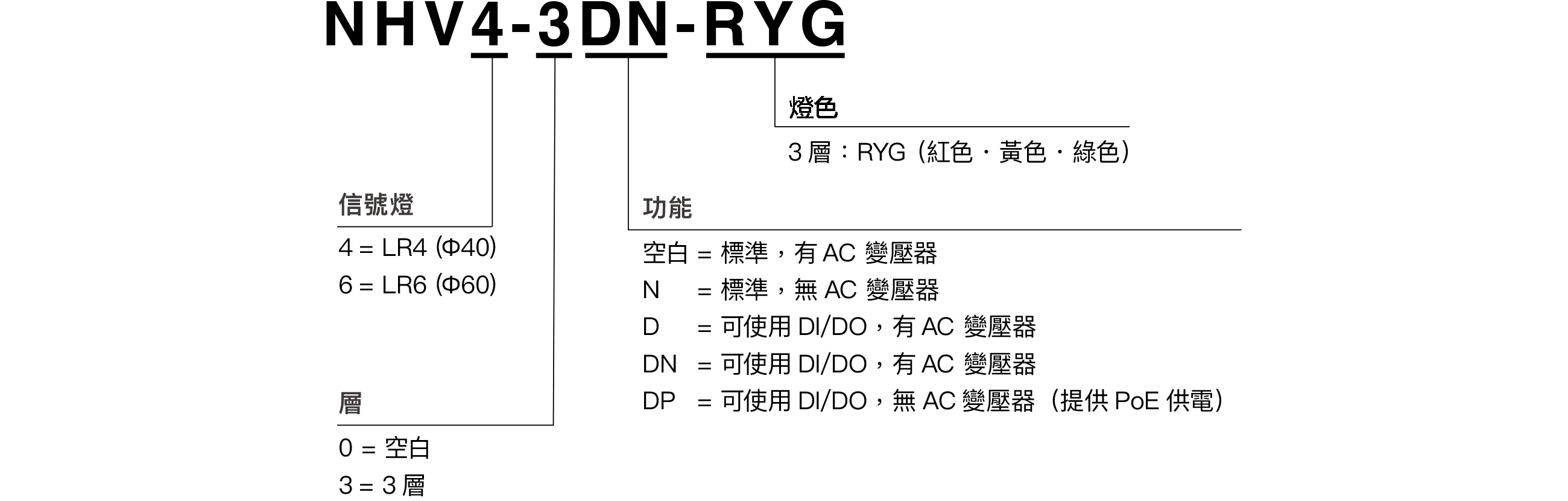

Model Code
