USB 總線電源和輕鬆控制 多色:可顯示7種顏色,滿足您的應用需求。

  • 網路產品
  • USB
  • 觸控感應器(Touch Sensor)
  • Φ56
  • 警示燈
  • 長亮
  • 警示音
  • 65dB(S□)
  • 88dB(W□)
  • 室內
  • IP20(S□)
  • IP65(W□)

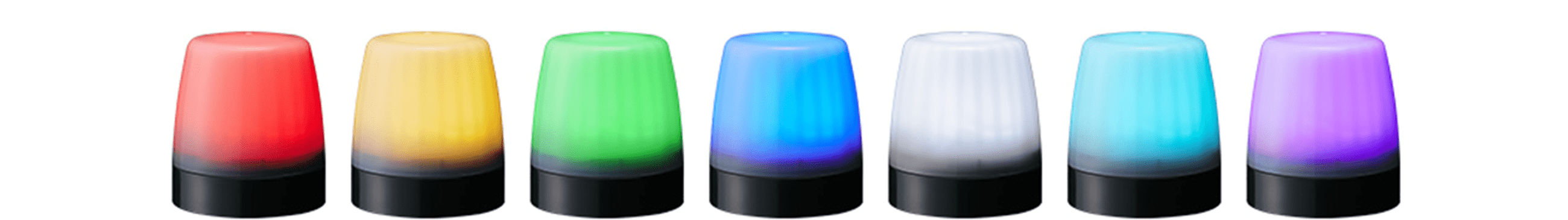

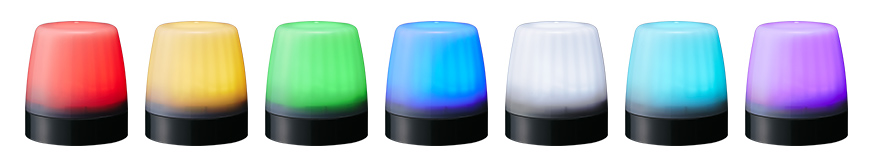

  • 一燈多色(7色)

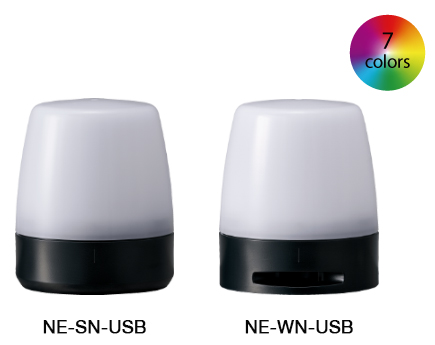

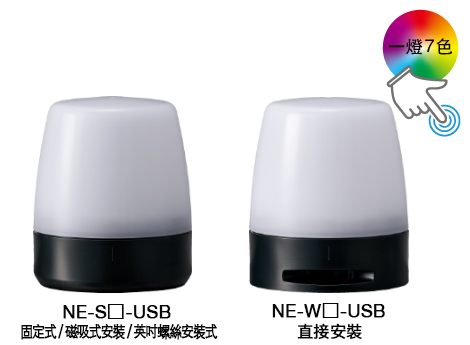

  • USB型一燈七色指示燈 NE-USB
  • 使用PC Bace時,只需透過一條USB電纜線即可控制,同時供電。
  • 可以透過觸摸指示燈上方的觸控感應器( Touch Sensor)來傳送訊號控制位置,代替開關功能。
  • DLL可輕鬆編輯。
  • HID class設備無須安裝專用驅動程式即可使用。
  • 乳白色燈罩所發出的柔和光線,不刺眼,且警示聲音清晰,無論辦公室或是任何公共場合都適用。

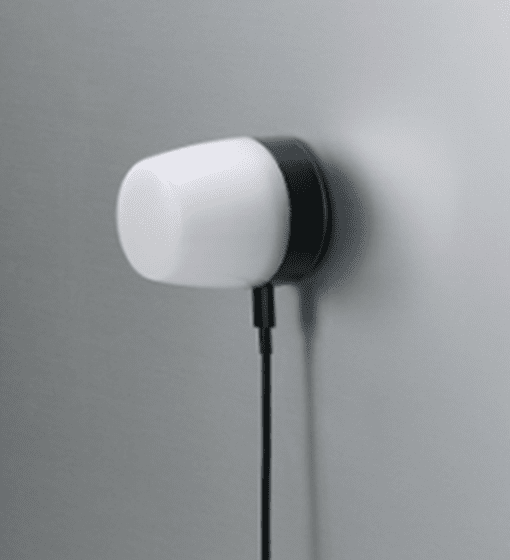

  • 磁吸式安裝方式可以輕鬆安裝在桌面或牆壁上。
  • 提供桿式安裝以及壁掛式安裝等方式。
※USB電纜線請另行購買。 ※通過USB孔連接PC,即可編輯控制各模組。

額定電壓 DC 5V(USB Bus Power)
尺寸 Φ56
防護等級 IP 20 IP 65(直立安装)
安裝範例 snマグネット取付イメージ sn三脚取付イメージ wnNE-002Dイメージ wnポール取付イメージ

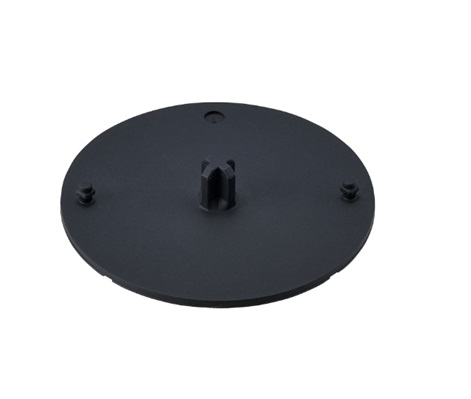

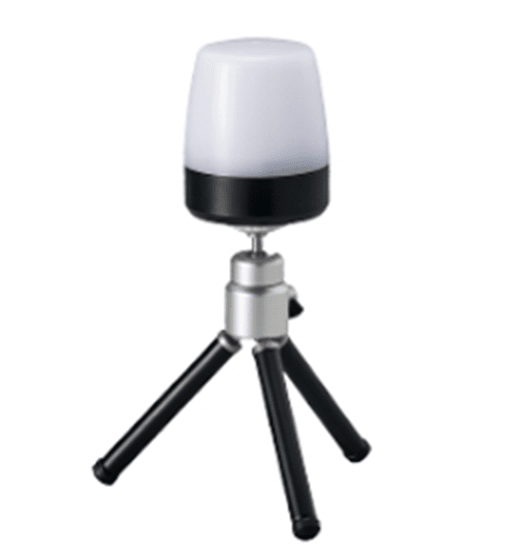

磁吸式安裝 1/4 英吋螺絲安裝式

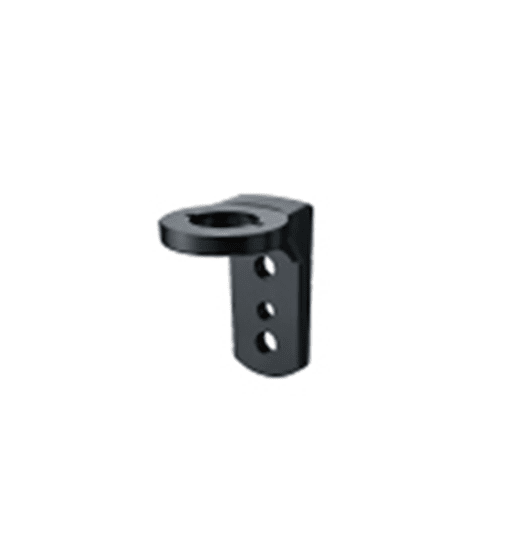

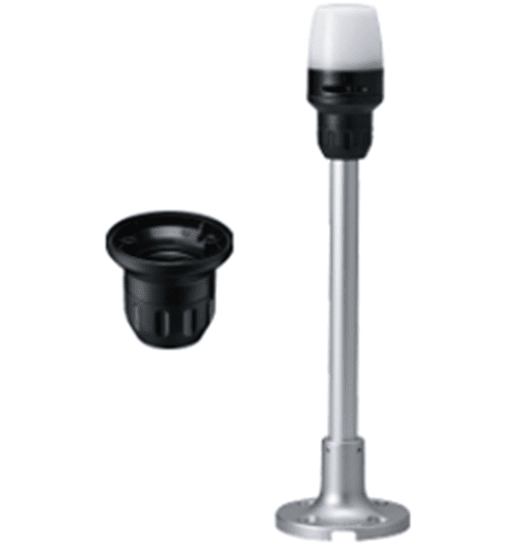

壁掛式安裝支架 桿式安裝
