LR5、LR7專用端子台配線底座
LR5/LR7-KT

可適用於 LR5 (Ø50mm) 及 LR7 (Ø70mm)的直接安裝&桿式安裝端子台接線本體。

  • IO控制
  • 信號燈
  • Φ50
  • Φ70
  • 長亮
  • 閃爍
  • 警報
  • 85dB
  • 90dB
  • 室內
  • IP65
  • LR5、LR7專用端子台配線底座 LR5/LR7-KT
  • 適合為各種客戶客製化信號燈
  • 內建預留孔可輕鬆將 LR5 或 LR7 系列訊號塔從支柱安裝轉換為直接安裝。
  • 簡單拆裝的端子台,讓配線更輕鬆
  • 額定電壓:DC24V
  • 象牙白色、銀色及黑色本體可供選擇。

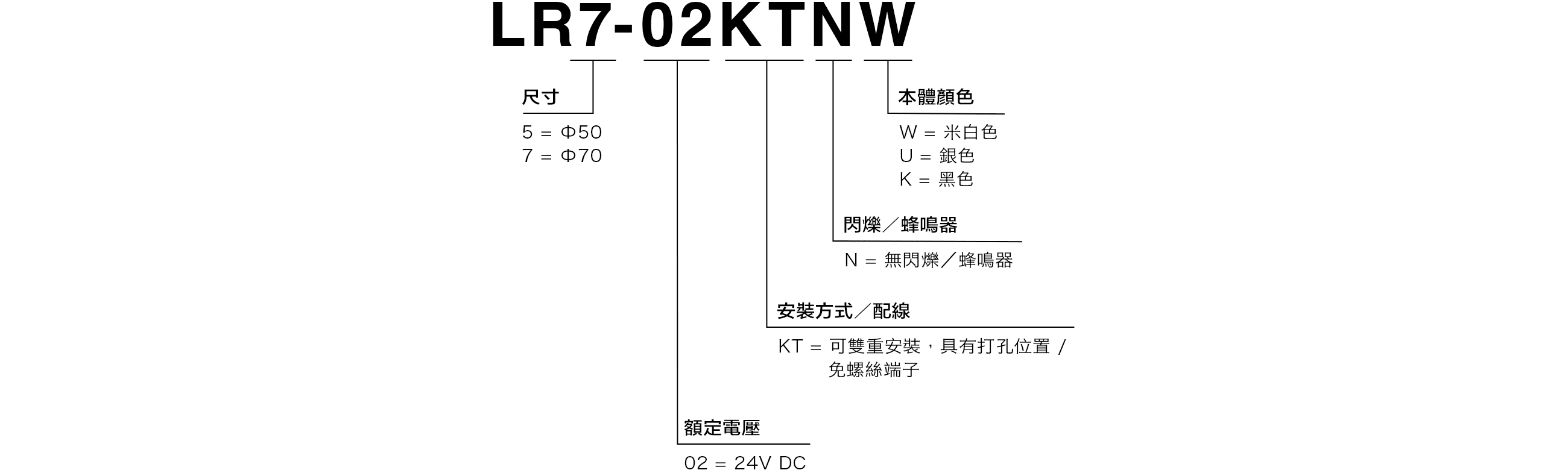

  • 如何選型只包含本體模組。若需其他LED或是蜂鳴器模組請另行加購。
全新可拆式端子可輕鬆接線



規格

使用溫度範圍 -20℃ - +50℃
使用濕度範圍 90% RH 以下,無凝結
儲存溫度範圍 -30℃ - +60℃
儲存濕度範圍 90% RH 以下,無凝結
安裝位置 室內
安裝方向 直立
防護等級*1 IP65(IEC 60529) / NEMA TYPE 4X, 13
絕緣電阻 DC500V 時,電源輸入線及機體間大於 1MΩ
耐受電壓 端子台及機體間每分鐘AC 500V,無絕緣破壞現象 (M2:每分鐘AC 1500V)
閃爍次數 60 ±2 閃爍次數 / 分鐘
音量 LR5 通常為85dB
LR7 通常為90dB
聲音減低*2 ab.降低 -10dB
環境條件 第 4 種蜂鳴器聲,1公尺距離所有方向
蜂鳴器聲 4 種模式*2第 1 種:快速間歇聲
第 2 種:連續聲
第 3 種:快速高低音
第 4 種:警報聲
電晶體輸出 NPN / PNP
符合性標準 ●UL 508, CSA-C22.2 No.14
●FCC 第 15 部分,子部分 B Class A
●RoHS 指令 (EN IEC 63000)
●EMC 指令 (EN 61000-6-4, EN 61000-6-2)
●KC (KN 61000-6-4, KN 61000-6-2)*3

*1:LJ 型為 IP54   *2:視 DIP 開關設定而定

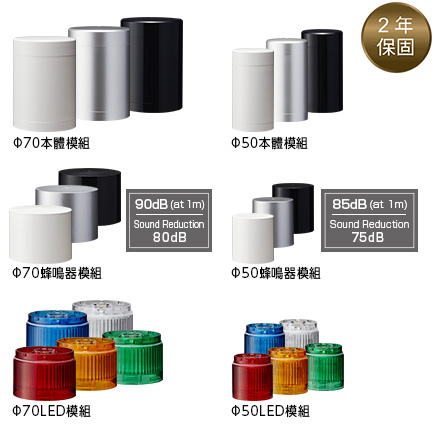

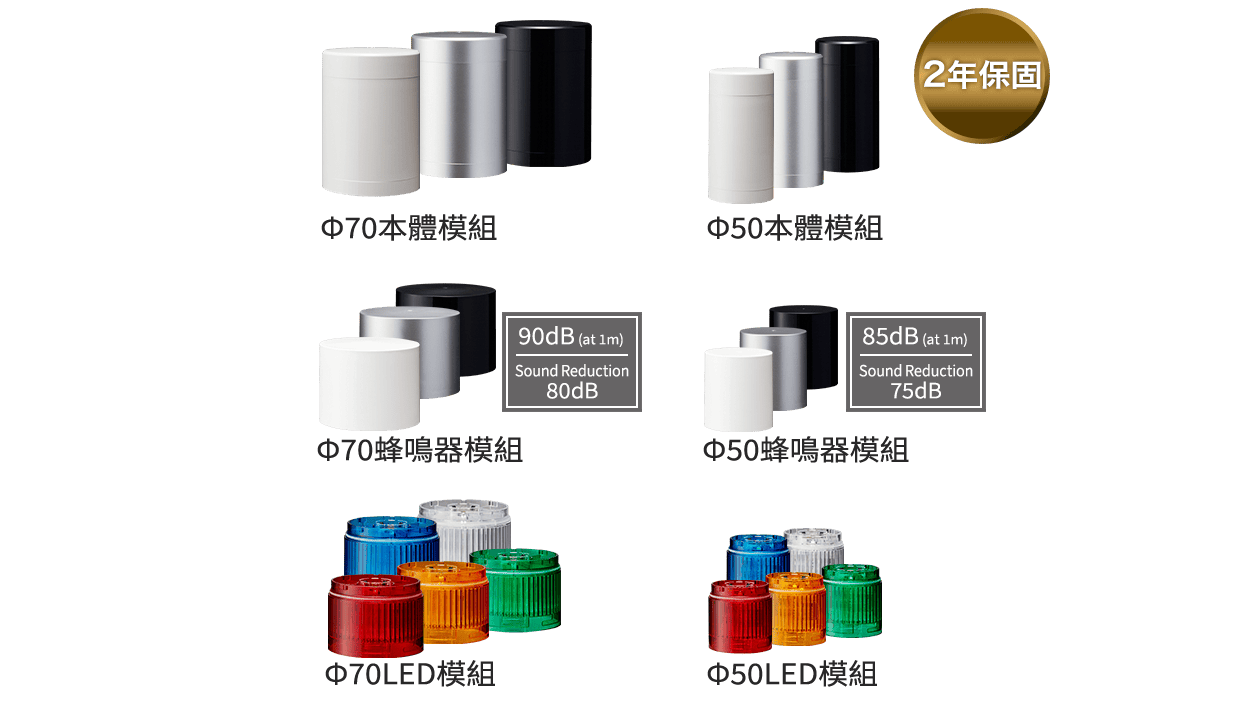

LED 模組規格

燈色 紅色 黃色 綠色 藍色 白色
耗電量 / 消耗功率 通常為 0.04A/1W
最大 0.045A/1.3W



蜂鳴器模組規格

耗電量 / 消耗功率 通常為 0.04A/1W
最大 0.3A/1.3W
