指示燈
NE-A

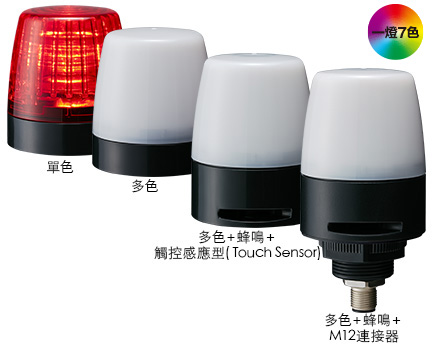

從單色到觸控感應型( Touch Sensor), 全系列ø56直接安裝指示燈

  • 電源控制
  • IO控制
  • Φ56
  • 警示燈
  • 長亮
  • 警示音
  • 88dB
  • 室內
  • IP65
  • IP67
  • 淡藍
  • 一燈多色
  • 指示燈 NE-A

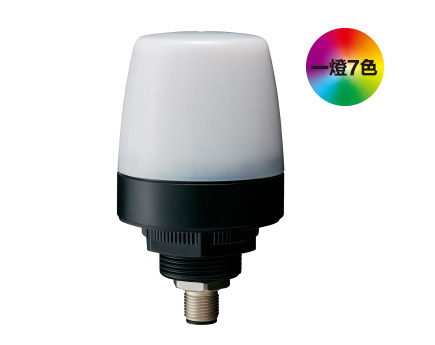

Multi-color model



【多色模式】
  • 除了純燈的一般型,現在還有觸控感應型( Touch Sensor)可供選擇。在指示燈頂部內置電容式觸控感應器( Touch Sensor)。您可以通過觸摸指示燈頂部代替開關,向主機傳送指令。可活用於例如,工作完成的輸入或是呼叫管理員等直覺操作。
  • 可以根據應用從7種顏色中選擇顯示顏色。 通過使用容易想像的顏色,例如「發生異常」使用紅色,或是「工作進行中」使用綠色,讓您可以更直觀地判斷、回應情況。
  • 採用容易辨識的乳白色燈罩,輕鬆區分燈號。並以柔和的光線通知您各項狀態指令。
  • 提供M12連接器規格,方便接線



Single color Model



【單色模式】
  • 採用新開發的反射鏡,實現獨特的發光效果。 用以更明亮、清晰的燈光警示效果。
  • 無螺絲接線端子,可在不鎖螺絲的情況下確實、簡單的安裝。減少不必要的配線工程以及人為疏失。



產品規格

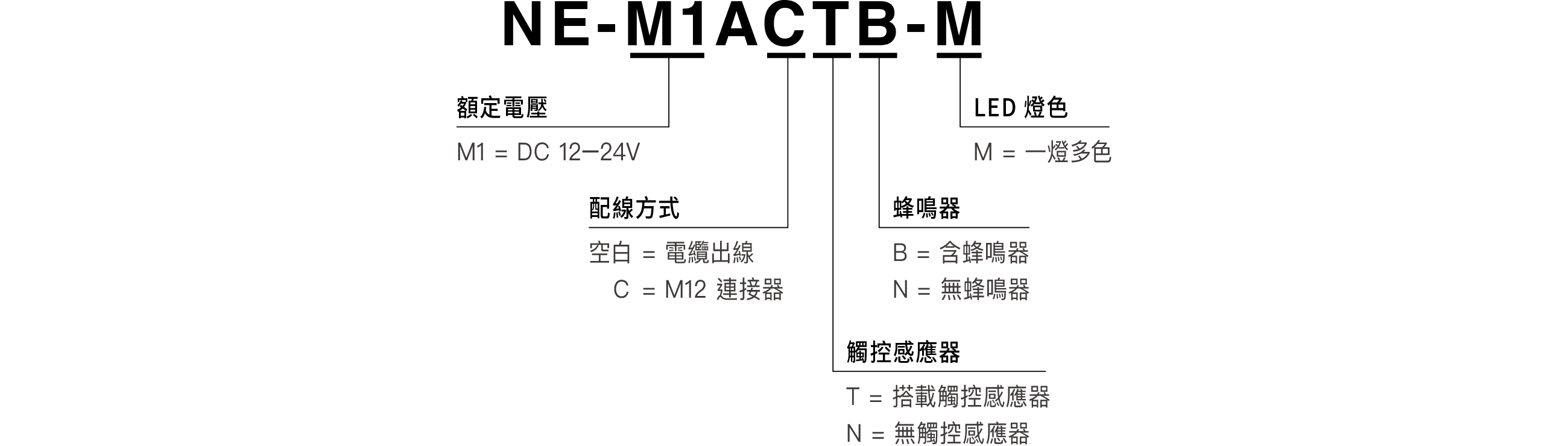

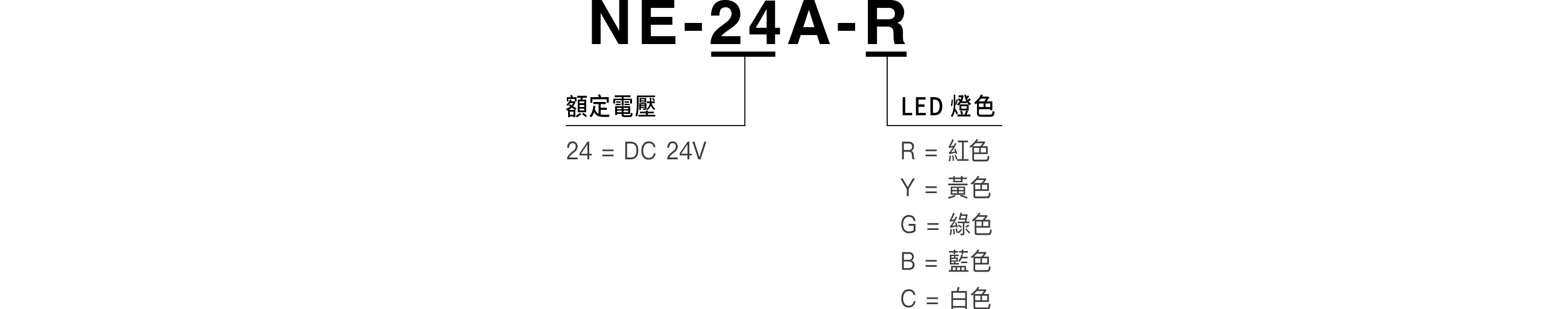

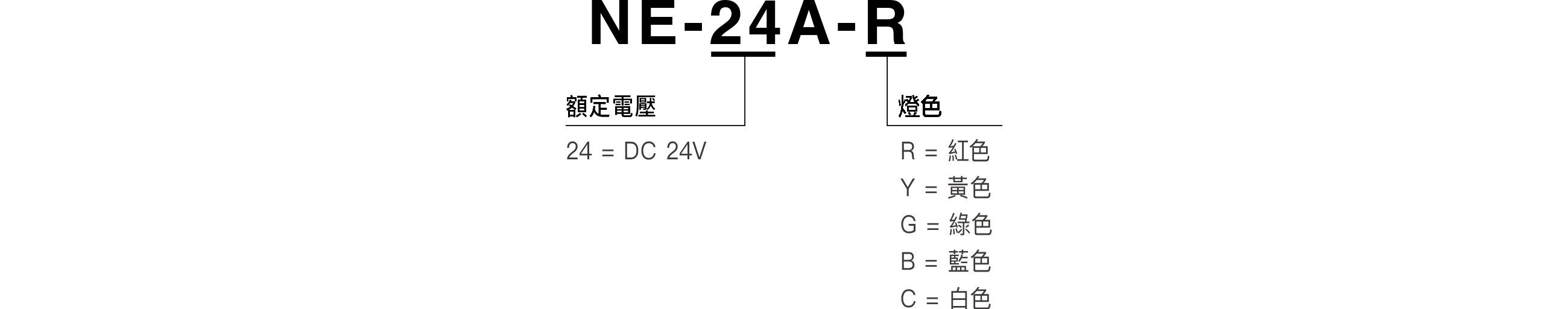

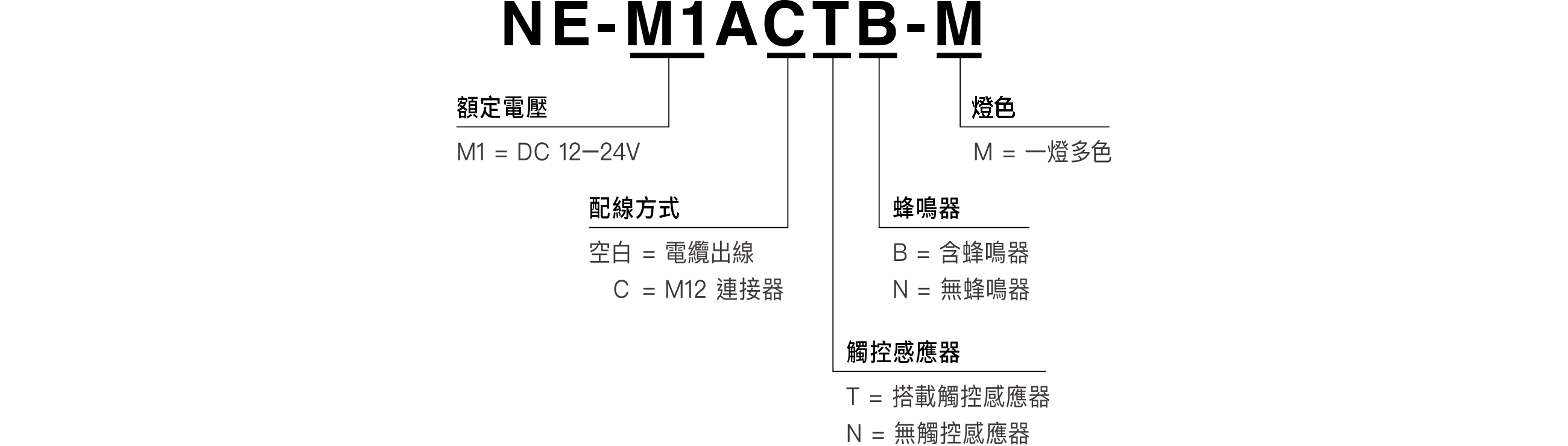

型號 NE-24A-□
□:R/Y/G/B/C
NE-M1ANN-M NE-M1ANB-M NE-M1ATB-M NE-M1ACNB-M
尺寸 Φ56mm
額定電壓 24V DC 12-24V DC
安裝位置 室內
安裝方向 全方向
防護等級 IP65
NEMA TYPE 4X, 13
IP67
NEMA TYPE 4X, 13
IP65
NEMA TYPE 4X, 13
IP65
燈色 紅 / 黃 / 綠 /
藍 / 白
一燈七色(紅、黃、綠、藍、白、淡藍、紫)
聲壓級 - 88dB
連續音 或 間歇音
燈光模式 長亮 長亮/閃爍

長亮 / touch sensor
(觸碰感應器)

長亮
接線圖 免螺絲接線端子 電纜 (2m) M12連接器
