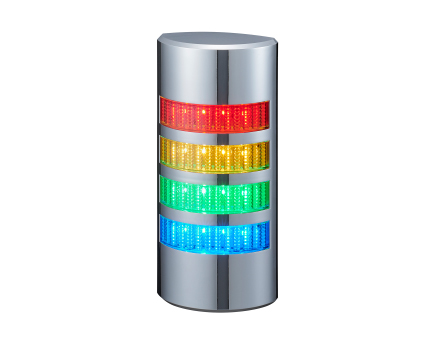

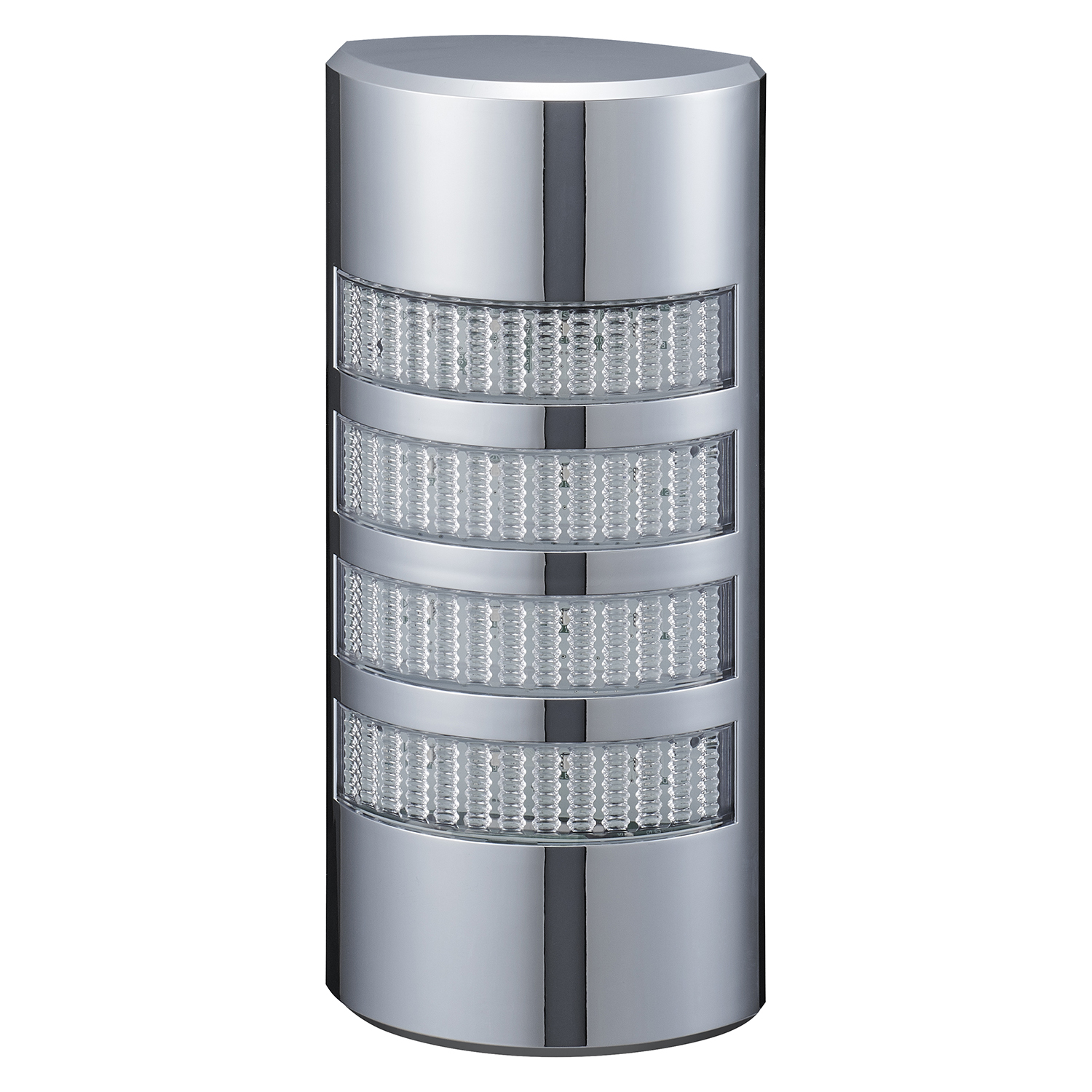

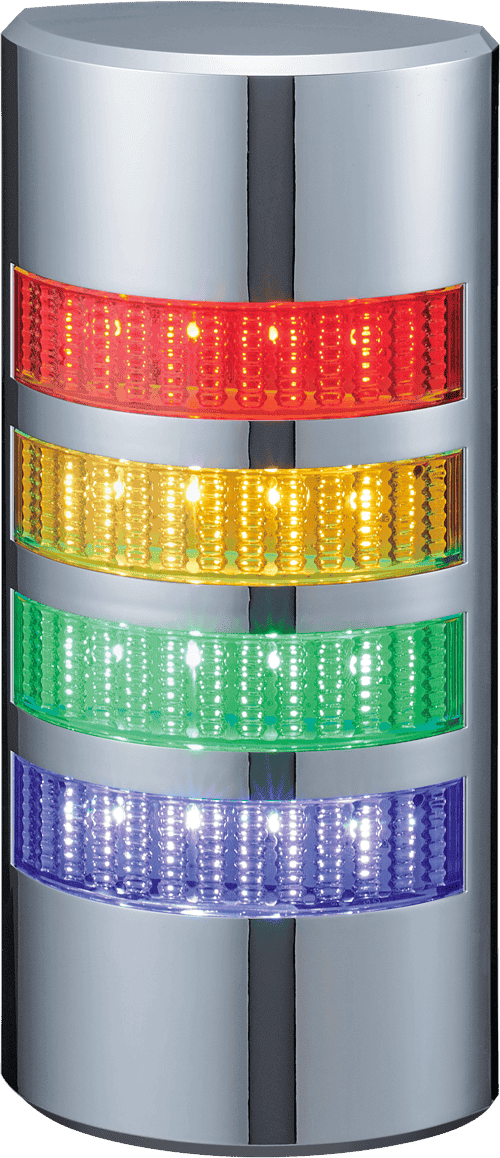

網路半月型壁掛式信號燈(LAN)
WE-LAN

可使用LAN通訊的半月型壁掛式信號燈。 多種設定以及9種燈色,讓辨識度大大提升

  • 網路產品
  • 乙太網路
  • 信號燈
  • W90×D37.5
  • 長亮
  • 閃爍
  • 警示音
  • 88dB
  • IP23
  • 萊姆
  • 淡藍
  • 粉紅

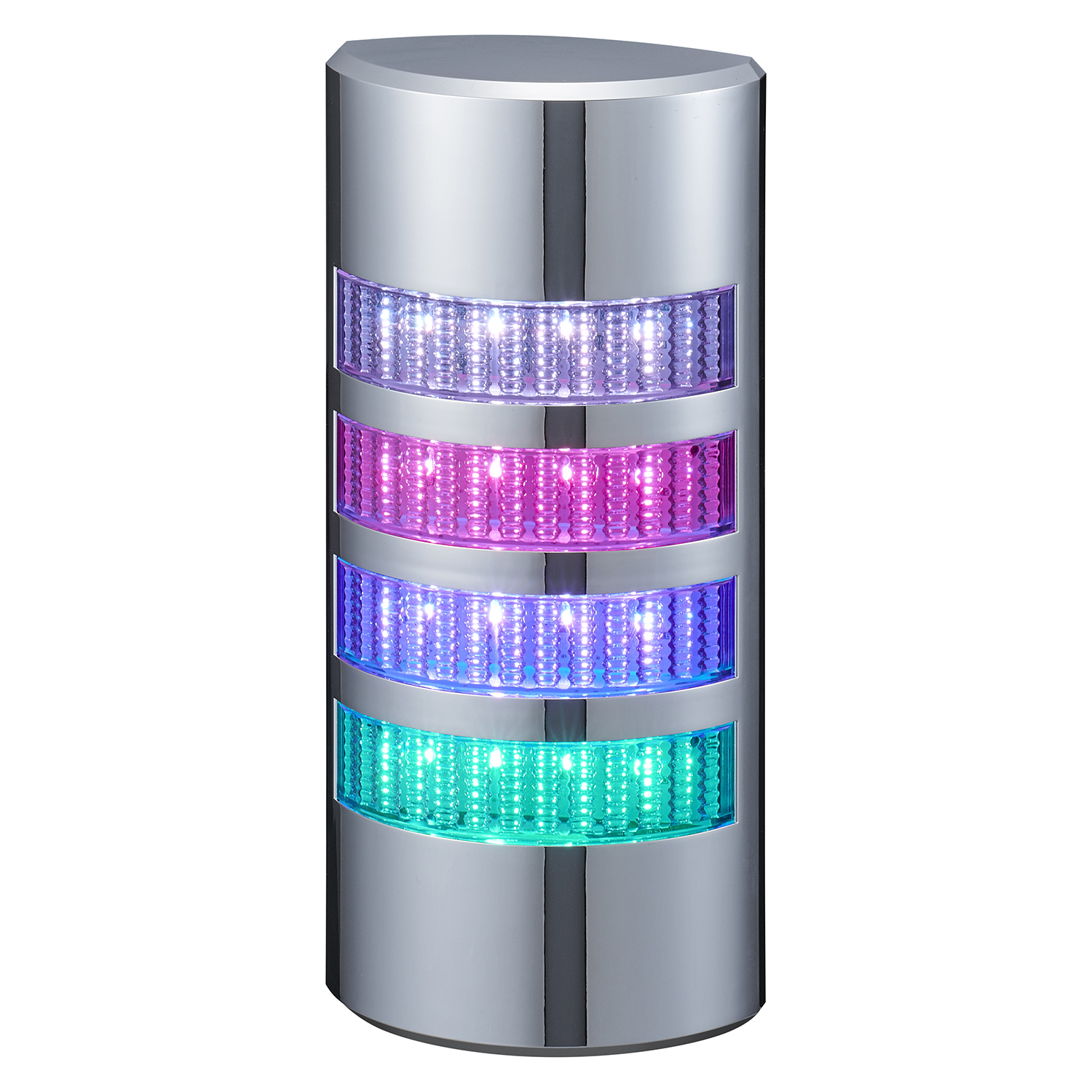

  • 一燈多色(9色)
  • 網路半月型壁掛式信號燈(LAN) WE-LAN

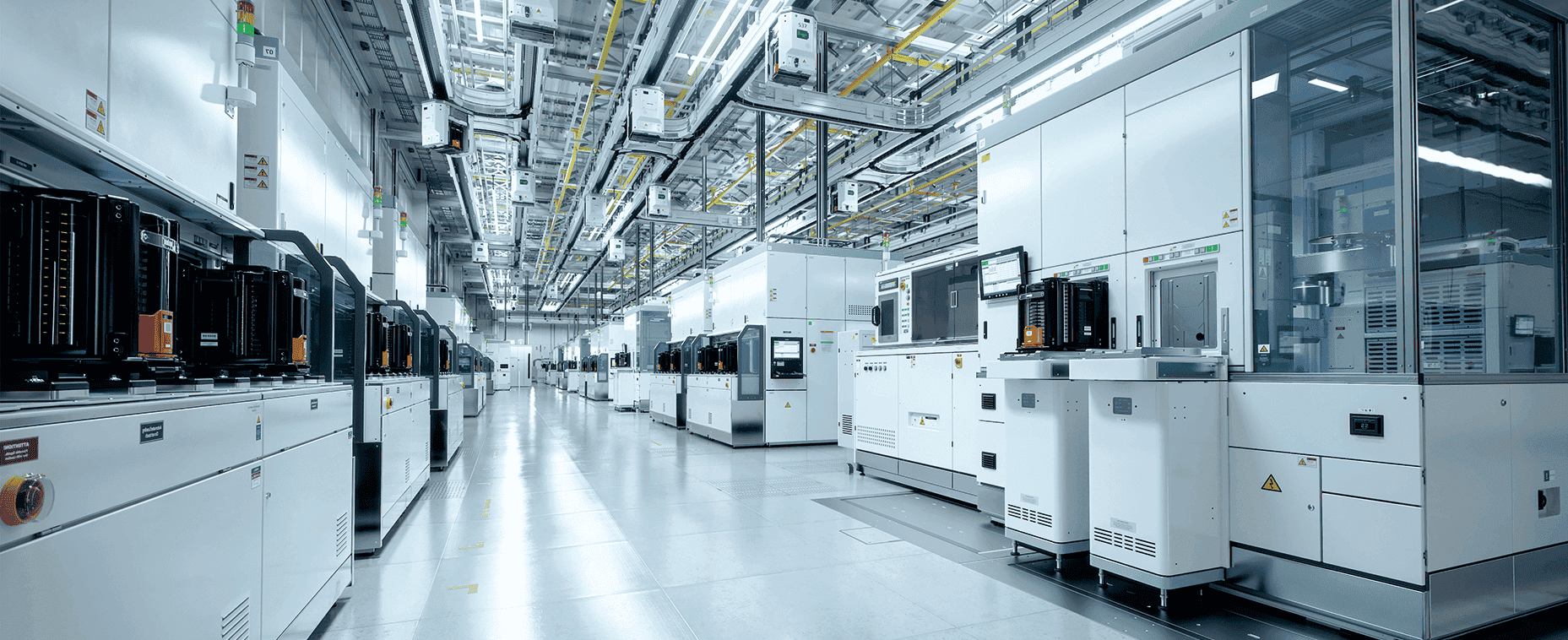

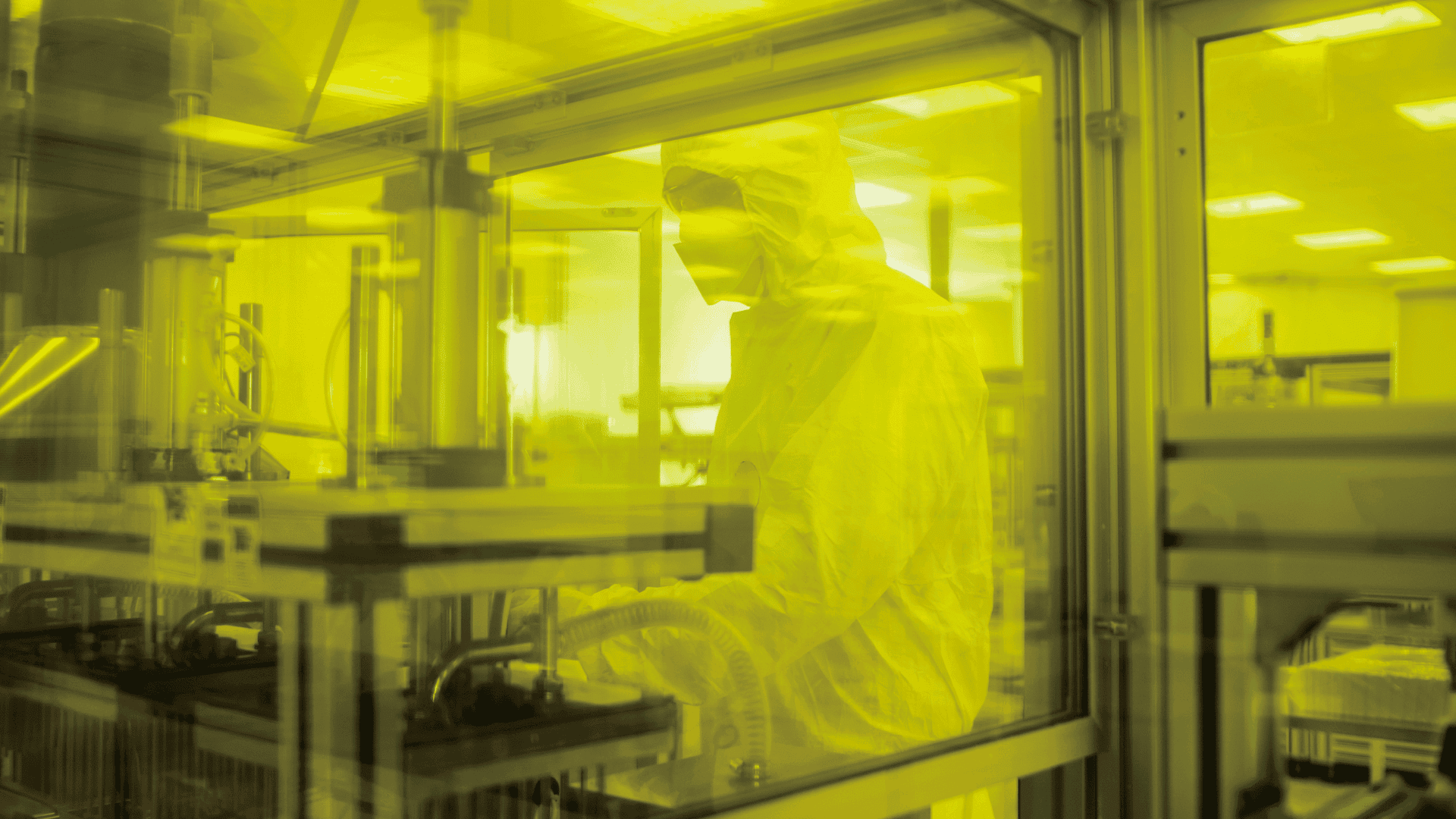

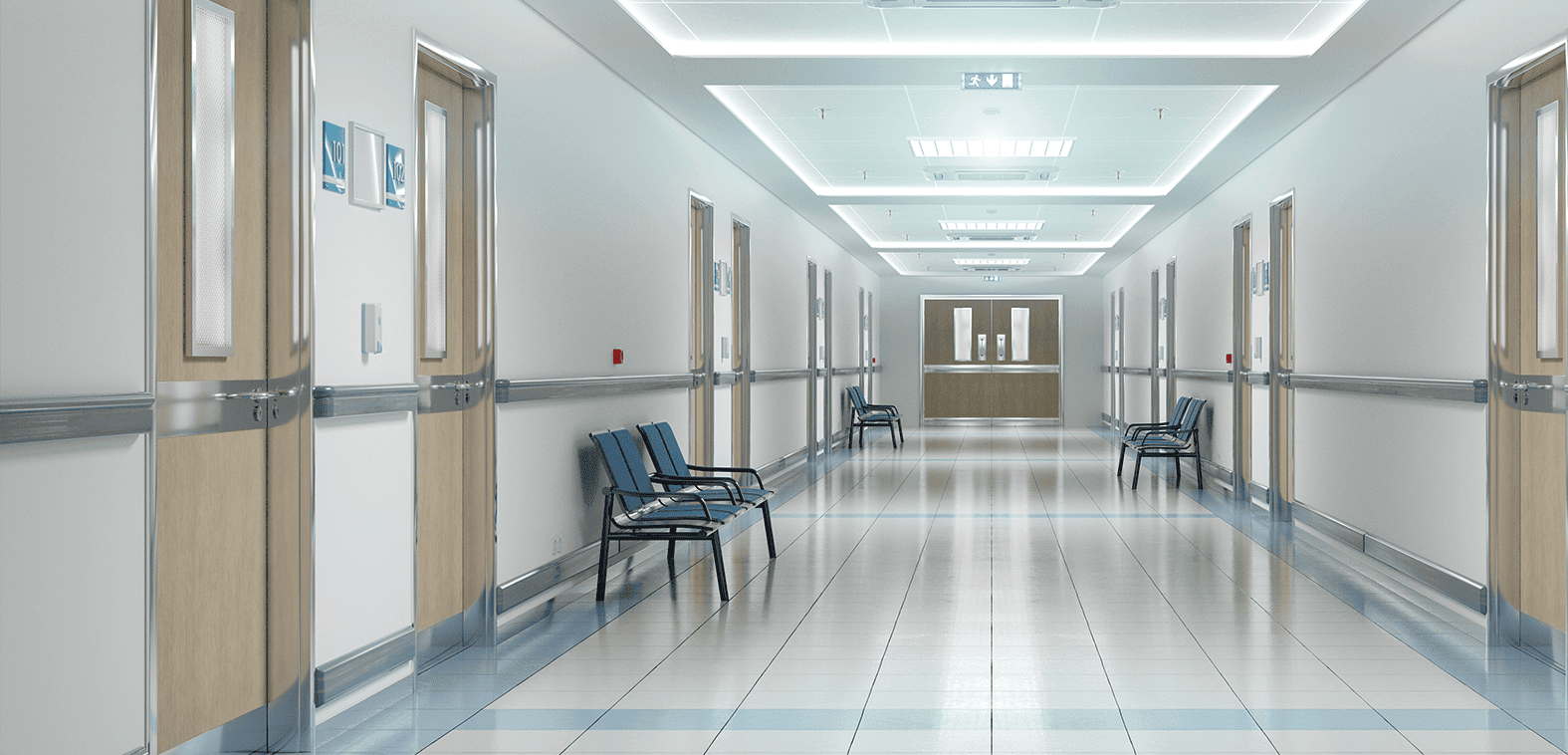

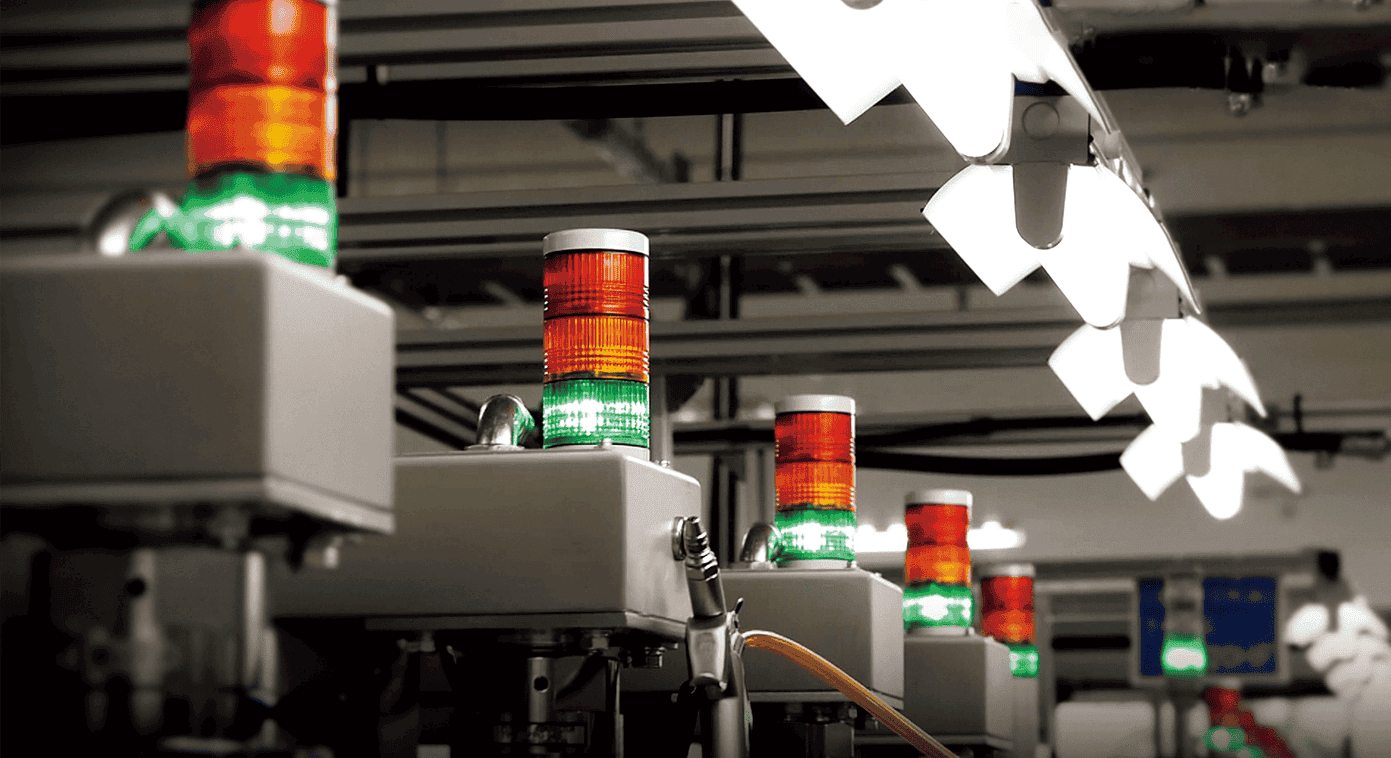

  • 多種應用可針對不同環境選擇
    (醒目模式、9色可選、流動模式、漸變模式)

    想知道各項燈光模式實際影片,請點這裡
    特長

  • 易於連接,安心使用

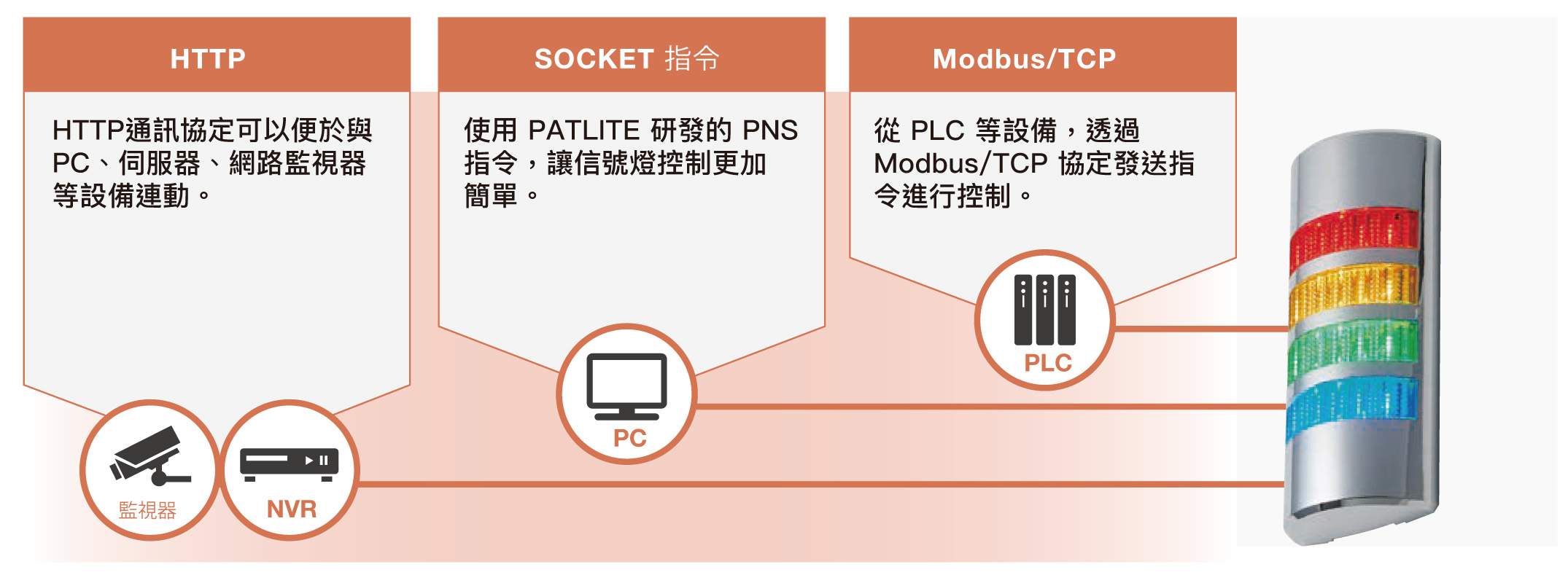

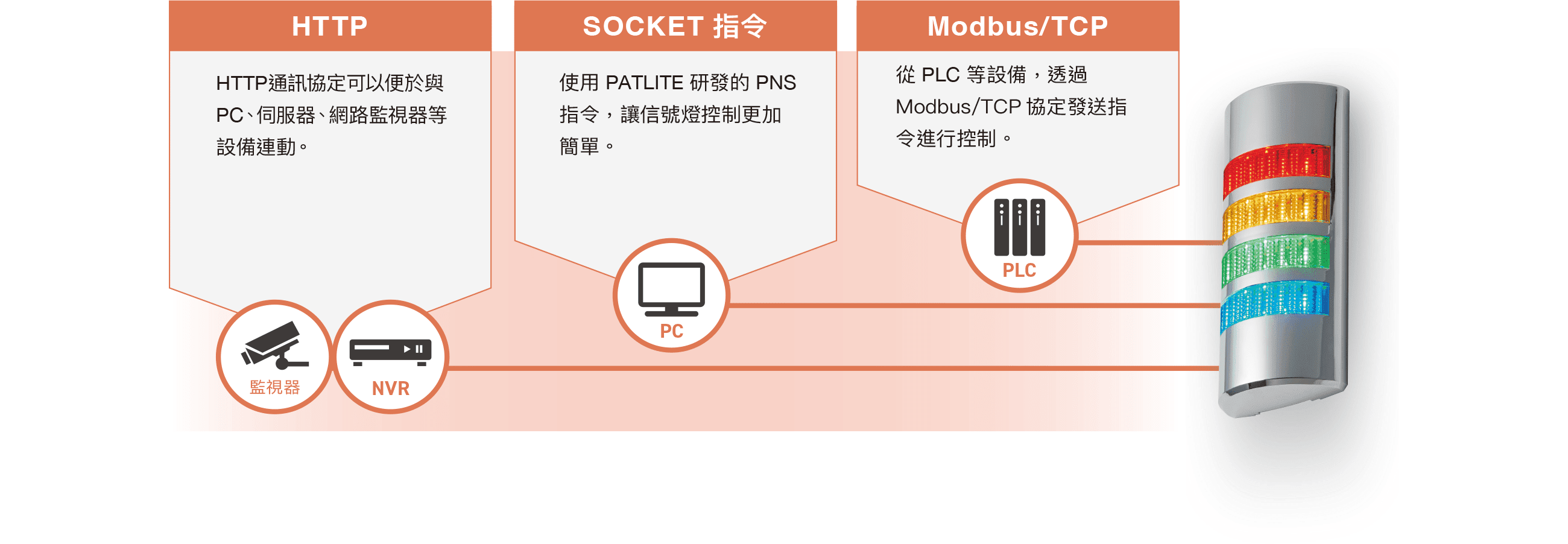

    適用多種網路協定HTTP、Modbus/TCP、SOCKET等
    プロトコル

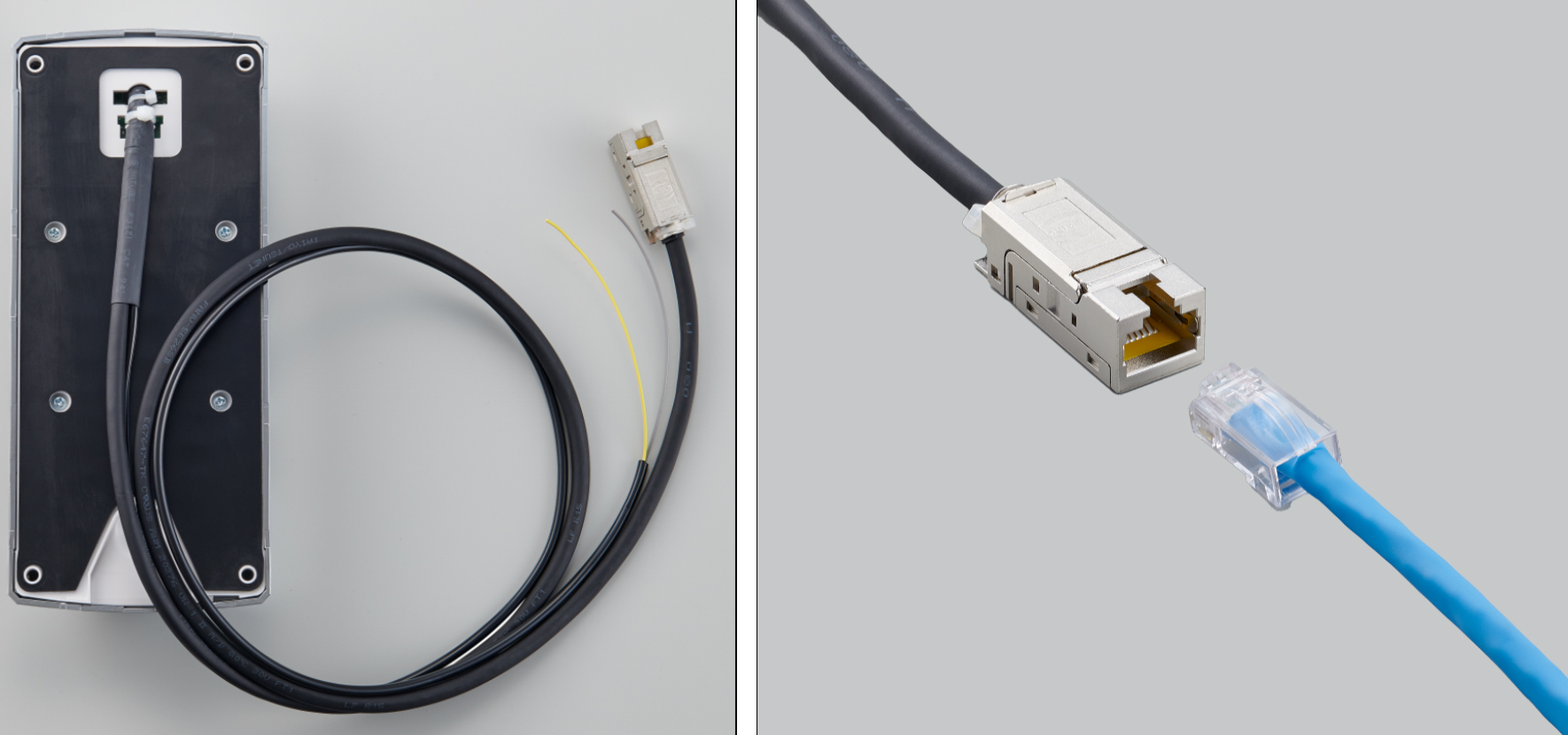

  • 使用WE-LAN上的RJ-45接頭連接通訊

    接続

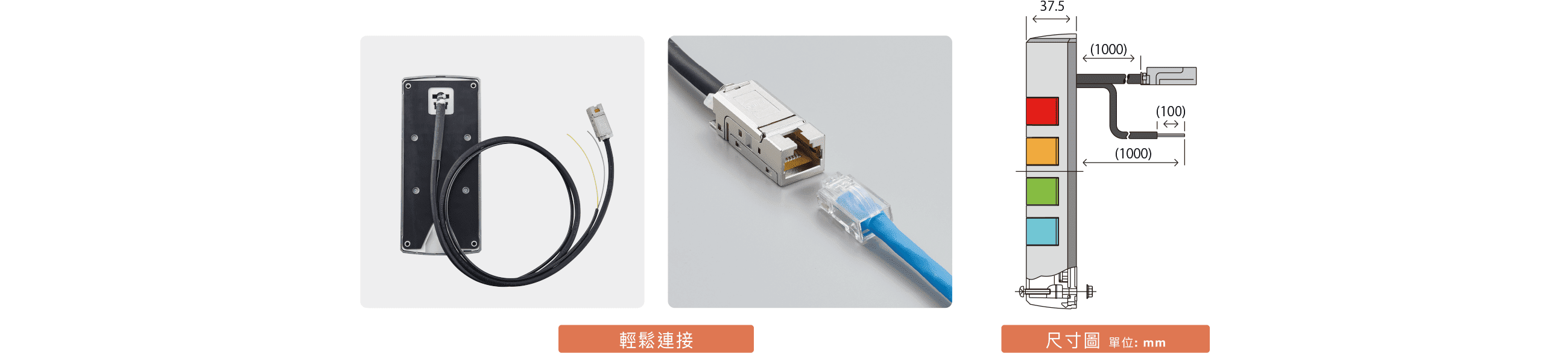

  • 37.5mm超薄機身,追求與機械、設備絕佳的一體感



  • 可透過IP位置進入伺服器後台進行各種細項設定

  • 多種國際認證,使用更加安心

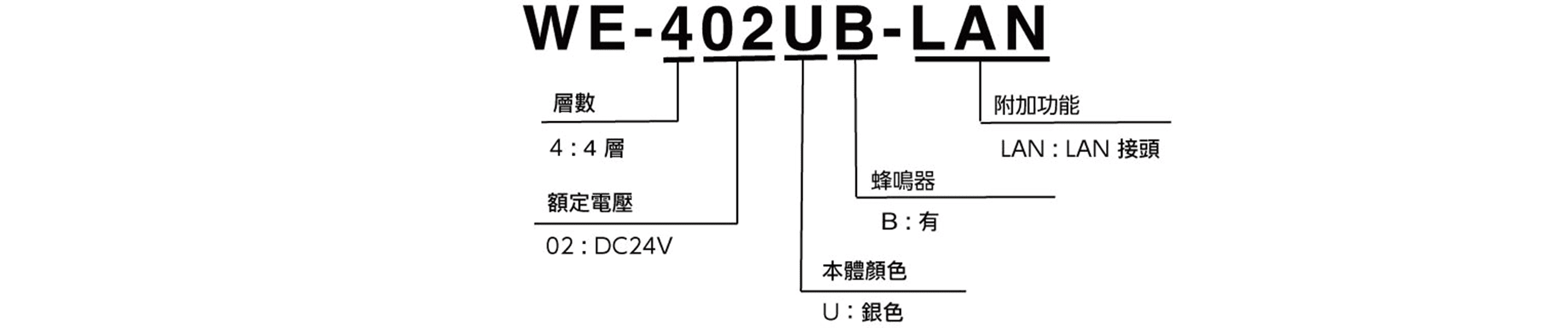

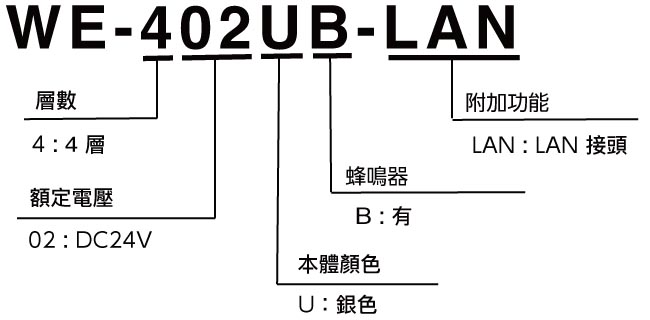

如何選購


モデルコード

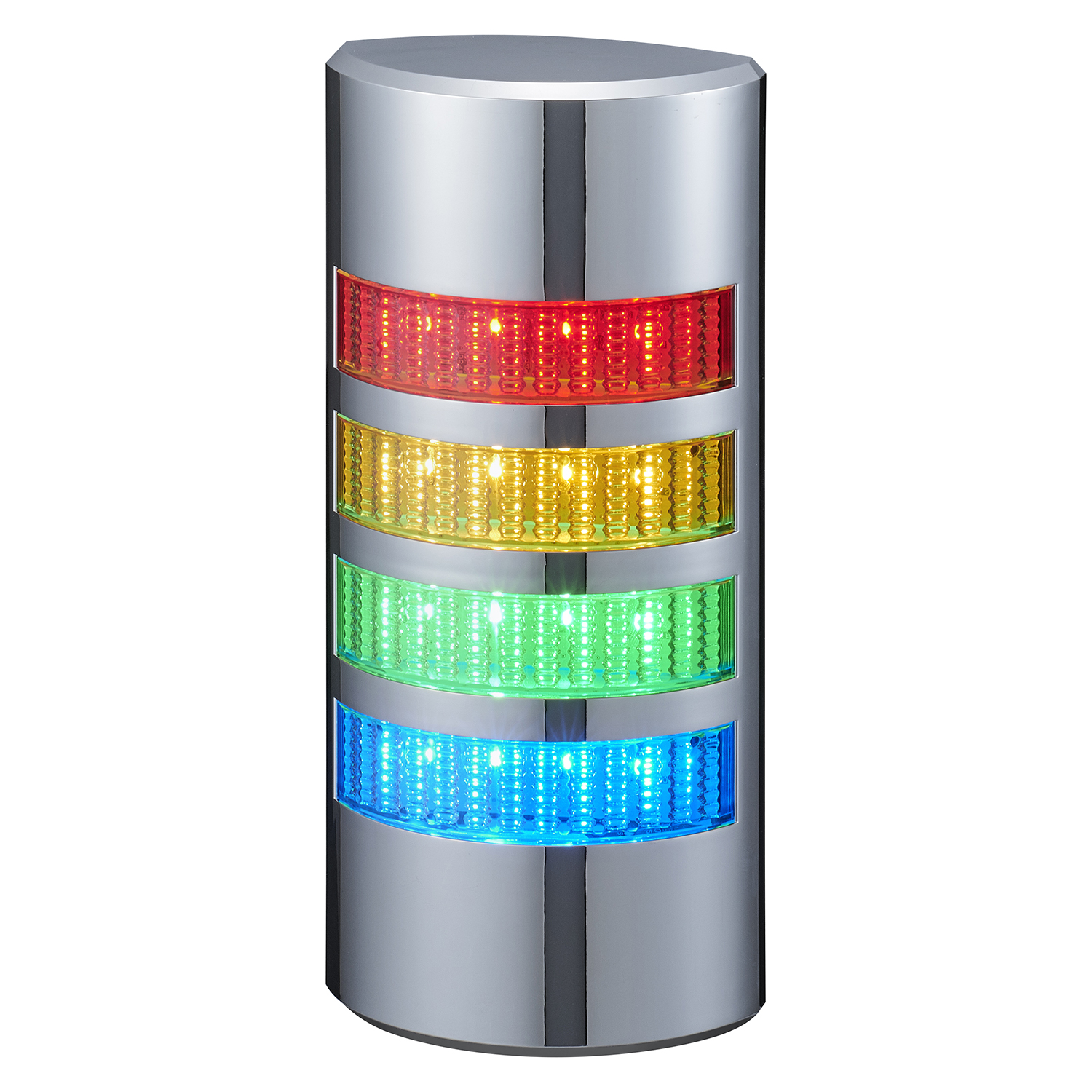

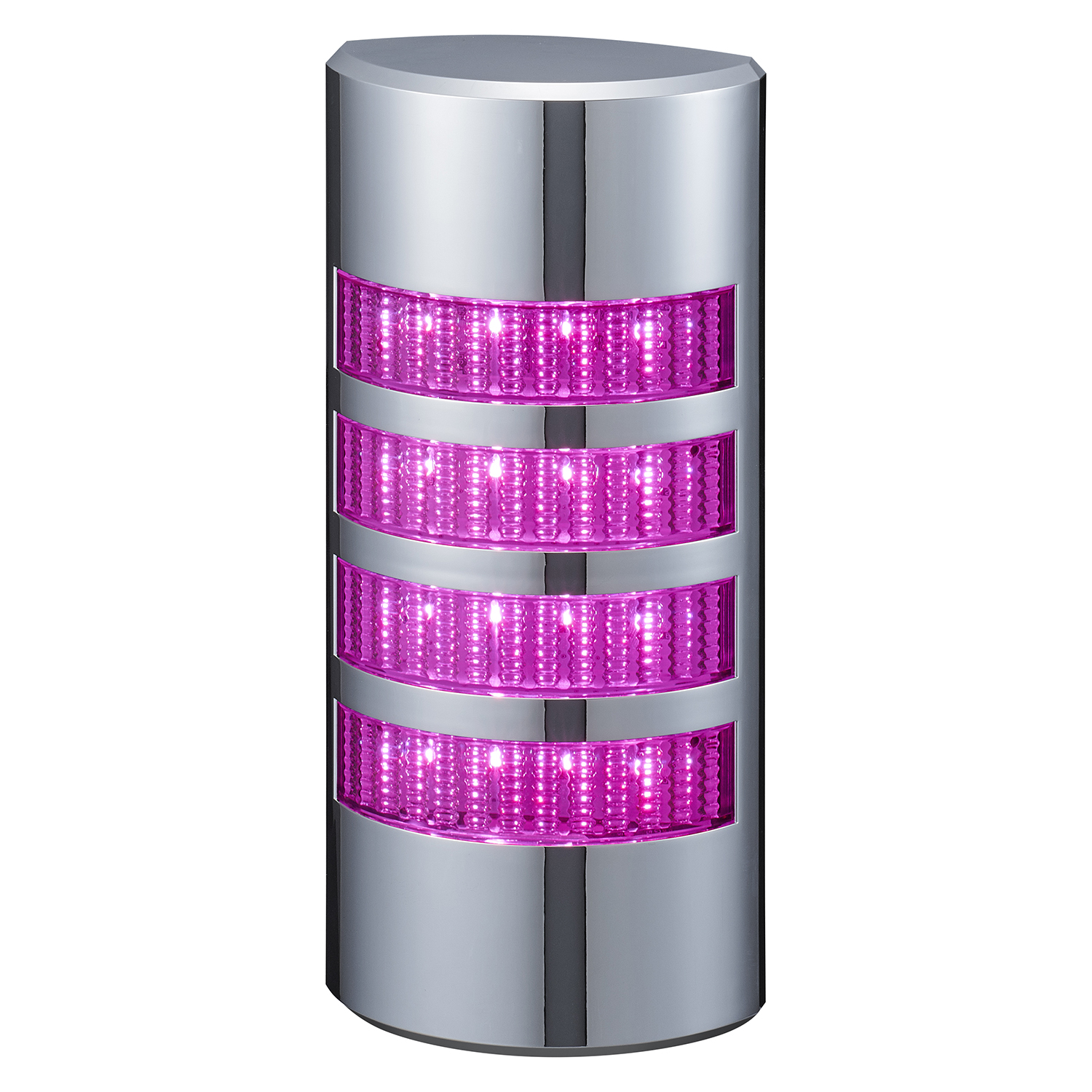

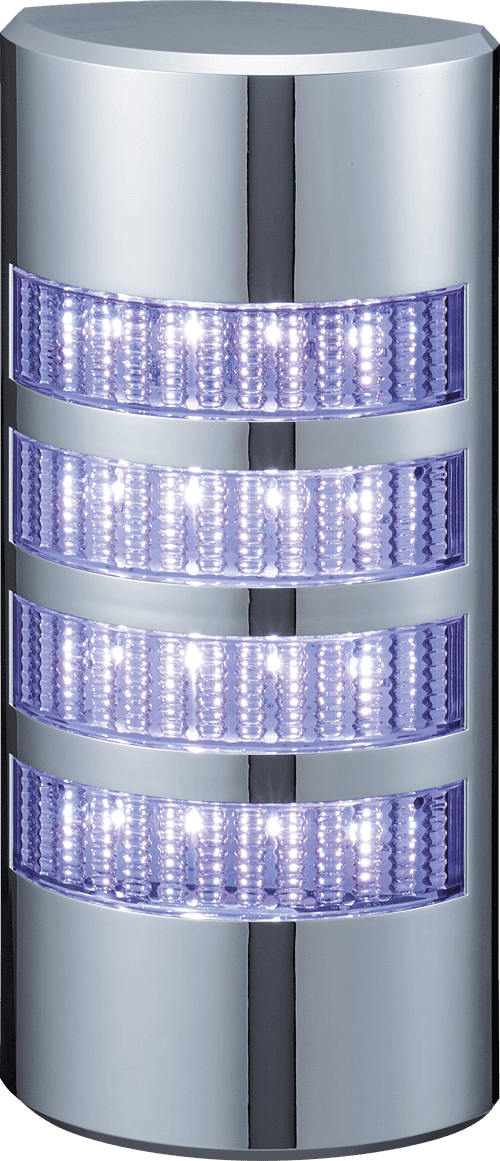

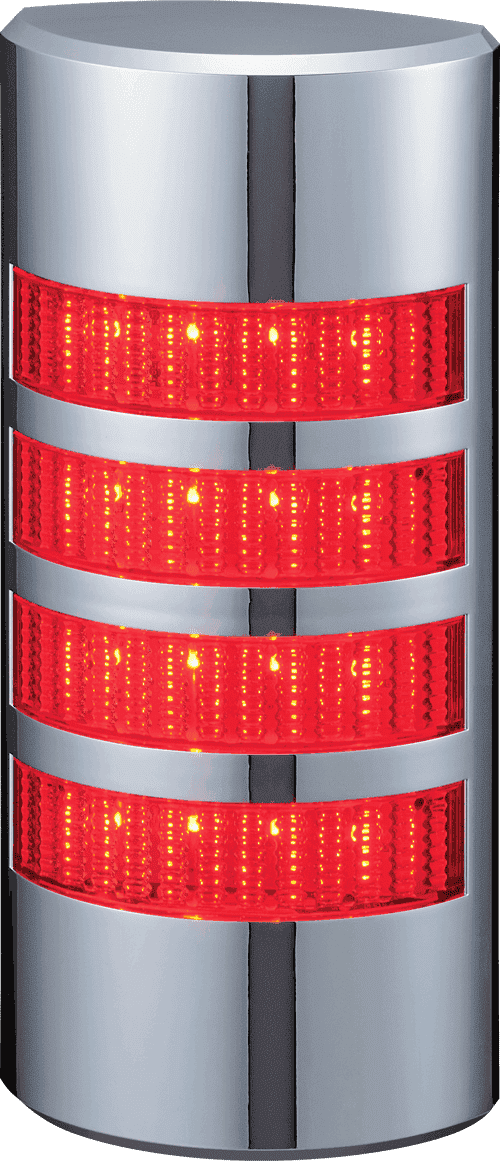

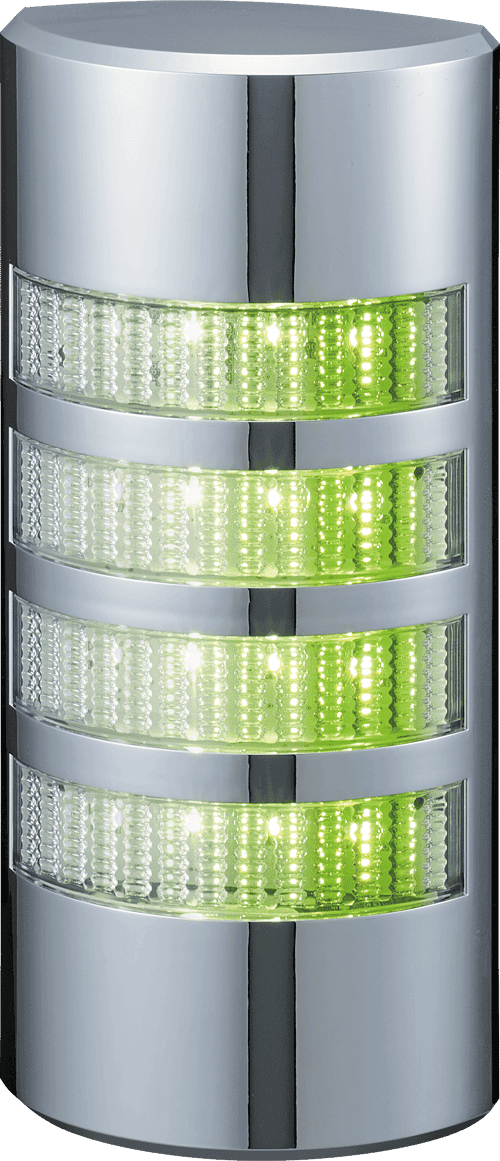

燈色示意圖



点灯色 点灯色 点灯色 点灯色
關閉 標準燈色 其他燈色 醒目模式

(*)本網站上數據的下載服務被認為已同意以下“”。

(*)本網站上數據的下載服務被認為已同意以下“”。

WE-LAN  

WE-LAN  

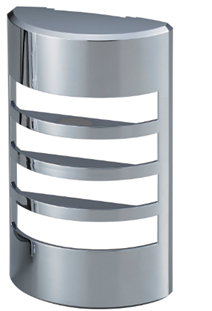

更換零件

分類 No. 名稱 零件型號 每一產品所需數 規格 更換的大致時間

																上蓋
GA0006702-F1 1

-

-
