WD PRO 本體模組

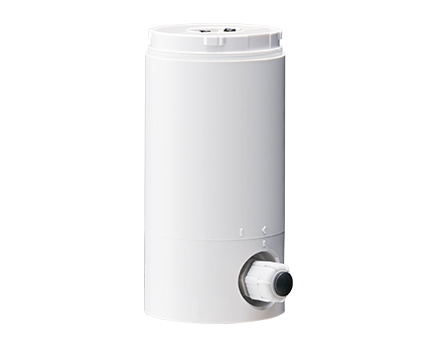

接點輸入-串列通訊模組 增加WD PRO發信器和LED模組，用於串列數據採集和接點輸入訊息，並使設備操作作業更加清楚詳細。

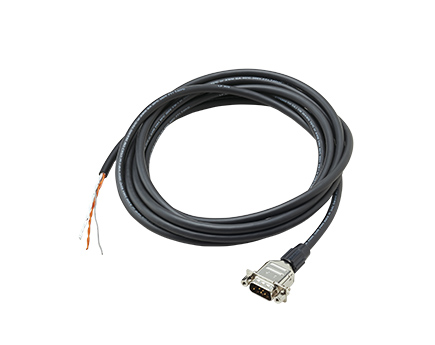

- 使用條碼讀取器(barcode reader)等串列設備，最多可取得60個字節的串列數據，用以詳細紀錄員工數據並管控產品品質。
- 配備8個接點輸入，可採集多達255個數據代碼。 支援NPN / PNP /繼電器觸點，可以使用二進制、十進制或是十六進制輸出。
|外部接點輸入||信號燈輸入（紅色、黃色、綠色、藍色、白色、蜂鳴器）; 8個外部接點輸入、1個重新設定輸入、 串列通訊輸入|
2D CAD / 3D CAD
