無線數據採集系統 WD PRO 接收器
WDR-LE-Z2-PRO

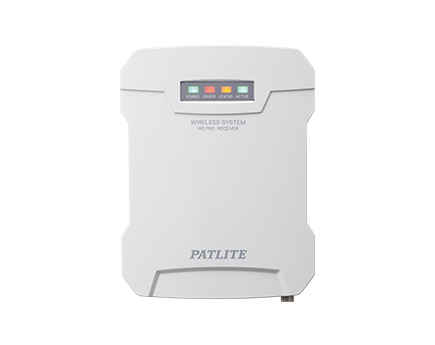

WDR-LE-Z2-PRO(WD PRO新式接收器)是PATLITE無線數據採集系統中用於數據接收的硬體端。
該無線數據採集系統可以透過無線方式獲得所連接信號燈以及蜂鳴器的即時狀態,並以CSV文件輸出,而後進行分析,用以提高OEE和生產效率。
WD PRO接收器是舊款接收器的增強版,並支援多種通訊協定,可輕鬆地與主機系統或工作場所的其他設備進行通訊連接。

  • 無線產品
  • 無線 (Zigbee)
  • 乙太網路
  • 室內
  • IP20
  • 無線數據採集系統 WD PRO 接收器 WDR-LE-Z2-PRO
  • PoE功能
    WD PRO接收器可透過一條乙太網路線,同時控制、供電,從而節省配線成本及空間的
    需求。
  • 安裝支架
    WD PRO接收器只需將主體卡到支架上即可完成安裝。
    不僅輕鬆進行安裝和拆卸,也可以從多種角度進行安裝。
  • 無線訊號診斷功能
    WD PRO接收器能夠檢測接收器和發信器之間的無線訊號品質。
    每次診斷以10分鐘為間隔,最多可以收集72小時的診斷結果。
    診斷結果分為5級,用戶可根據診斷結果判斷是否需要改善或更換安裝環境。
    通過設置界面可以輕鬆地在PC上查看數據並加以分析。
  • 信號燈狀態顯示(安燈系統)
    安裝發信器的信號燈的燈光、蜂鳴狀態都可以顯示在螢幕上,也可以與CSV數據收集同時
    使用。
  • 通訊功能
    除SOCKET通訊外,WD PRO接收器還可透過Modbus / TCP和SQL資料庫等方式進行通訊。



產品規格

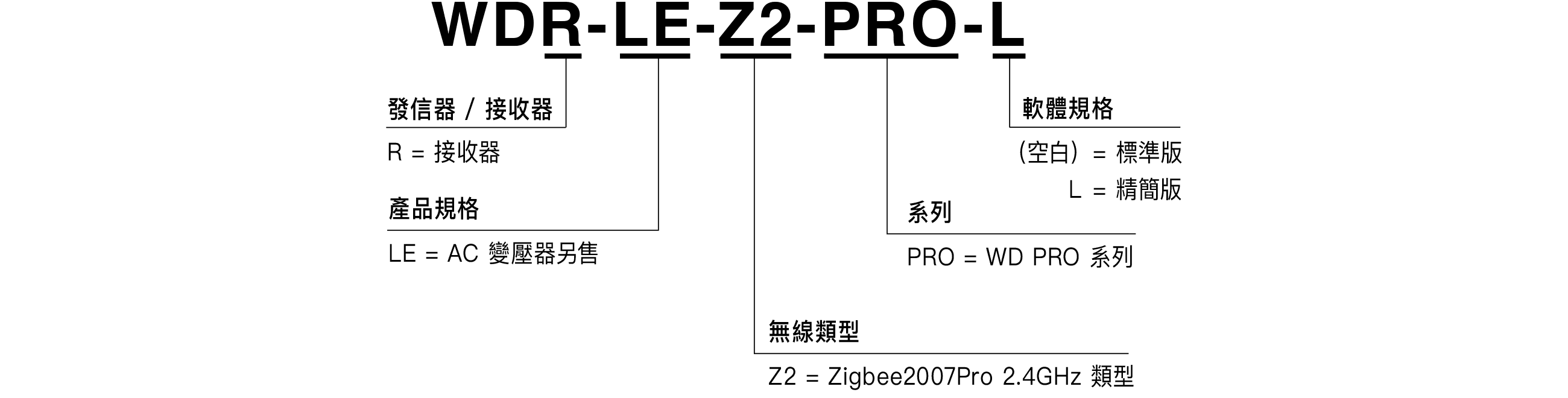

型號 無線數據採集系統
WD PRO接收器
WDR-LE-Z2-PRO
無線數據採集系統
WD PRO接收器〈Lite〉
WDR-LE-Z2-PRO-L
額定電壓 24V DC / USB / PoE
安裝方式 水平/壁掛/天花板倒吊式
網絡通訊方式 10BASE-T雙絞乙太網路線/ 100BASE-TX- CAT5電纜/ 1000BASE-T-alsoCAT5
可連接發信器數量 最多30個(依現場環境而定)
可連接通訊範圍 約30m *1
IP設定 手動設定/ DHCP自動設定
使用溫度範圍 -10℃〜+ 50℃(AC變壓器:0℃〜+ 40℃)
防護等級 IP20
無線連接診斷 即時診斷、最多72小時長期診斷
發信器無線設定 內建設定瀏覽器/ WDS-WIN01 使用WDS-WIN01
主機系統通訊 ・CSV文件(需使用WDS-WIN01)・SOCKET通訊(WDR協定)・SOCKET通訊(WDR PRO協定)・資料庫數據(MySQL)・Modbus / TCP通訊 WD-PRO ・CSV文件(需使用WDS-WIN01)・ SOCKET通訊(WDR協定)
信號燈狀態顯示
(安燈系統)
×

※1會因為現場環境不同而有所差異,請以工程師現場勘測建議值為主。
