訊號塔 (80mm 外型)
WME-D

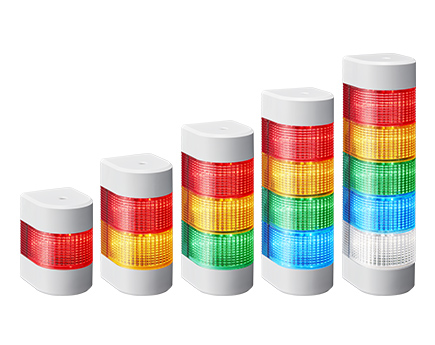

訊號塔 (80mm 外型)
嵌入式 LED 訊號塔便於安裝,且其設計可承受意外衝擊。升級超亮 LED, 大音量警報及更耐用外殼。

特点


  • FB 類型:內建聲音警報,最高 93dB (1m 處)。

  • 安裝:可使用安裝托架輕鬆進行垂直與水平安裝。

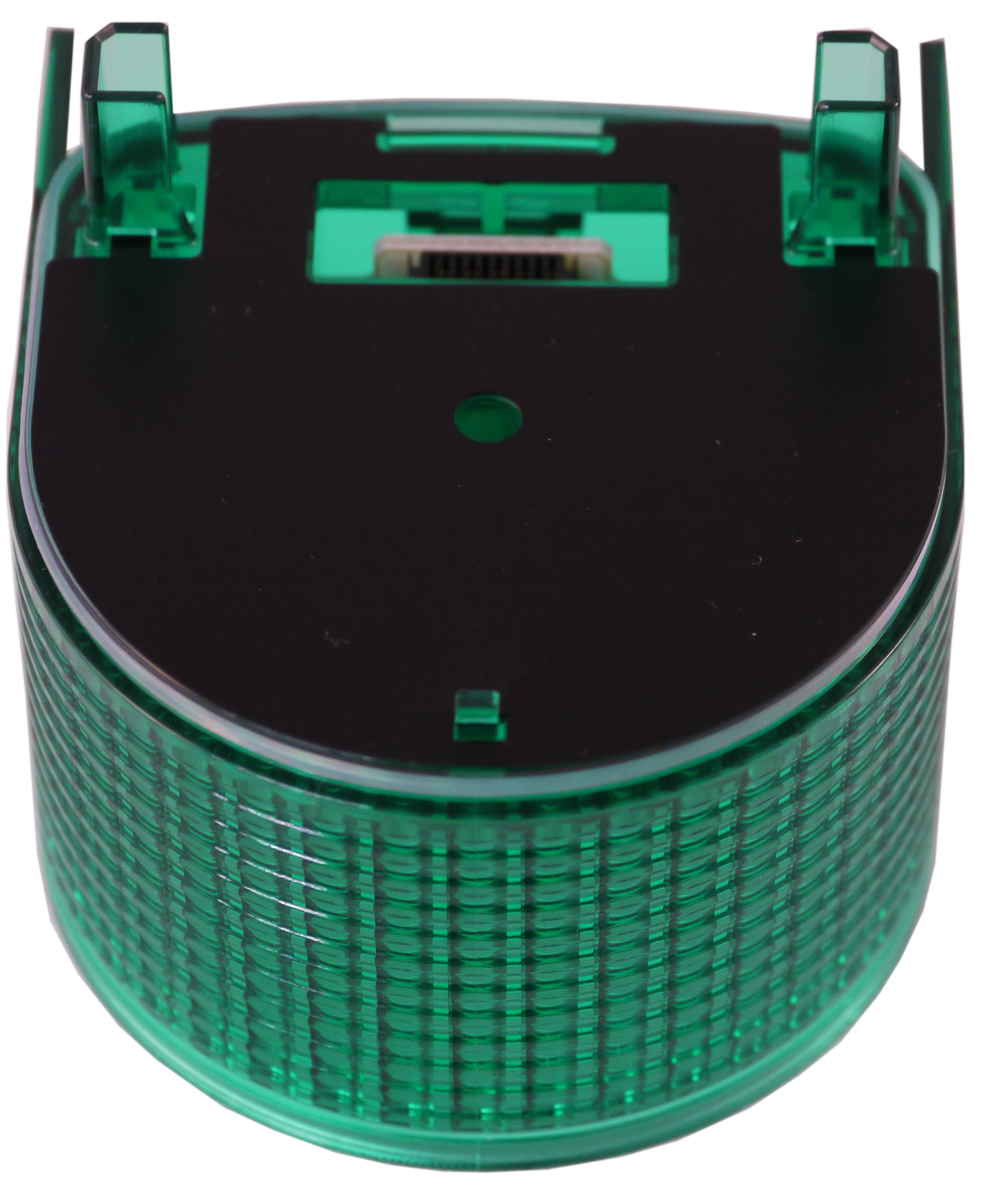

  • 可交換模組:即使安裝後也不需重新接線。

  • 主機身:PC 樹脂製。

  • 燈罩:耐衝擊及耐熱聚碳酸酯具備優異的耐用性及透光性。

  • NPN/PNP 相容:僅限 24V DC 型。

  • LED 模組顏色:紅色, 褐色, 綠色, 藍色, 白色。



WME

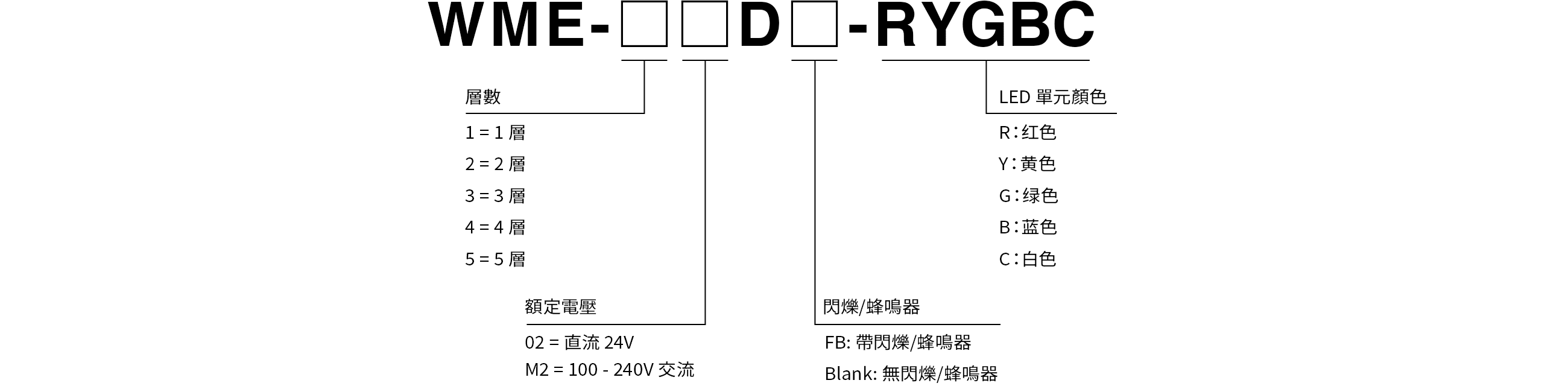

型號・規格

DIMENSIONS - 80mm profile
RATED VOLTAGE - 24V DC
- 100V-240V AC
FUNCTIONS - Continuous Only
- Continuous, Flashing, Alarms
MOUNTING - pre-assembled, pre-wired
- Lenses are interchangeable

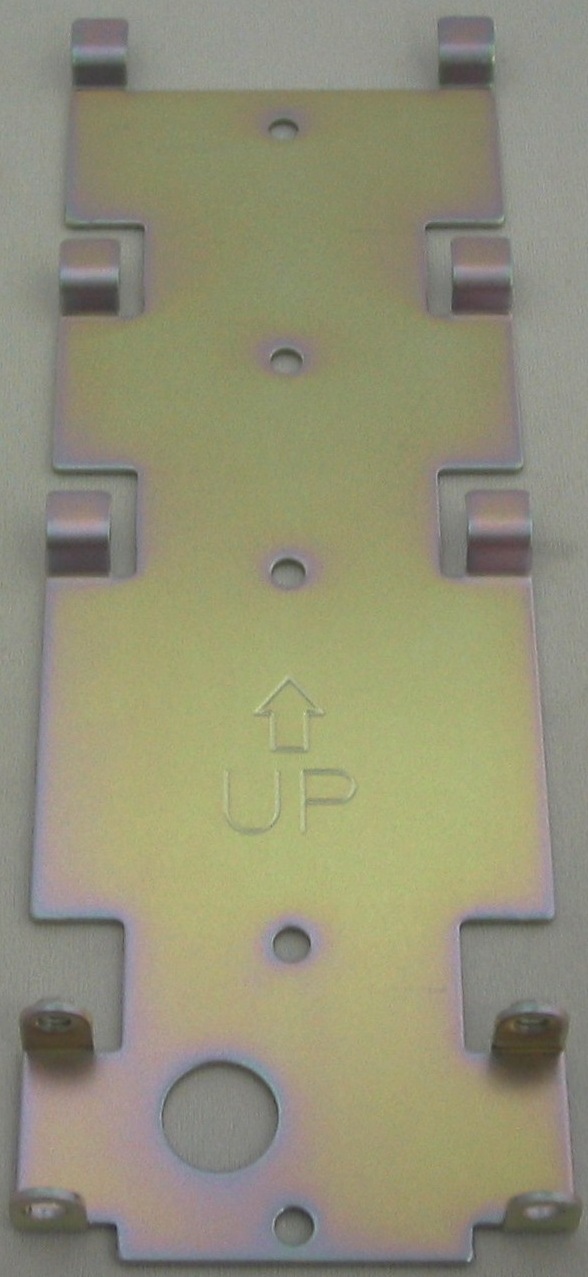

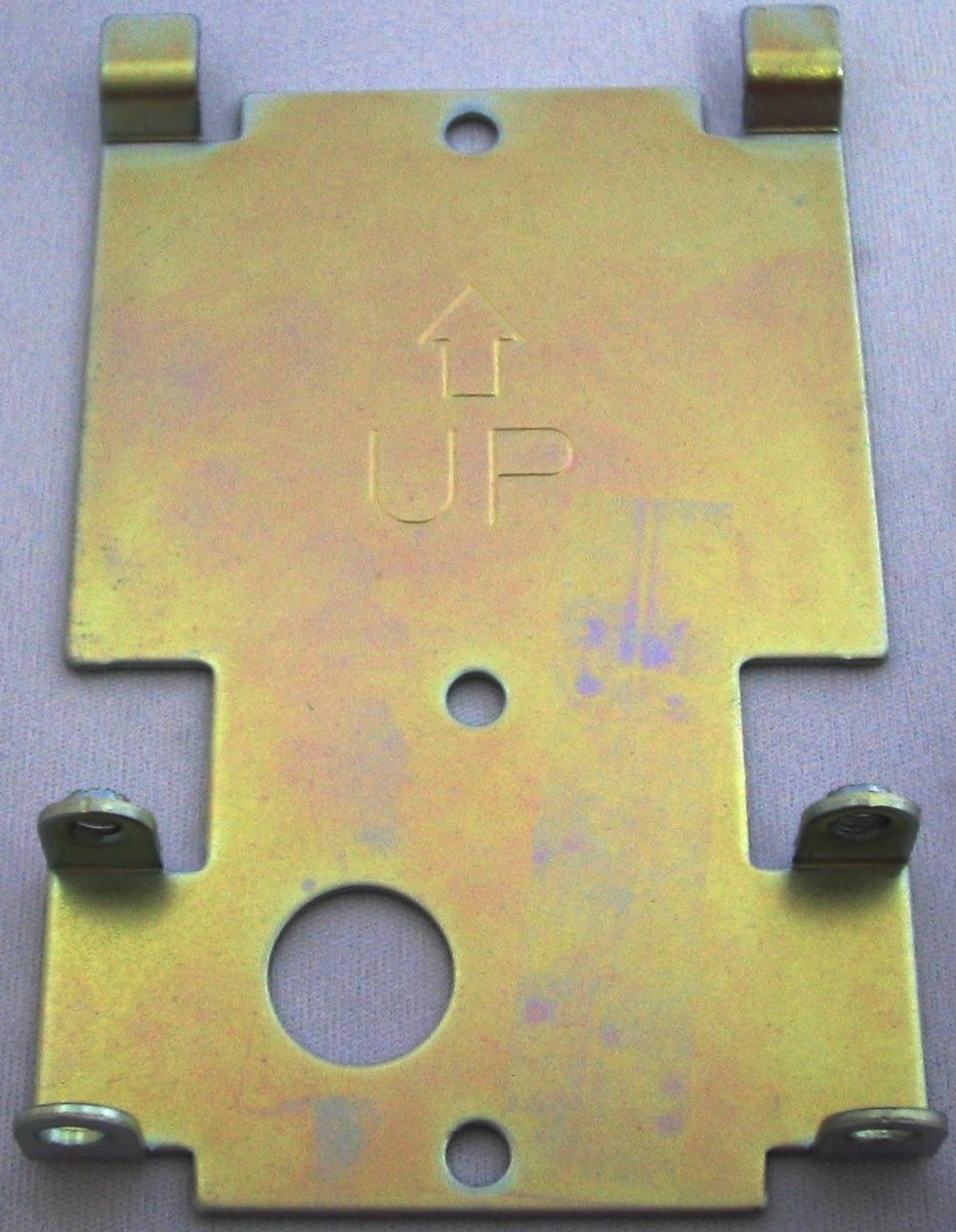

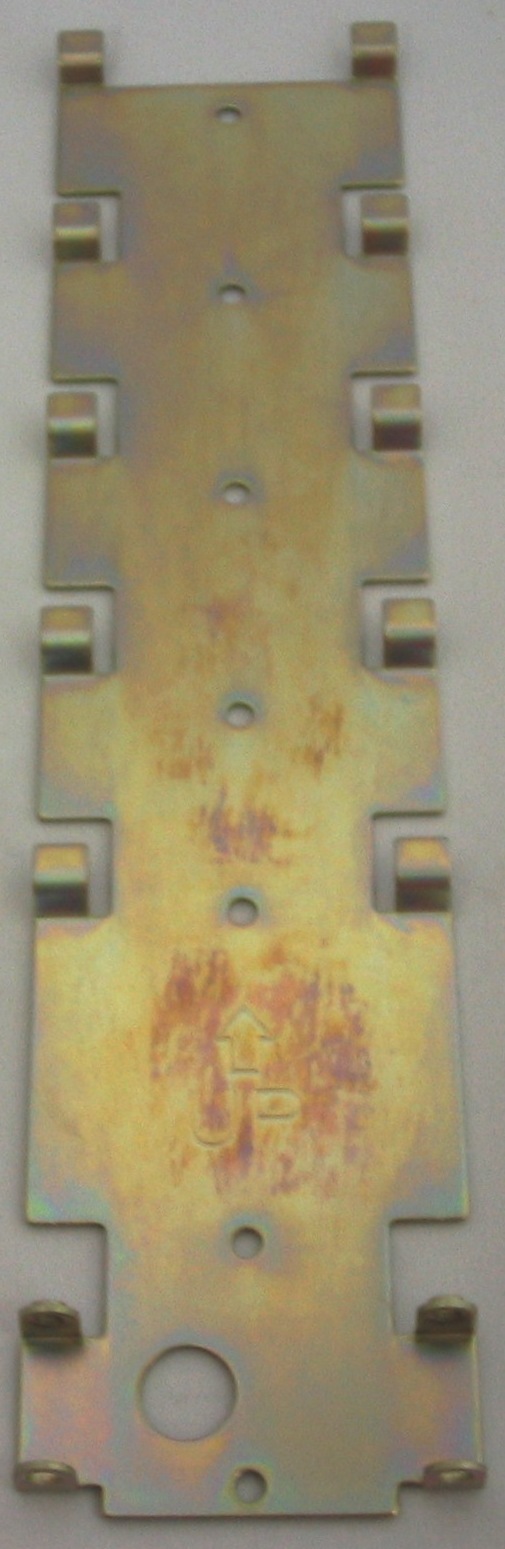

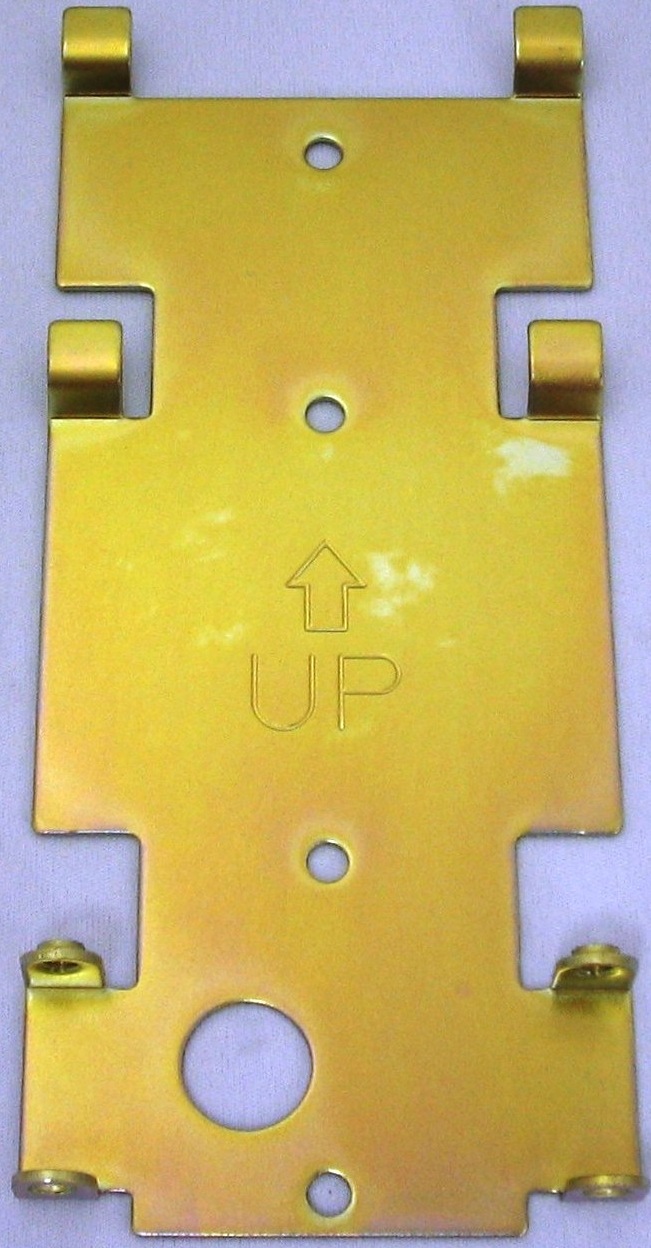

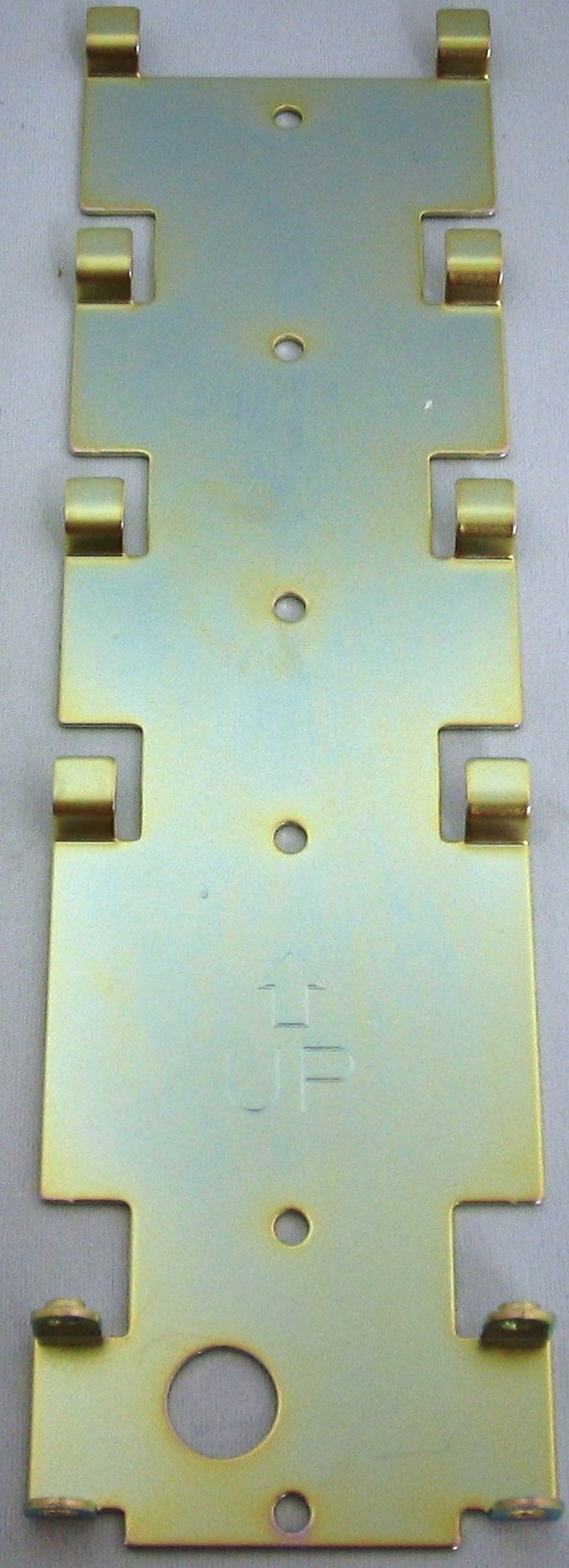

BODY STYLE - Wall mount only: includes mounting bracket
BODY COLOR - Body: Off-White
STACKABLE TIERS - Available in 1, 2, 3, 4 or 5 tier versions
(Tiers cannot be added or subtracted after purchase.)
MODULE COLORS - Red
- Amber
- Green
- Blue
- White
AUDIBLE STYLE - Two selectable Alarms: Buzzer1 (Fast intermittent)
           : Buzzer2 (Slow intermittent)
- Sound Pressure Level: 93dB (at 1m)
CONFORMITY STANDARDS - CE Marking
- UL Component Recognition (US)
- c-UL Component Recognition (Canada)
- KC
PROTECTION RATINGS - IP-54 (Normal)
