Φ60mm以太網可編程LED多層警示燈(支持PoE)
LA6-PoE

發現我們Φ60mm可編程一燈多色LED多層警示燈的高效能,配備先進的PoE支持,確保連接和定制的簡便性。非常適合工業使用。

  • 網路產品
  • 乙太網路
  • IO控制
  • 信號燈
  • Φ60
  • 長亮
  • 閃爍
  • 警示音
  • 85dB
  • 室內
  • IP54
  • 一燈多色
  • Φ60mm以太網可編程LED多層警示燈(支持PoE) LA6-PoE
  • 支援PoE(乙太網供電)的乙太網連接,實現單電纜安裝
  • 支援Modbus TCP/IP和HTTP協議,與現有基礎設施無縫協作
  • 內建網頁介面,快速便捷的設置和配置
  • 包括21種可程式LED顏色和11種可選警報聲,明確指示
  • 具有鏡像功能,可以從主LA6-POE複製視覺和聽覺狀態到最多8個遠程從屬LA6-POE
  • 內建端子塊,作為備用控制方法

型號規格

尺寸 - 直徑60mm
工作電壓 - 直流 24V
- 乙太網供電(PoE):直流 48V
控制 - 電線輸入(4個數字輸入)
- 網絡命令
- HTTP
- Modbus TCP
- Socket(PNS,PHN - 派特菜開發的協議)

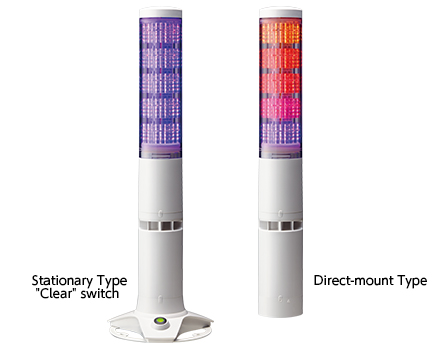

主體樣式 TN: 直接安裝類型
SN: 固定類型
主體顏色 - 象牙白
- 銀色(僅限美洲)
可堆疊層數 - 5個模塊
模塊顏色 21種顏色
聲音樣式 - 11種可用的警報聲
音量 - 最大85dB
- 可調至最大85dB
認證 - EMC指令
- RoHS指令
- UL 508
- FCC
- KC
防護等級 - IP54(IEC 60529)

(*)本網站上數據的下載服務被認為已同意以下“”。

(*)本網站上數據的下載服務被認為已同意以下“”。

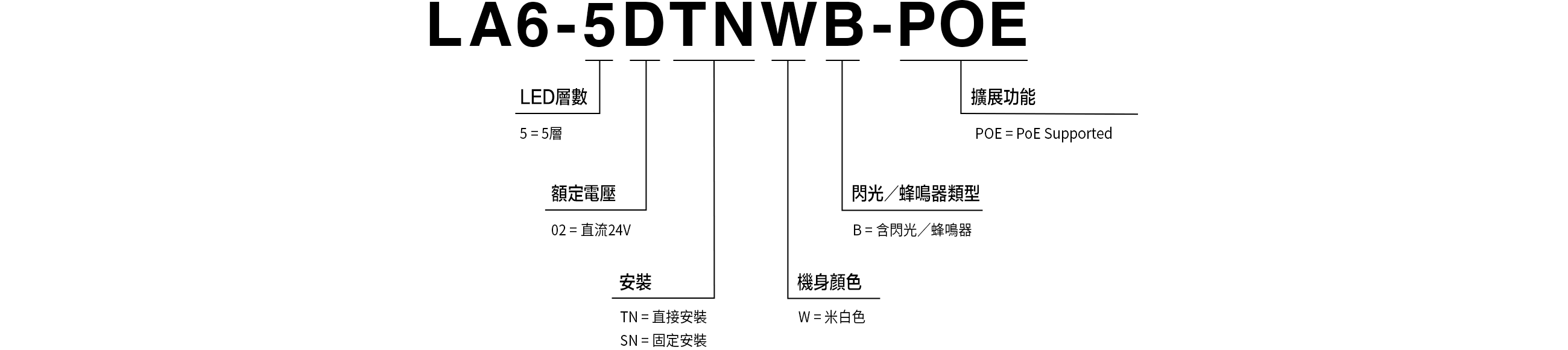

LA6-5DTNWB-POE (直接安裝型)  

LA6-5DTNWB-POE (直接安裝型)  

更換零件

分類 No. 名稱 零件型號 每一產品所需數 規格 更換的大致時間

																上蓋:白色
B31310001-7F1 1

																USB蓋: 白色
B22100071-7F1 1

																防水墊圈(2pcs)
B25110042-F1 1

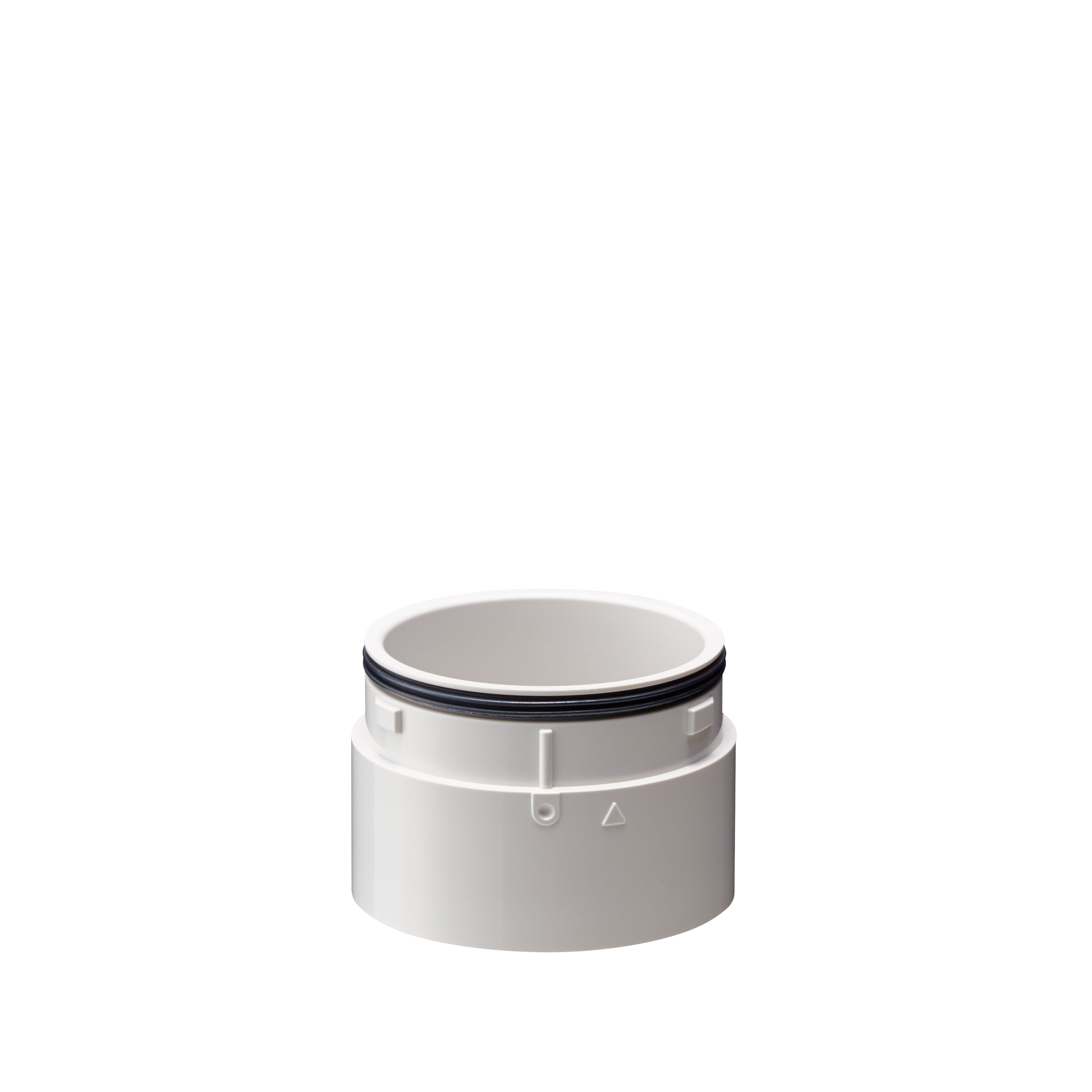

																底座
B22100082-F1 1

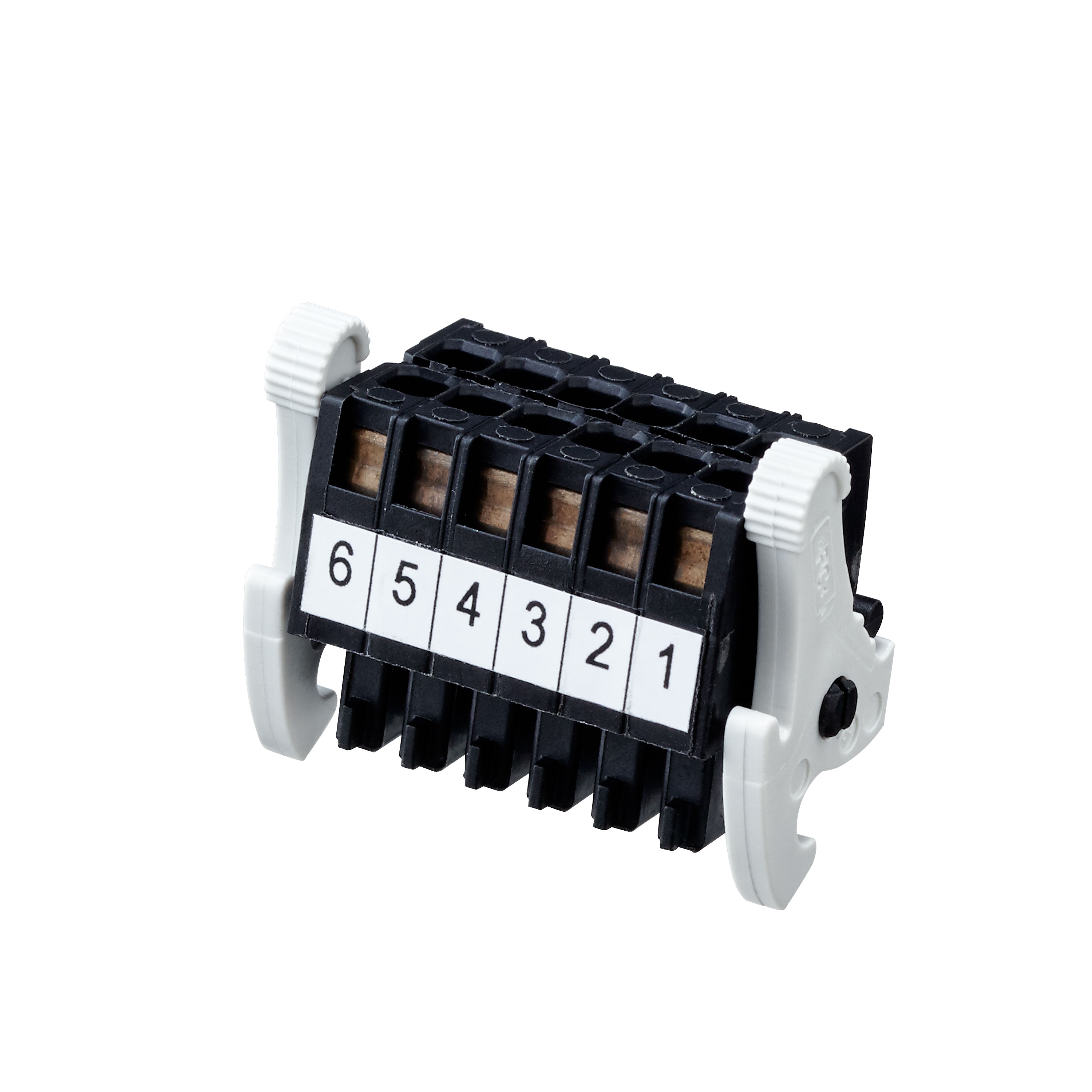

																接線端子台
Z69544323-F1 1
LA6-5DSNWB-POE (桌上固定座型)  

LA6-5DSNWB-POE (桌上固定座型)  

更換零件

分類 No. 名稱 零件型號 每一產品所需數 規格 更換的大致時間

																上蓋:白色
B31310001-7F1 1

																USB蓋: 白色
B22100071-7F1 1

																防水墊圈(2pcs)
B25110042-F1 1

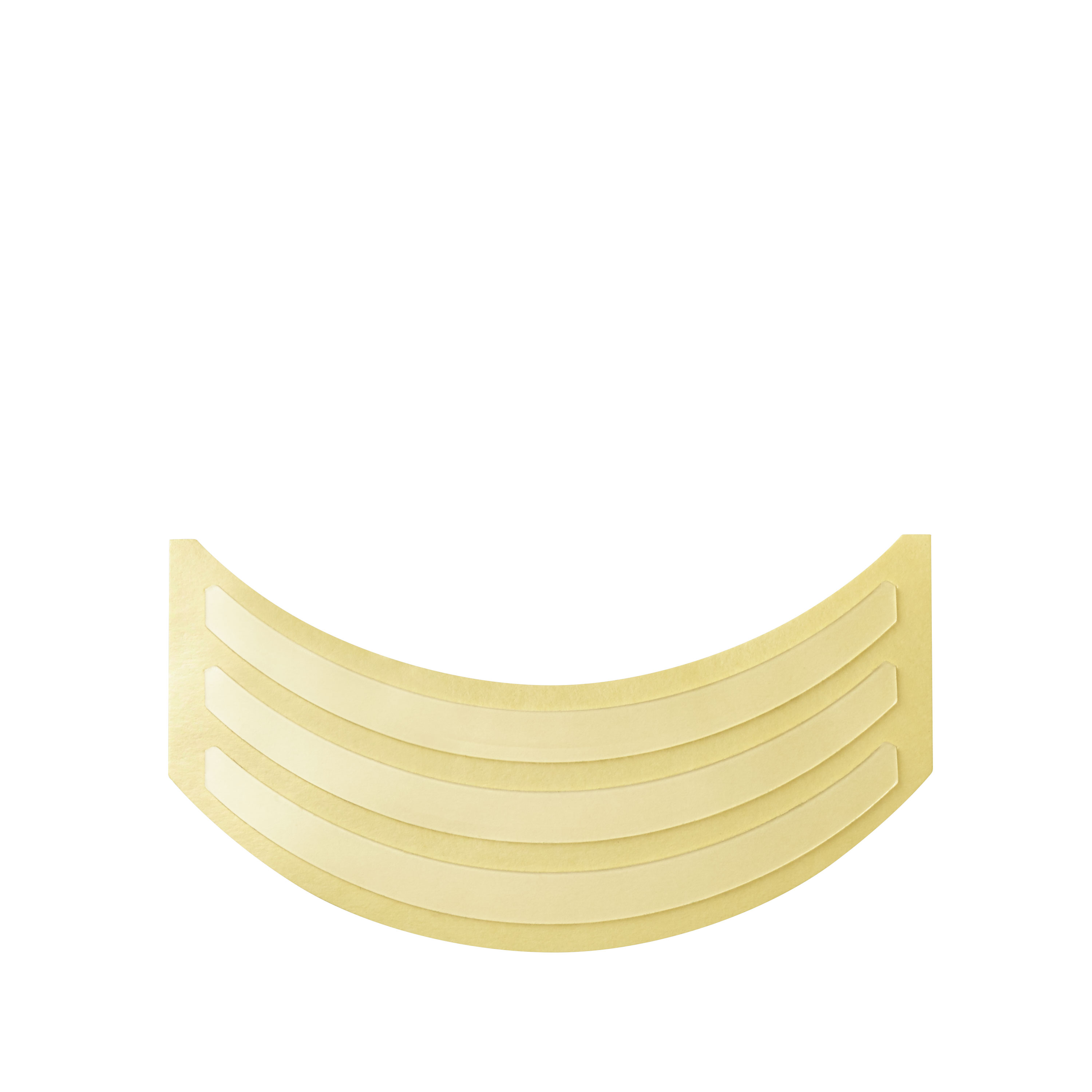

																橡膠板(3pcs)
B25210060-F1 3

																接線端子台
Z69544323-F1 1
