大音量警報喇叭
EHS

內建32種音樂組合,可依照環境選擇

  • IO控制
  • 蜂鳴器
  • 警示音
  • 樂曲
  • 110dB
  • 室內/室外
  • IP65

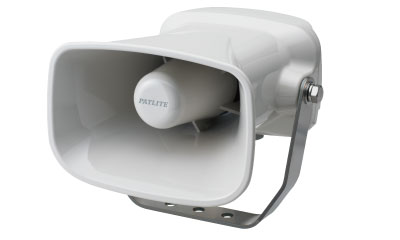

  • 大音量警報喇叭 EHS
  • 比前機種EWH體積縮小30%,真正做到改良改善。
  • 更強的防震性,可承受高達 4.5G 。
  • 儘管尺寸變小,但在一公尺處能聽到的最大音量為 110dB(比以往多5dB)。
  • 可選用電纜線或是端子台,讓配線上擁有更大彈性。
  • NPN、PNP皆可使用
  • 符合歐洲環保RoHS。
  • IP65 防護等級(詳見說明書)。
  • 使用 SD 卡可以更換樂曲內容。
  • 符合 CE 認證。



規格

額定電壓 DC 12-24V
AC 100-240V
蜂鳴聲選擇 32種聲音可選擇
安裝方式 包括安裝支架
本體顏色 米白色
音量大小 一公尺最大音量高達110dB
頻道選擇方式 內建32個蜂鳴聲(詳見內建音樂列表)
4種播放模式可配合各種環境
音樂組合設定 位元輸入:從 8 個訊號輸入選擇頻道
二進制輸入:從32個頻道中選擇
認證 UL464
CSA-C22.2 No.205-M1983
FCC Part 15 Subpart B Class 4
CE (僅EHS-M1)
RoHS
防護等級 IP65
備註 降噪
電纜配線或是端子台配線
NPN、PNP皆可使用
功能 防震4.5G



(*)本網站上數據的下載服務被認為已同意以下“”。

(*)本網站上數據的下載服務被認為已同意以下“”。

EHS  

EHS  

更換零件

分類 No. 名稱 零件型號 每一產品所需數 規格 更換的大致時間

																電纜
V13100076-F1 1

																蓋子
V21100522-F1 1

附盤頭螺絲 M4×14及墊片
