• IO控制
  • MP3播放器
  • 警示音
  • 樂曲
  • MP3語音
  • 110dB
  • 室內
  • IP65

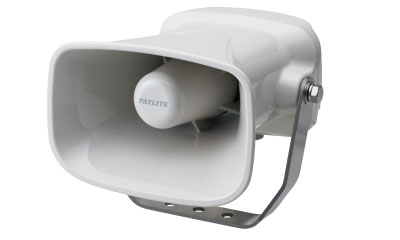

  • MP3大音量警報喇叭 EHV
  • 比前機種EWH體積縮小30%,真正做到改良改善。
  • 更強的防震性,可承受高達 4.5G 。
  • 儘管尺寸變小,但在一公尺處能聽到的最大音量為 110dB(比以往多5dB)。
  • 可選用電纜線或是端子台,讓配線上擁有更大彈性。
  • 4 種播放模式可與環境相對應的場合使用
  • NPN、PNP皆可使用
  • 符合歐洲環保RoHS。
  • IP65 防護等級(詳見說明書)。
  • 使用 SD 卡可以自訂音訊內容。
  • UL認證
  • 符合 CE。 (直流型)


額定電壓 DC 12-24V
AC 100-240V
蜂鳴聲選擇 64種聲音可選擇
安裝方式 包括安裝支架
本體顏色 米白色
音量大小 一公尺最大音量高達110dB
頻道選擇方式 內建63個蜂鳴聲(詳見內建音樂列表)
音樂組合設定 位元輸入:從 8 個訊號輸入選擇頻道
認證 UL464
CSA-C22.2 No.205-M1983
FCC Part 15 Subpart B Class 4
CE (直流型)
防護等級 IP65
功能 減音模式
MPEG Layer-3 音訊編碼技術獲得Fraunhofer IIS 和 Thompson Licensing 認證
備註 防震4.5G






分類 No. 名稱 零件型號 每一產品所需數 規格 更換的大致時間

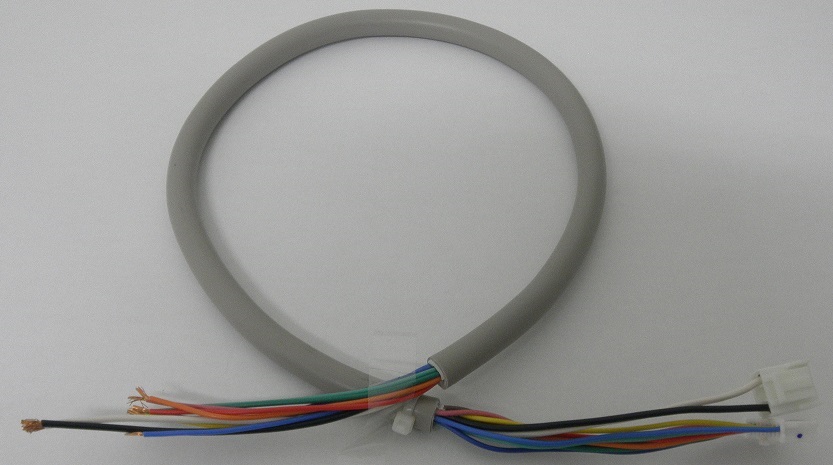

V13100076-F1 1

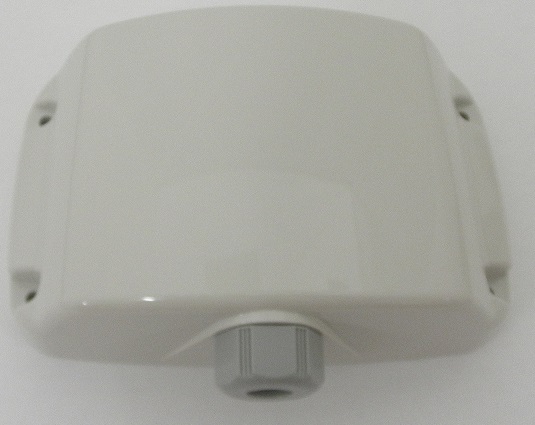

V21100522-F1 1

附盤頭螺絲 M4×14及墊片
