120mm 播放器

使用 Patlite 的SD 卡(SD-2GP)和官網免費下載的編輯軟體,讓您輕鬆完成符合環境的語音設定。

  • IO控制
  • □120
  • MP3播放器
  • MP3語音
  • 95dB
  • 室內
  • 室外
  • IP54

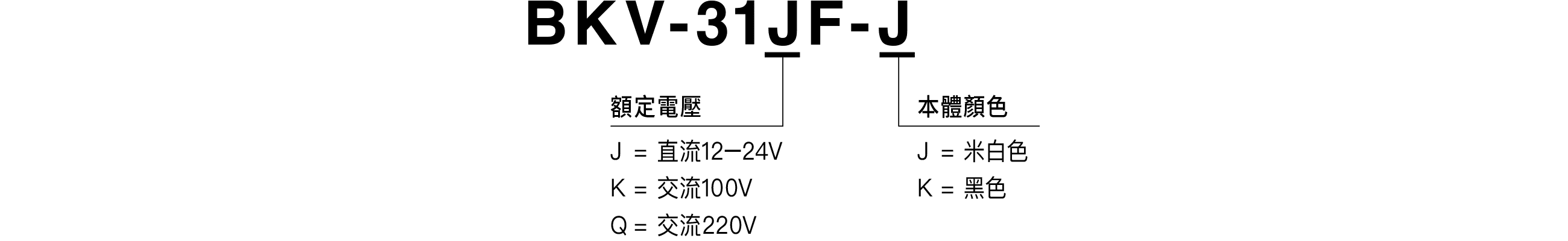

  • 120mm 播放器 BKV
  • 僅嵌入式安裝。
  • 即使在安裝定位後,亦可透過隱藏在正面下方滑蓋中的旋鈕輕鬆更改音量大小。
  • 符合歐盟 RoHS。
  • 多種播放模式可用於各種場合。
  • 二進制輸入,使頻道可選擇頻道多達 31 種。
  • 適用NPN。
  • 符合歐盟以及CE(僅限 BKV-31JF)
  • 有兩種顏色可供選擇。
  • 防護等級:IP54(僅限嵌入式正向安裝)


尺寸 120mm x 120mm x 62.8mm
額定電壓 DC 12/24V
AC 100V(特規)
安裝方式 嵌入式安裝(正向、逆向、水平)
本體顏色 米白色
音量 一公尺處最大音量95dB
鈴聲設定 錄製時間:約63 秒(位元速率=64k/s)
頻道選擇 位元輸入:從 1 到 5 個頻道中選擇其一
二進制輸入:從 1 到 31 個頻道中選擇其一
認證 CE
MPEG Layer-3 音訊編碼技術獲得Fraunhofer IIS 和 Thompson Licensing 認證
防護等級 IP54 (僅正向安裝)
功能 單次播放
選購品 播放清單編輯器2(用於MP3檔案寫入)






分類 No. 名稱 零件型號 每一產品所需數 規格 更換的大致時間

C25110015-F1 1



C15140004-F1 2



																安裝支架 (2 pcs)
V82100001-F1 2
