120mm 蜂鳴器


  • IO控制
  • □120
  • 蜂鳴器
  • 警示音
  • 樂曲
  • 95dB
  • 室內
  • 室外
  • IP54
  • 120mm 蜂鳴器 BK
  • 蜂鳴器中內建32種蜂鳴聲,可用於各種場合。
  • 1公尺處最大音量為 95dB,適用於吵雜工作環境。
  • 即使在安裝定位後,亦可透過隱藏在正面下方滑蓋中的旋鈕輕鬆更改音量大小以及音樂組合。
  • 從A到H中選定音樂組合後,即可播放以8個內建蜂鳴聲為單位的音樂組合。
  • 使用SD卡(SD-2GP),便可隨選8個內建蜂鳴聲做為您專屬的音樂組合。
  • 符合RoHS認證。
  • 當旋鈕轉向「I」到「O」中的任何一點,即可測試音量及功能是否正常。
  • 可通過位元輸入(8個頻道)或二進制輸入(32 個頻道)播放。

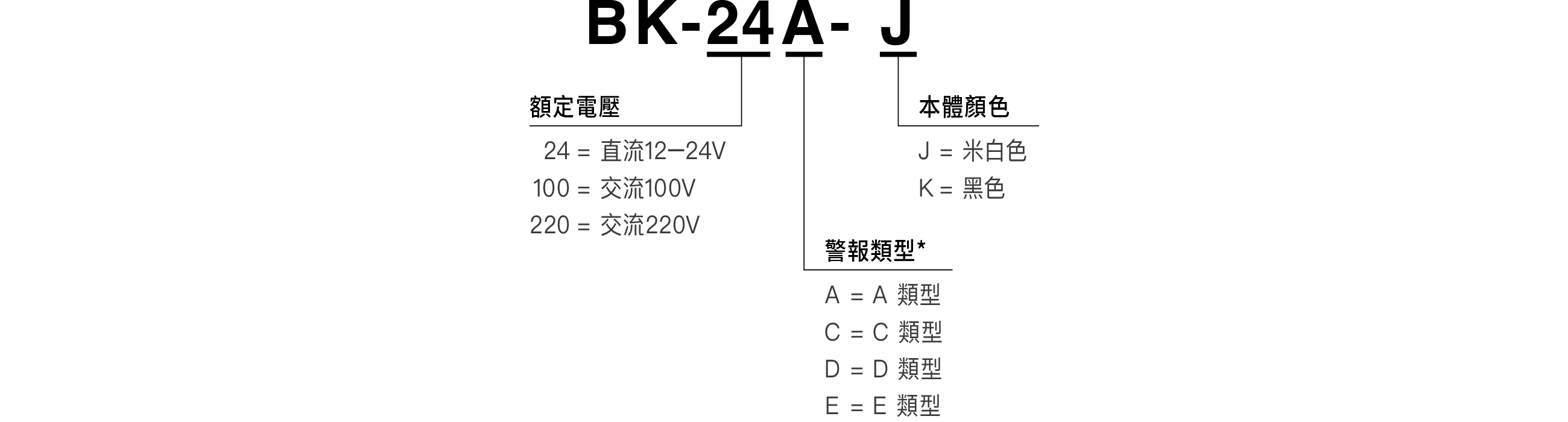

尺寸 □120mm(正面)
額定電壓 DC 12-24V
AC 100V
AC 220V
音樂組合 預錄內建32種(警示音、音樂歌曲等)
安裝方式 嵌入式安裝(正向、逆向、水平)
本體顏色 米白色
本體顏色 銀色
音量 1公尺處的最大音量為 95dB
音樂組合設定 內建32個蜂鳴聲(詳見內建音樂列表)
頻道選擇方式 從旋鈕「A」到「H」中任選其一
認證 CE
防護等級 IP54 (正面安裝)
備註 乾接點,例如:開關或繼電器觸點
選購品 SD卡(SD-2GP)






分類 No. 名稱 零件型號 每一產品所需數 規格 更換的大致時間

C25110015-F1 1



C15140004-F1 2

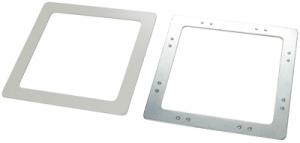

																安裝支架 (2 pcs)
V82100001-F1 2
