162mm Revolving Warning Light
If you use from a personal computer available and useful functions download various files.
RT-A/C/D/E

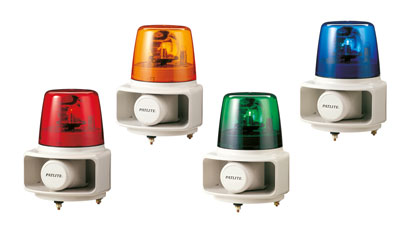

162mm Revolving Warning Light
The RT series is a large horn and rotating light combination for increased plant floor coverage.

特点

· 32 sounds are pre-recorded in one unit.
· For enhanced durability and safety in the work environment.
· Built-in Alarm: Adjustable audible sound up to 105dB at 1m with volume control.
· Installation: Indoors—upright, inverted, sideways; Outdoors—upright only. (Do not install the horn facing upward).

※PATLITE Corporation has not applied for permission to use certain copyrighted music or songs recorded in RT-A, C and D types outside of Japan. For additional information regarding this issue, please contact your local PATLITE sales representative.

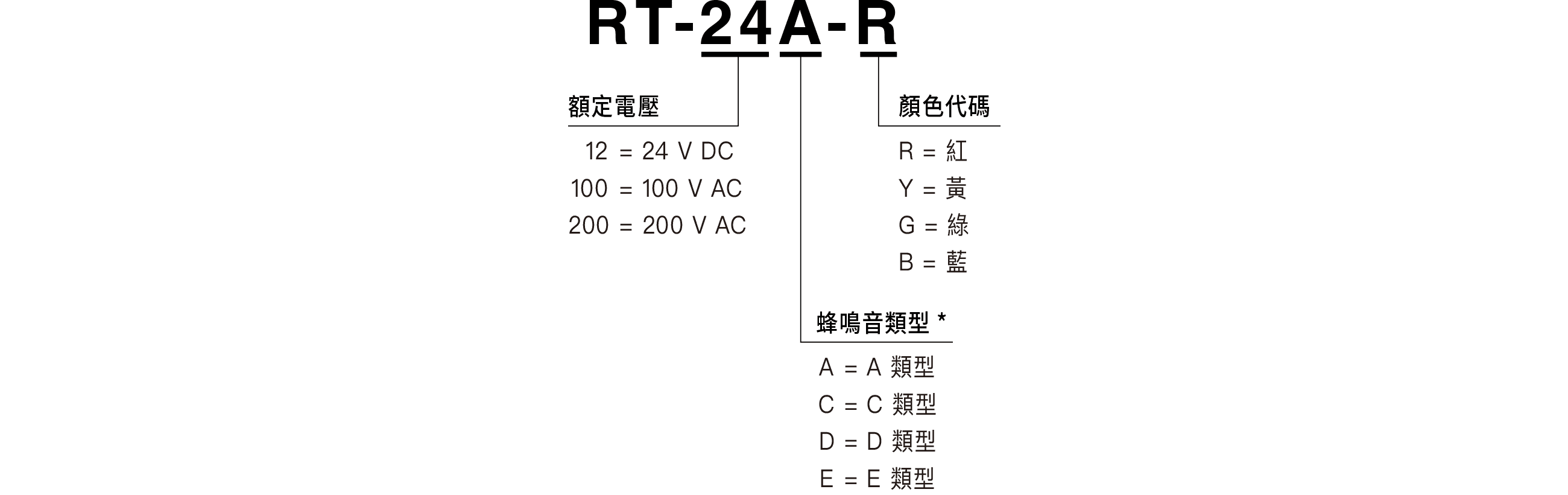

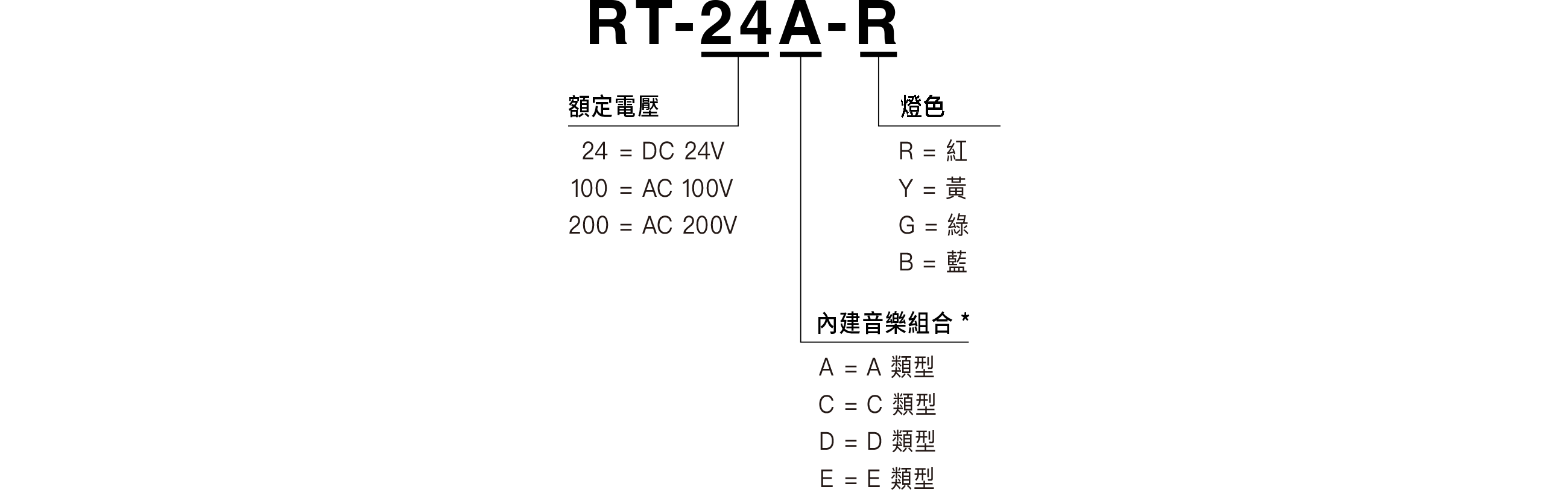

型號・規格

DIMENSIONS - 162mm diameter
OPERATING VOLTAGES - 24V AC/DC
- 100V AC
- 200V AC
AUDIBLE STYLE - RT-A/C/D/E: 32 pre-recorded alarm sounds
SOUND RECORDING OPTIONS - Messages composed from a pre-recorded library (Message availability may be limited)
- Customized Messages can be created at the factory (Additional costs may apply)
SOUND SELECTION - High-quality digital recording
VOLUME - Maximum 105dB at 1 meter with adjustable volume control

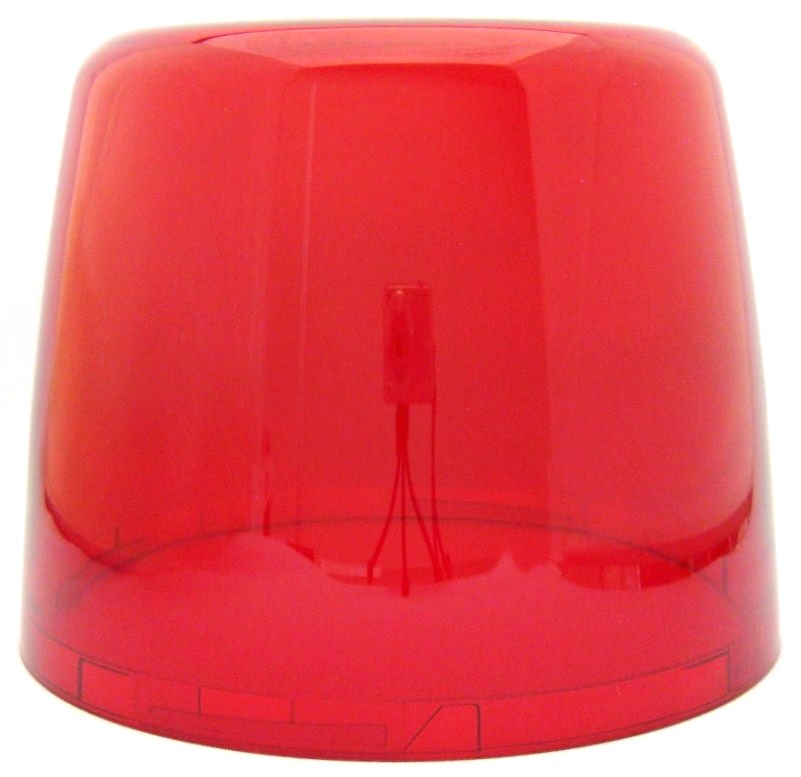

BODY STYLE - Red

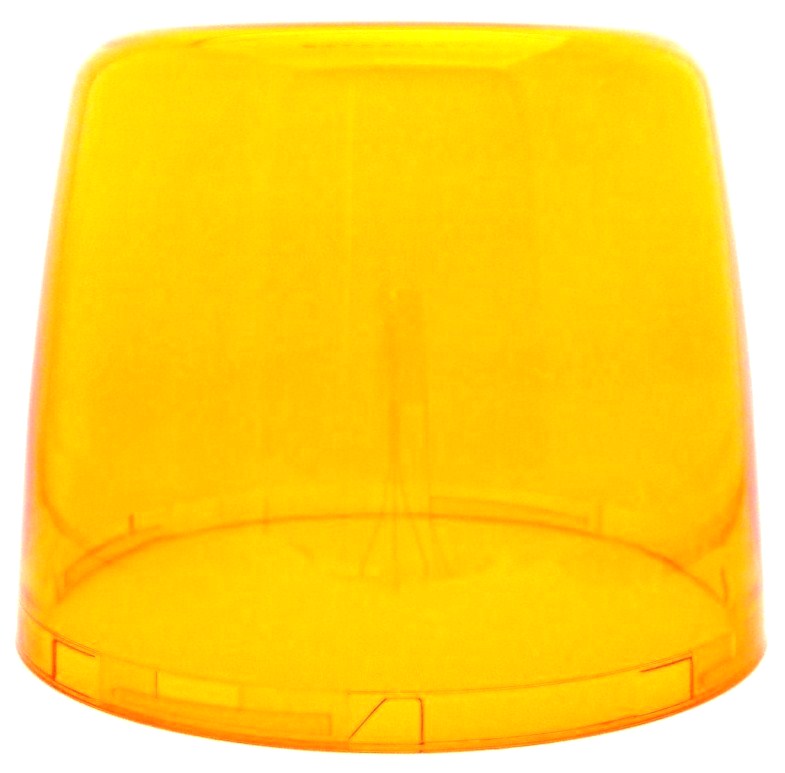

- Amber

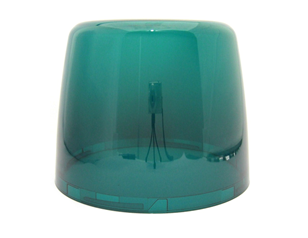

- Green

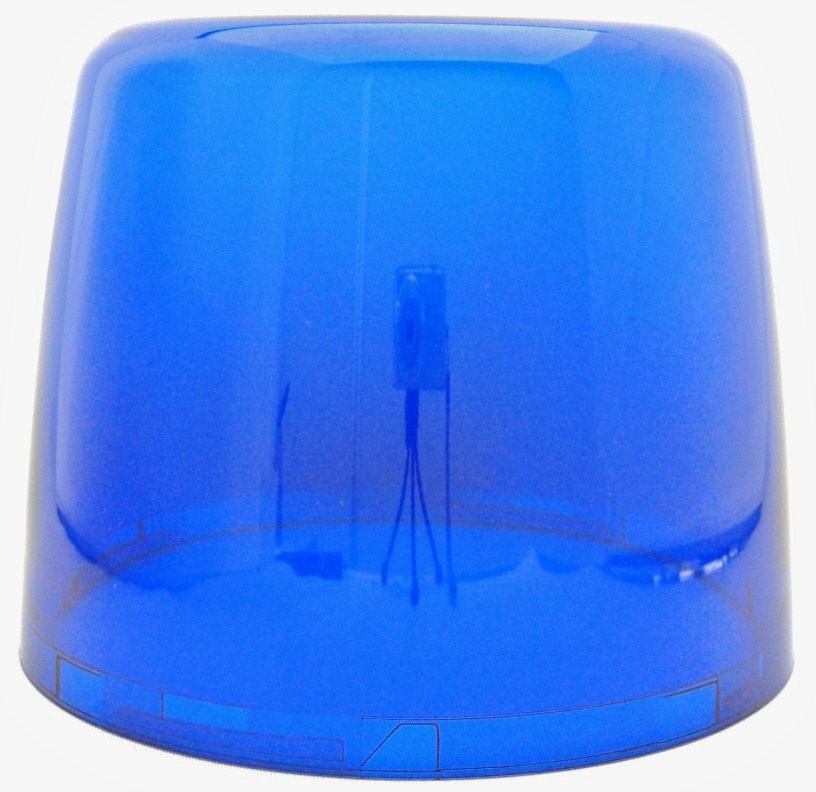

- Blue
BODY COLOR - Acrylic Resin
STACKABLE TIERS - Dry contact closure such as switches or relay contacts
- Open-collector transistor (NPN for DC24V and AC120V)
- Direct voltage control for DC24V, K and L-type Units only (see wiring diagrams)
PROTECTION RATINGS - CE ( Only 24V DC )
- IP-23
OPTIONS - SZ-008
