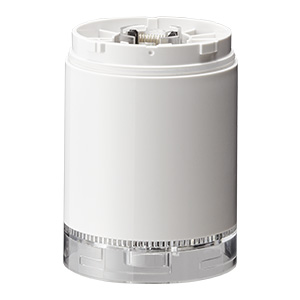

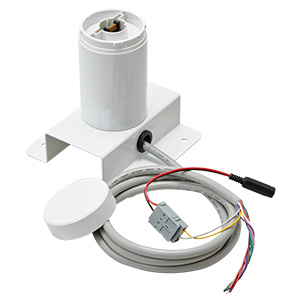

Wireless Data Acquisition System
WDT-6LR-Z2
Wireless Data Acquisition System

特点

■ WD System
  The WD system is a system that transmits information on various equipment in
  production facilities (facility operation data, etc.) to the host PC via a WD wireless
  network to collect data.
  By collecting this information and visualizing it with application software, the
  implementation of "grasp accurate utilization rate", "activate improvement of activities",
  and "operation optimization" becomes visible.
  It can also be used in applications not limited to production facilities.


WDS

型號・規格

CONFORMITY STANDARDS - Radio Law Authorized Country: Japan (ARIB STD-T66)
                      United States (FCC)
                      Europe (CE)
OPERATING VOLTAGES - DC19.0V to DC26.4V
PROTOCOLS - Telecommunication Protocols: IEEE-802.15.4
                      (Wireless Communications)
FUNCTIONS - Connected Model: LR6 type Tiered Signal Tower Body unit top attachment
- Communication Frequency: 2405 MHz - 2480 MHz (16 channels)
- Communication distance: About 30m from source
                   (Reference Value)
- Number of Available Contacts: Six points
                       (red, amber, green, blue, white, buzzer)
