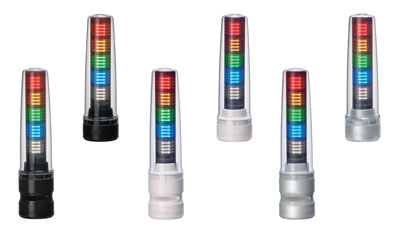

LS7
LED Signal Tower

PATLITE 新推出"LS7"為輕巧流線型之信號塔燈,透過燈體表面更平滑的外形設計,可降低水及灰塵之吸附;結構上亦無螺絲、軸等露出,可適用於各種環境。採用內透鏡,可使LED放射更有效光線。蜂鳴器型之蜂鳴聲可穿透操作機器至高速加工機器所發出聲音,傳至操作員的耳內。LS7提供3層或5層多樣選擇,除傳統接線方式外,全新上市M12接線插頭可使後續添加安裝更加方便快捷。

LED Signal Tower
LED Signal Tower
  • Products Overview
  • Frequently Asked Questions
  • Catalog Request
  • Contact Us
  • Accessories

Product Features

・燈體平滑的表面,未顯露任何金屬

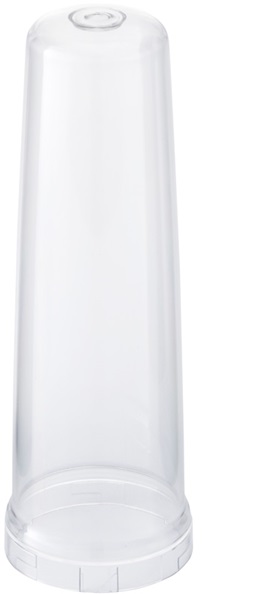

・透鏡護蓋由有防震功能的聚碳酸酯(polycarbonate)材料製成
・蜂鳴器的聲音可在各種環境中聽到
・高對比可見度
・顯示器在任何環境下均表現優異
・M12 連接器接線與可堆疊結構
・容易接附且不需使用繼電器控制盒
・全為塑膠托架

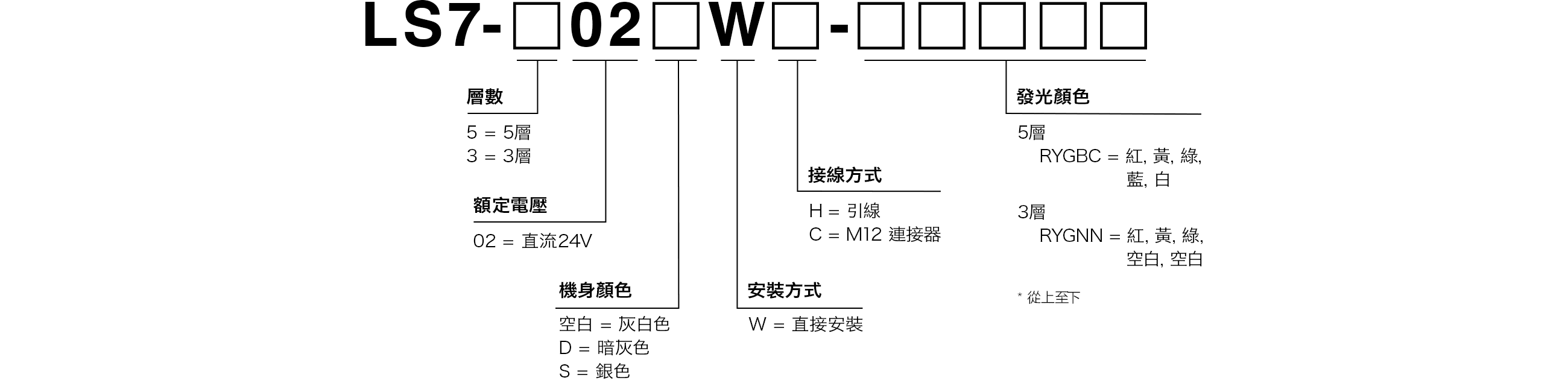

Model Specifications

DIMENSIONS - 70mm Diameter
OPERATING VOLTAGES - 24V DC

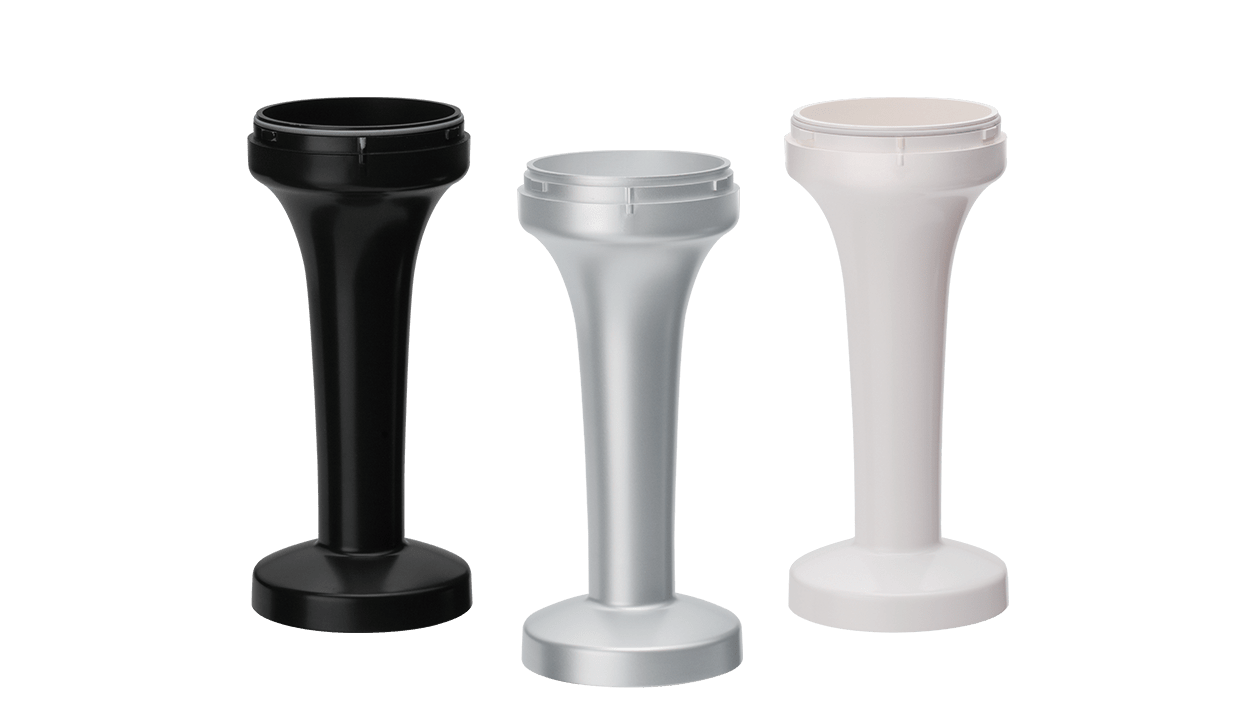

MOUNTING Platform Bracket
- SZ-100 (Off-white)
- SZ-100-D (Dark Gray)
- SZ-100-S (Silver)

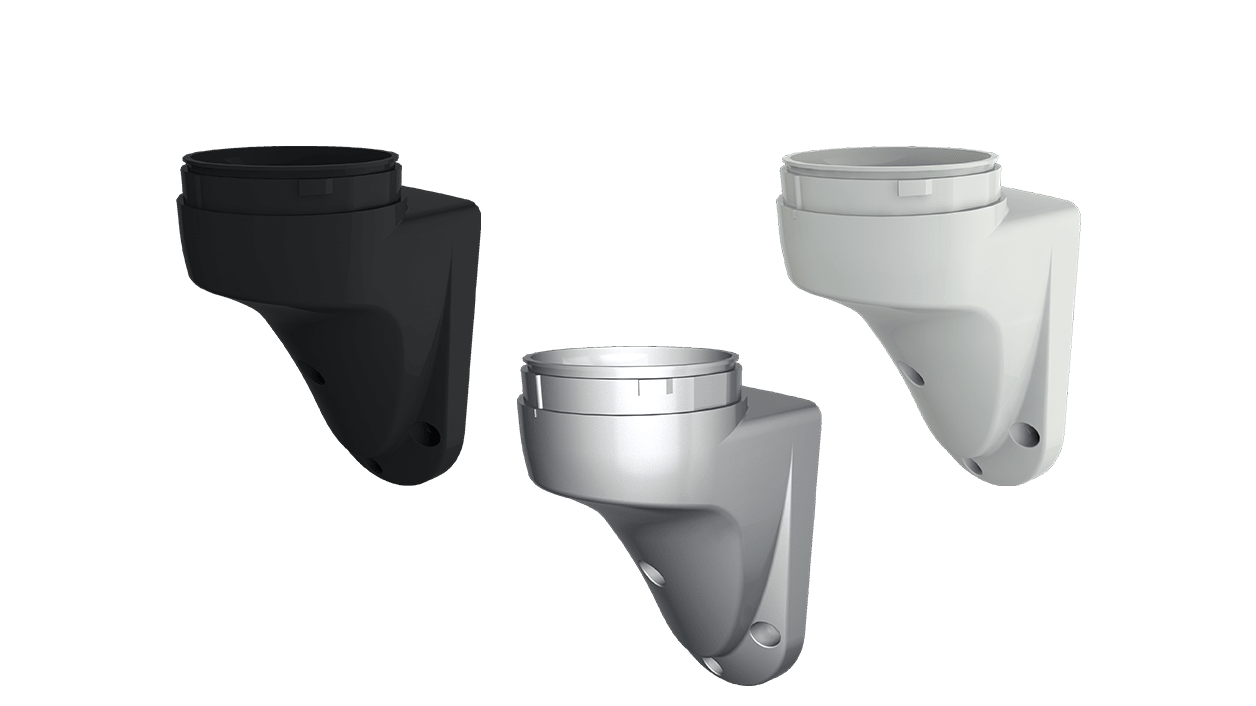

Wall Mounting Bracket
- SZ-110 (Off-white)
- SZ-110-D (Dark Gray)
- SZ-110-S (Silver)
BODY STYLE H-type
- Pre-assembled, pre-wired
C-type
- M12 Connector
BODY COLOR - Body: Off-white
- Body: Dark Gray
- Body: Silver
STACKABLE TIERS - 3 Tiers
- 5 Tiers
MODULE COLORS - Red
- Amber
- Green
- Blue
- Clear/White
AUDIBLE STYLE Buzzer 1:
- Lead Wire Type (Intermittent beep1)
- M12 Conector Type (Continuous Beep) 82dB (at 1m)
Buzzer 2:
- Lead Wire Type (Intermittent beep2)
- M12 Conector Type (None) 85dB (at 1m)
CONFORMITY STANDARDS - CE Marking (24V only)
- UL Component Recognition (US)
- c-UL Component Recognition (Canada)
- RoHS
PROTECTION RATINGS - IP-66 (Illumination Type)
- IP-65 (Buzzer Type)
