RES-A

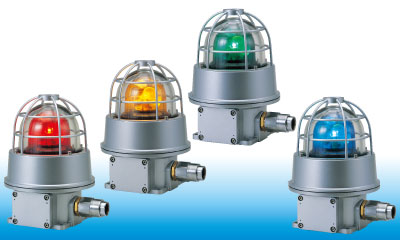

Explosion Proof Revolving Warning Light

The RES-A explosion proof Revolving Warning Light is designed for use in potentially flammable and explosive atmospheres, with IEC Standard compliances.

  • This product has a limited distribution area. Please ask our subsidiaries
Explosion Proof Revolving Warning Light

Download related files

Explosion Proof Revolving Warning Light
  • Products Overview
  • Frequently Asked Questions
  • Catalog Request
  • Contact Us
  • Accessories

Product Features

· Rotating Parabolic Reflector: For enhanced visibility from a distance.
· Installation: Indoors—upright, inverted, sideways; Outdoors—upright only.
· Main Body: Aluminum alloy die-cast with silver color baked finish.
· Dome: Acrylic resin covered with clear hard-glass, and metal guard.
· Product Standards: IEC Standards (IEC ExdIIB + H2T6) Zone1, 2 compliant.
· Approved by: TIIS.
· Available Colors: Red, Amber, Green, Blue.

Model Specifications

SIZE - 224mm diameter
OPERATING VOLTAGES - 12V DC
- 24V DC
- 48V DC
- 100V AC
- 115V AC
- 220V AC
- 240V AC
FUNCTIONS - Rotating
MOUNTING - Direct Mount
- Indoor: Upright, Inverted, Sideways
- Outdoor: Upright Only
BODY STYLE - Aluminum alloy die-cast
BODY COLOR - Body: Silver-colored Baked Finish
GLOBE COLOR - Light Source: Bulb
- Dome Colors: Red / Amber / Green / Blue
GLOBE MATERIAL - Glass
CONFORMITY STANDARDS - IEC Standards Zone 1,2 Compliace
- TIIS Approval
PROTECTION RATINGS - IP65
