信號燈手動控制盒(Ø50)
HSST-3M2

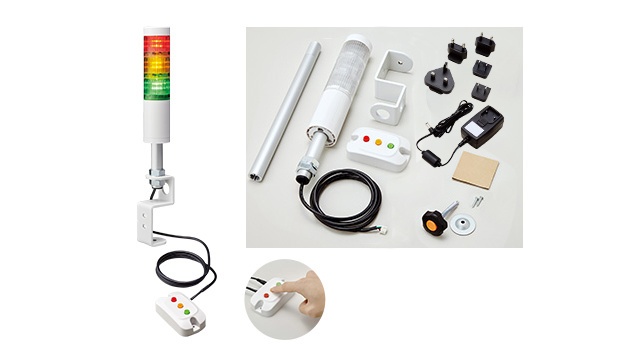

HSST 組合為Ø50信號燈的低成本解決方案。 此套組包含透明燈殼的LR5三層信號燈、鋁桿、安裝螺絲、控制盒、安裝支架以及AC 變壓器。適合組裝工站操作使用。

  • 信號燈
  • Φ50
  • 長亮
  • 室內
  • IP20
  • IP54

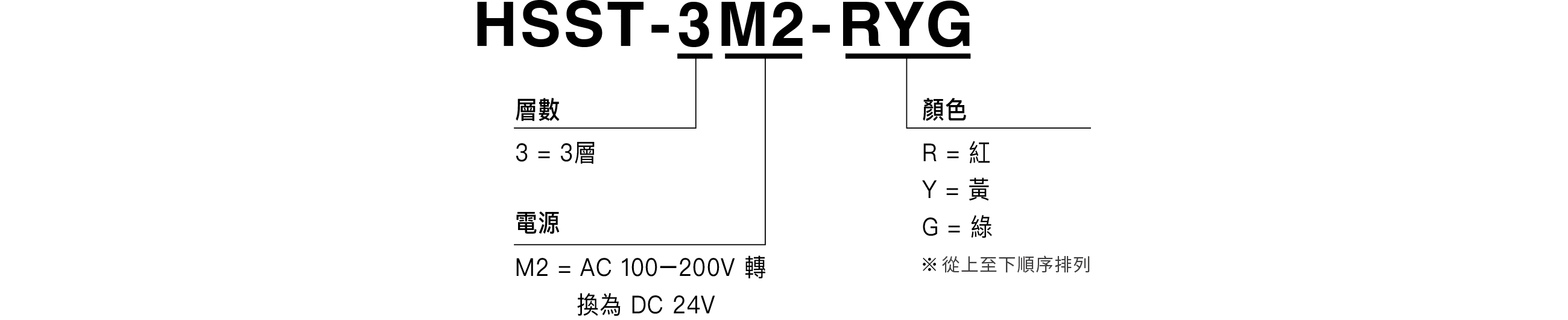

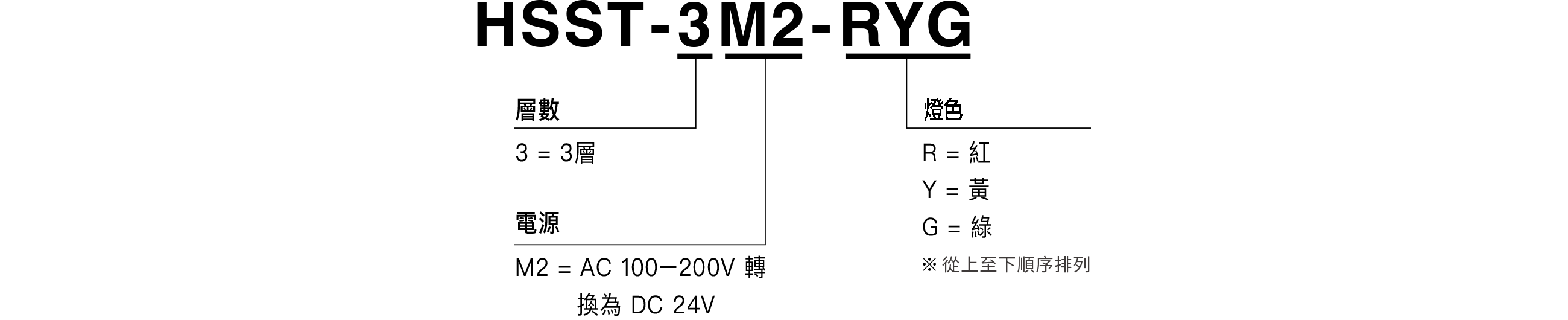

  • 信號燈手動控制盒(Ø50) HSST-3M2

無須維護的 LED 燈 按鈕式開關盒及安裝螺絲。 AC 電源變壓器 (AC100-240V) ,線長1650mm 內含直徑 50mm 的 3 層信號燈及1200mm電纜線, 適用於標準隔板的安裝支架, 控制盒及 AC 電源變壓器 燈色:紅色、黃色、綠色。 特色



規格

尺寸 Ø50mm x 307 (搭配短桿)
Ø50mm x 507 (搭配長桿)
額定電壓 AC 100-240V
本體顏色
功能 長亮
手動控制
安裝方式 桌面安裝
壁掛式安裝
隔板安裝
可使用層數 僅可三層
燈色 可控制LED顏色:紅、黃、綠
燈殼顏色:透明(點亮時顯色)
<font="3">認證 RoHS
FCC
- UL48
*EN61000-6-4, EN61000-6-2 EN61000-3-2, EN61000-3-3
防護等級 IP20 (控制盒)
IP54 (信號燈)

(*)本網站上數據的下載服務被認為已同意以下“”。

(*)本網站上數據的下載服務被認為已同意以下“”。

HSST-3M2  

HSST-3M2  

更換零件

分類 No. 名稱 零件型號 每一產品所需數 規格 更換的大致時間

																上蓋:象牙白
B32310071-7F1 1

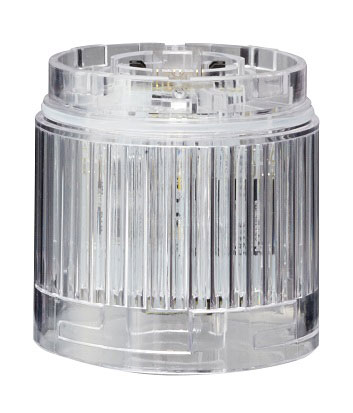

																LED元件:紅色(透明燈罩)
B72100248-1F1 1

附LED元件和O型圈。


																LED元件:黃色(透明燈罩)
B72100248-2F1 1

附LED元件和O型圈。


																LED元件:綠色(透明燈罩)
B72100248-3F1 1

附LED元件和O型圈。

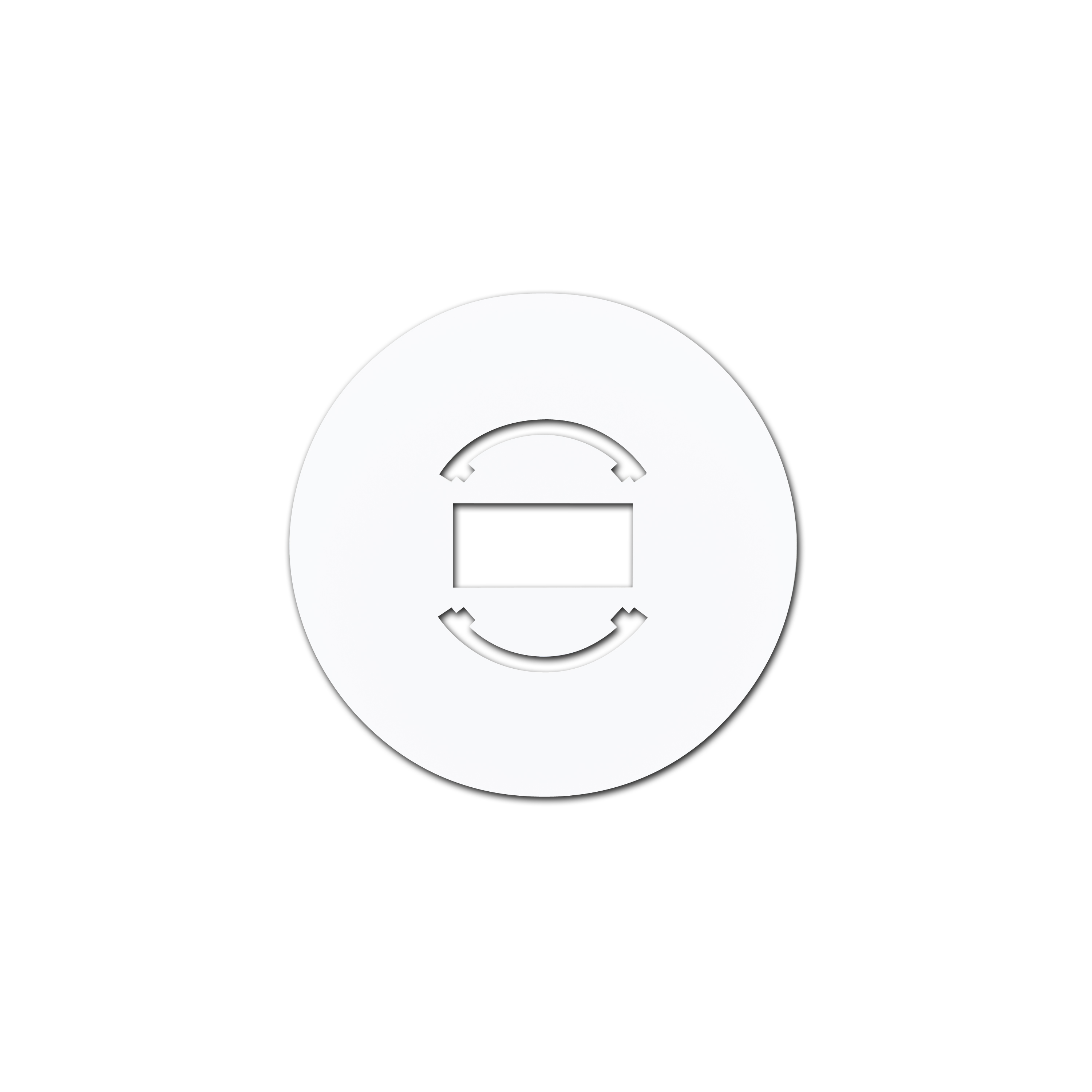

																稱 濾片(5pcs)
B25310067-5F1 3

该包装包含5件。

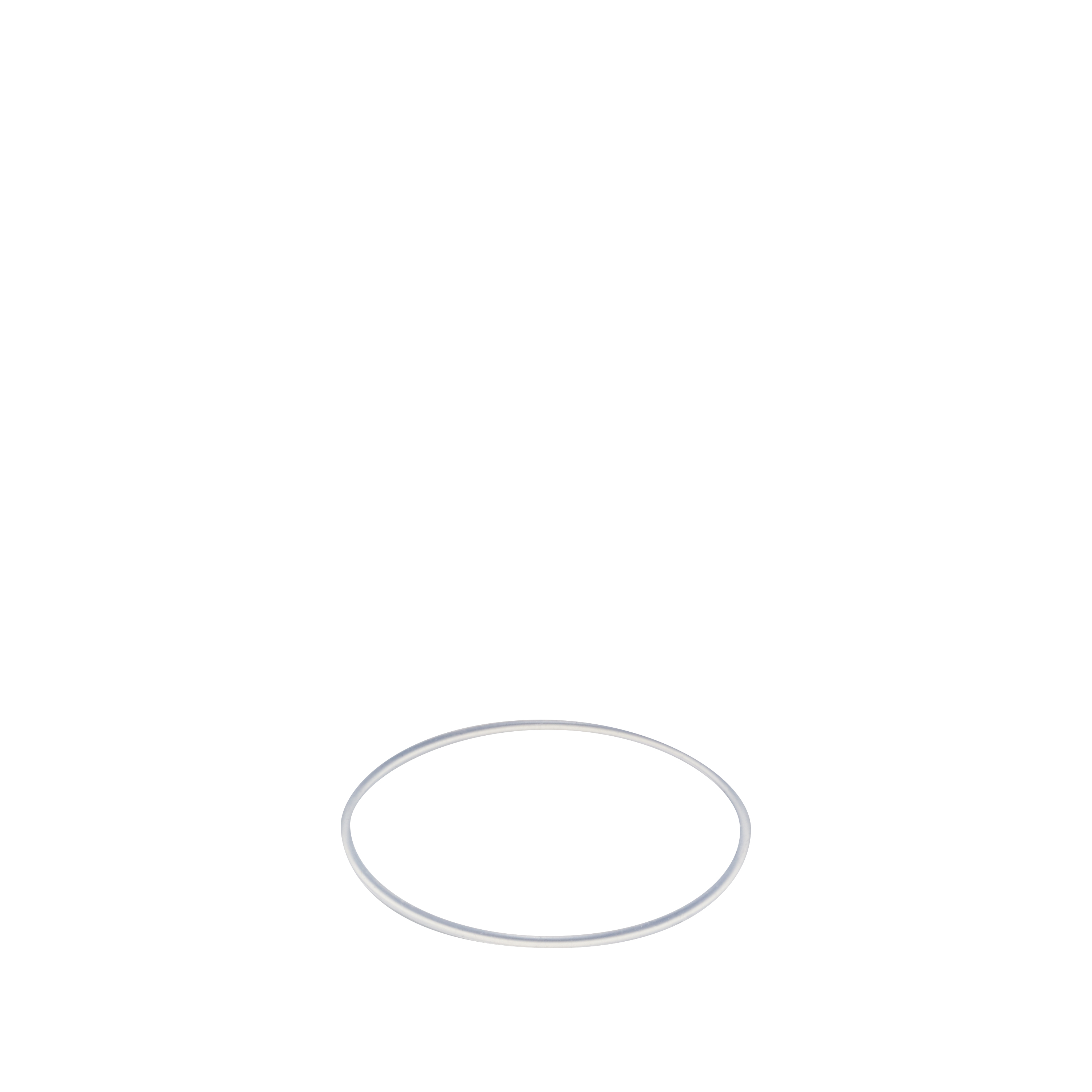

																O型圈 (5pcs)
B25110066-F1 5

一包5pcs


																底蓋:象牙白
B22210160-7F1 1

附O型圈、桿用防水墊圈、螺絲2pcs


																桿用防水墊圈
B25110047-F1 1

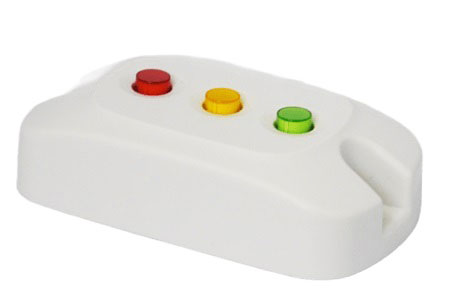

																開關盒
T16000002-F2 1

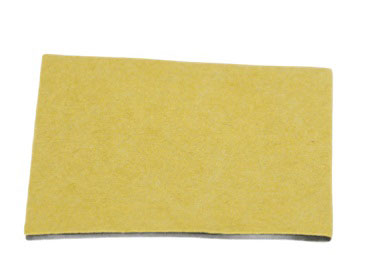

																雙面膠(5pcs)
B96110002-F1 1

一包5pcs

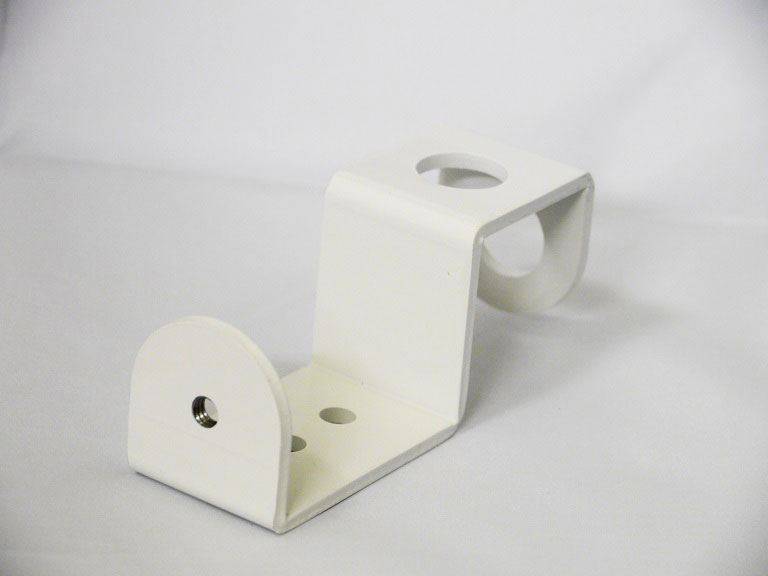

																支架
T85130016-F1 1

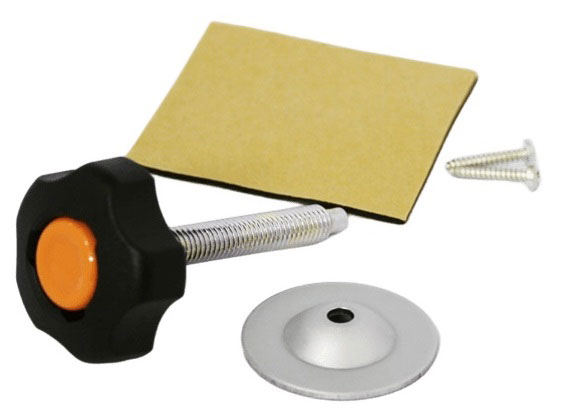

																組裝配件
T81800030-F1 1

產品隨附的配件。
螺絲、安裝板、雙面膠、自攻螺絲(M3×18,2pcs)。
