■ WD System
The WD system is a system that transmits information on various equipment in
production facilities (facility operation data, etc.) to the host PC via a WD wireless
network to collect data.
By collecting this information and visualizing it with application software, the
implementation of "grasp accurate utilization rate", "activate improvement of activities",
and "operation optimization" becomes visible.
It can also be used in applications not limited to production facilities.
|CONFORMITY STANDARDS|| - Radio Law Authorized Country: Japan (ARIB STD-T66)
United States (FCC)
|OPERATING VOLTAGES||- DC19.0V to DC26.4V|
|PROTOCOLS|| - Telecommunication Protocols: IEEE-802.15.4

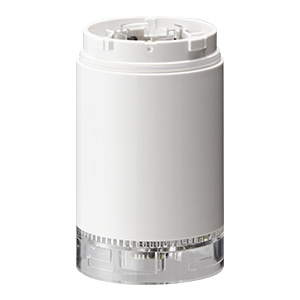

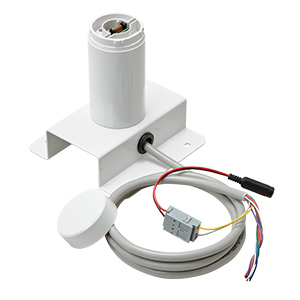

|FUNCTIONS|| - Connected Model: LR5 type Tiered Signal Tower Body unit top attachment
- Communication Frequency: 2405 MHz - 2480 MHz (16 channels)
- Communication distance: About 30m from source
- Number of Available Contacts: Six points
(red, amber, green, blue, white, buzzer)
