USB Signal Tower
If you use from a personal computer available and useful functions download various files.
LU7-USB

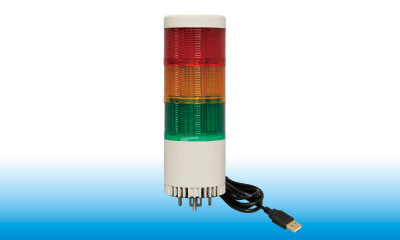

USB Signal Tower
PATLITE’s Modular System now offers a stackable Base Unit which includes an alarm and is USB powered and controllable with easy to use application software.

特点

・Needs only one USB Cable, so no power supply is necessary (Cable not included)
・operates with DLL Software
・A maximum of three tiers capable of lighting simultaneously
・Complies with CE/RoHS/FCC/KC Standards
・Protection rating of IP65
・Adjustable alarm frequency
・Two adjustable alarm sound levels
・Sound pressure is a maximum of 80dB
・Sample program for controlling product is downloadable from Patlite’s Global Home Page
・Four kind of flashing patterns
・13 different alarm sounds
・USB cable binding strip is included
・Supports Windows 7 and Windows 8 Operating Systems

型號・規格

DIMENSIONS - 70mm diameter
OPERATING VOLTAGES - 24V DC
FUNCTIONS - USB Controllable
- Continuous Only
- Continuous, Flashing, Alarms
MOUNTING - Direct mount only: includes three mounting nuts
BODY STYLE - Component style (USB cable NOT provided)
- interchangeable and stackable after purchase
BODY COLOR - Ivory White
- Black
STACKABLE TIERS - Up to 3 modules can be stacked
MODULE COLORS - Red / Amber / Green / Blue / Clear
- Standard LED Modules
- Strobe-flash LED Modules (24V bases only)
AUDIBLE STYLE - Alarm 1: Selectable, single-tone, continuous alarm; 80dB (at 1m)
- Alarm 2: Selectable, single tone, intermittent (slow beep) alarm; 80dB (at 1m)
CONFORMITY STANDARDS - CE Marking
- FCC
- KC Listed
- RoHS
PROTECTION RATINGS - IP 65
REMARKS - Free downloadable application software available for Windows 7 and Windows 8 compatibility.
- USB Bus Powered - no need for external power supply.
- Can have up to 3 LED modules operate simultaneously.
