智慧型信號燈
LA6

PATLITE將創新技術導入LA6智慧型信號燈內,使信號燈可以輕鬆地以各種方式顯示各種顏色以及顏色組合,從而以直觀易懂的方式傳達「可視化訊息」的無窮應用。

  • IO控制
  • 信號燈
  • Φ60
  • 長亮
  • 閃爍
  • 警示音
  • 85dB
  • 室內
  • IP65
  • 一燈多色

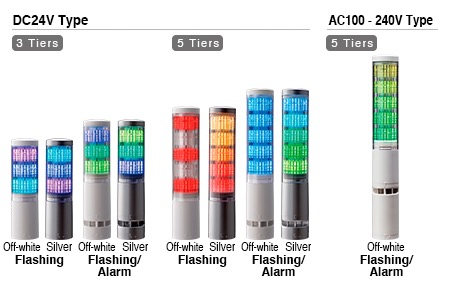

  • 智慧型信號燈 LA6
  • 自由設置多種顏色,以各種顏色模式警示異常情況。
  • 設置「操作模式」以增強視覺警示。
  • 下載免費軟體,可以輕鬆控制自訂應用的顯示條件

產品規格

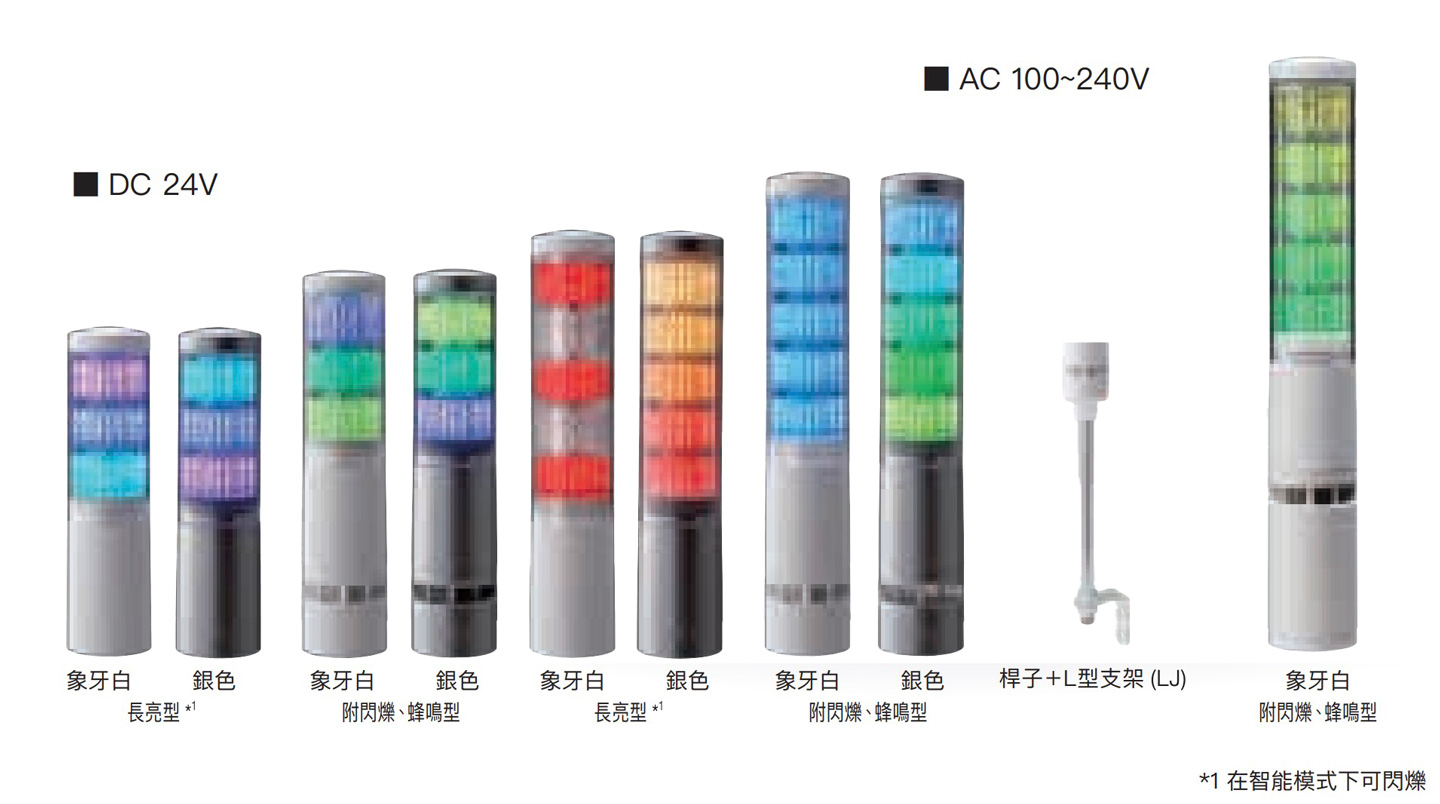

尺寸 Ø60
額定電壓 DC 24V
AC 100V~240V(僅WJ型)
功能 在三種不同的顯示模式下運行:
   單色模式
   時間觸發模式
   漸變模式

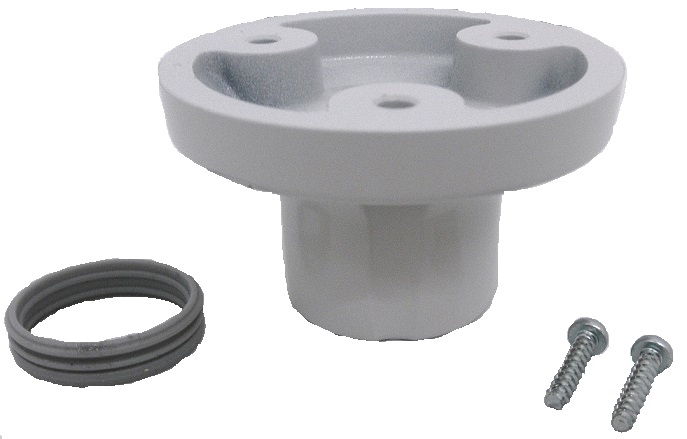

安裝方式 直接安裝(TN、WJ型)
桿式安裝(LJ型)
安裝類型 白色
銀色
層數 3層
5層
燈色 21色
蜂鳴器 11種蜂鳴聲
認證 EMC指令
RoHS指令
UL 508
FCC
KC
CE
防護等級 IP 65
蜂鳴器型IP54
備註 免費下載的編輯應用程式
UL認證的模組(僅24V型)
