Φ100 LED Signal Light
LFK-S
Φ100 LED Signal Light
Patlite’s new indoor/outdoor LED Signal Light has superior visibility, even in daylight, with a night-time visibility of 492 feet (150m). The long-life LED offers low maintenance for placement in hard-to-service locations.
The Model LFK LED Signal Light provides about 110 flashes per minute with a triple-flash pattern. It also is designed to resist water (IP54) and is durable for mounting on machinery with its vibration resistance of 9G.
The LFK has CE marking for the 12V, 24V and AC90-250V types.(UL certification is not available for the LFK)

特点

- Available in 12VDC, 24VDC, 48VDC and 90-250VAC

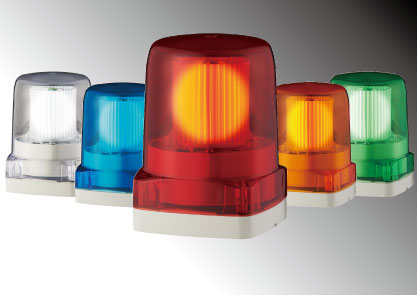

- Five Dome Colors of Red, Yellow, Green, Blue and Clear/White
- Triple Flash (110 fpm ±10%)
- Indoor/Outdoor Use
- IP54 (IEC60529)
- Vibration Resistance of 9G (90m/s2)
- RoHS Directive
- CAN/ULC-S526-M87
- CE Marking (Excluding 48VDC Model)

型號・規格

SIZE - φ100 diameter
OPERATING VOLTAGES - DC 12V
- DC 24V
- DC 48V
FUNCTIONS - Dimming
- Triple-flash (140 fpm ±10%)
MOUNTING - Direct or use optional brackets
BODY STYLE - For Indoor or Outdoor Use
BODY COLOR - Black Body
LIGHT SOURCE - High-power LED
CONFORMITY STANDARDS - CE (Excluding 48V Model)
PROTECTION RATINGS - IP66 (IEC60529)
REMARKS Colors Available:
- Red
- Amber
- Green
- Blue
- Clear/White
OPTIONS - SZ-007 Standard Mounting Bracket
- SZ-170 High-vibration Resistant Mounting Bracket
