Voice Annunciator BSV
If you use from a personal computer available and useful functions download various files.
BSV

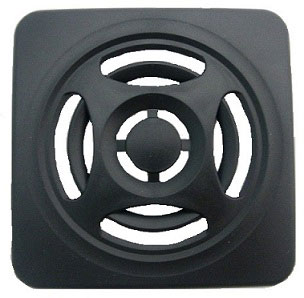

Voice Annunciator BSV
新産品的BSV超薄設計的 MP3音報警器產生出色的音質,從預先錄製的MP3文件。緊湊的尺寸允許面板安裝甚至緊身面板的整體造型與任何應用程序很容易完成Patlite的SD卡(單獨出售)和Patlite的自由(下載)編程軟件和編程

特点

·超薄設計
我們最薄的生產線設備的小型化,具有結構緊湊的設計有只19.9毫米深度匹配。最大的87分貝(1M)的聲音可以達到這樣一個薄的形狀。音量調節是很容易從面板訪問,和一個3.5W的低功耗(最大),需要一個額外的負荷,切斷電源。
·易於安裝
只需要訪問它從正面,封面是很容易安裝和音量調節可拆卸,可以減少勞動時間,維修等
·消息重寫
SD卡插槽,作為一個標準的配件,可重寫SD卡的MP3數據。此外消息重寫的獨家應用軟件,它是可以改變MP3的數據文件名,或沒有重寫它的應用軟件

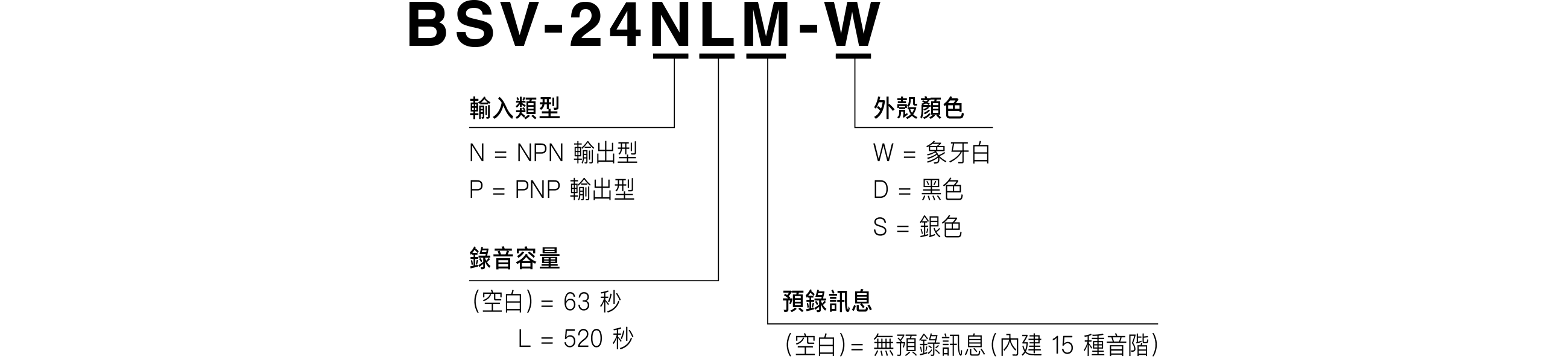

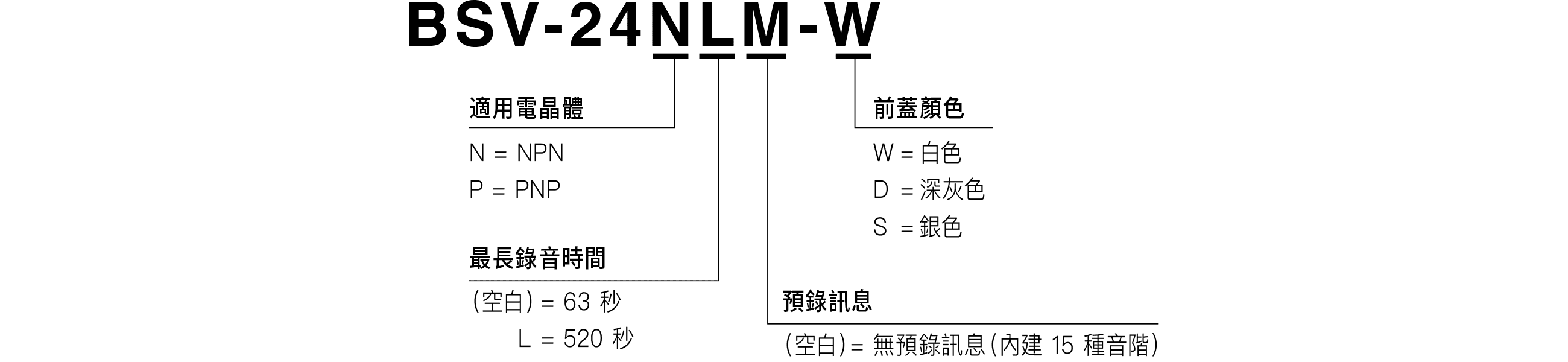

型號・規格

OPERATING VOLTAGES - DC12/24V
MOUNTING - Panel mount in the Upright Position
BODY COLOR - Dark Gray
- Off White
- Silver
VOLUME - Maximum 87dB at 1 meter (For Panel Mount)
- Maximum 85dB at 1 meter (For Wall Mount)
SOUND STORAGE - Long Play Model: Approximate Recording Time: 520 seconds (Bit rate=64k/s)
- Standard Model: Approximate Recording Time: 63 seconds (Bit rate=64k/s)
CHANNEL SELECTION - Bit Input: 5 (Sound Reduction Mode: 4)
- Binary Input: 31 (Sound Reduction Mode: 7)
CONFORMITY STANDARDS - CE Marking
- UL
- RoHS
PROTECTION RATINGS - Panel Mount: IP54 (Upright Only)
- Wall Mount: IP20
FUNCTIONS - Normal Playback
- Hold Playback
- Priority Input Playback
- Memory Playback
REMARKS - PNP Transistor
- NPN Transistor
OPTIONS - Playlist Editor 2 (Free Software Version)
- SDV-128P: SD Card (for mp3 file transfer and storage)*
*Other SD cards not guaranteed to work
