Wireless Data Acquisition System
If you use from a personal computer available and useful functions download various files.

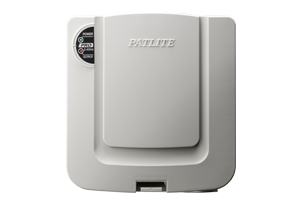

WDR-LE-Z2
Wireless Data Acquisition System
The WDR-LE-Z2 is a receiver used to connect to the computer via a LAN or USB connection and to communicate with the WD transmitters installed on the LE or LME signal towers.

特点

The WDR-LE-Z2 is a receiver used to connect to the computer via a LAN or USB connection and to communicate with the WD transmitters installed on the LE or LME signal towers.

型號・規格

CONFORMITY STANDARDS - FCC
- NCC
- NBCT
- SDPPI
- SRRC
DIMENSIONS - H131.8 W125 D38.8mm
OPERATING VOLTAGES - Rated Voltage: DC24V (Non-polar)
- Operating voltage Range: DC21.6V to DC26.4V
PROTOCOLS - Description: Stationary Receiver
FUNCTIONS - Operating Temperature Range: —10℃ to 60℃ (No Condensation)
- Operating Humidity Range: 85% RH or less(No Condensation)
- Storage Temperature Range: —20℃ to 70℃(No Freezing)
- Installation: Upright Position(Indoor Only)
BODY STYLE - Mass: 160g
BODY COLOR - Body: Beige
