MPS
30mm

Slim LED tower with silver-colored body and a compact design at 30mm (1-1/4-inch) diameter, Body Length 45mm.

30mm

Download related files

  • 3D data show
30mm
  • Products Overview
  • Frequently Asked Questions
  • Catalog Request
  • Contact Us

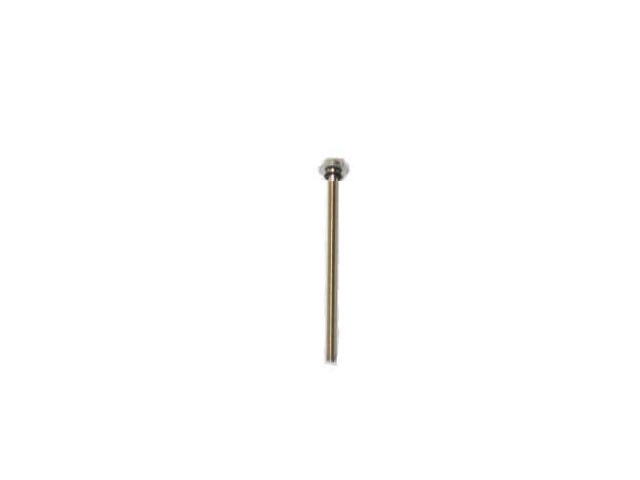

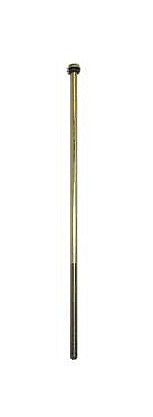

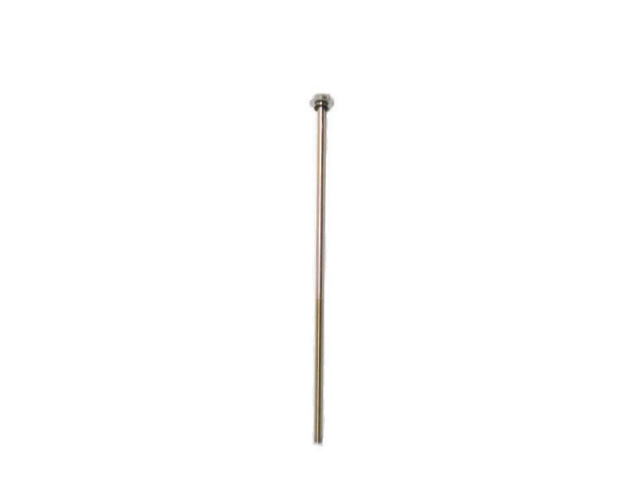

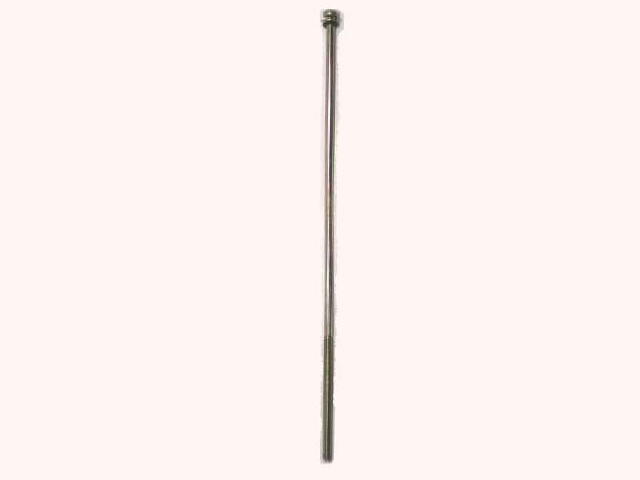

  • Accessories

Product Features

· PATLITE's Exclusive Hybrid Prism Cut Lens: For enhanced visibility from any direction and distance.
· Double Insulation: For enhanced durability and safety in the work environment.
· Installation: Direct mount with a single hole.

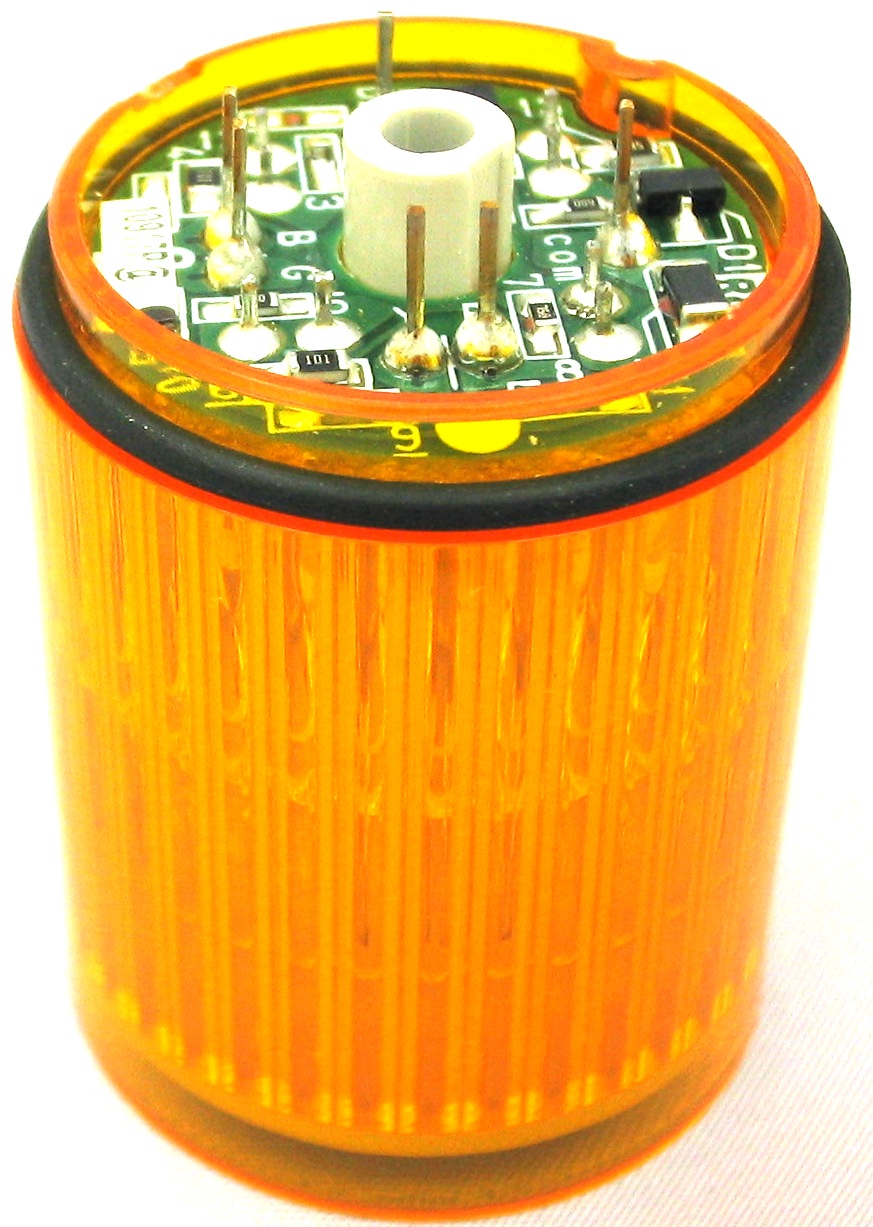

· Interchangeable LED module: No re-wiring even after installation.
· Main Body: Superior impact and heat resistant ABS resin.
· Lens: Superior weather resistant and light translucent AS resin.
· Available Colors: Red, Amber, Green, Blue, Clear/White.

Model Specifications

DIMENSIONS - 30mm diameter
OPERATING VOLTAGES - 24V AC/DC
FUNCTIONS - Continuous Only
- Dry contact closure such as switches or relay contacts
- Open-collector transistor (NPN or PNP) for DC24V
- Direct voltage control
MOUNTING - Direct mount only: includes M22 mounting nut and sealing gasket
BODY STYLE - Pre-assembled, pre-wired
- Interchangeable and stackable module after purchase
BODY COLOR - Body: Silver
STACKABLE TIERS - Up to 5 modules can be stacked

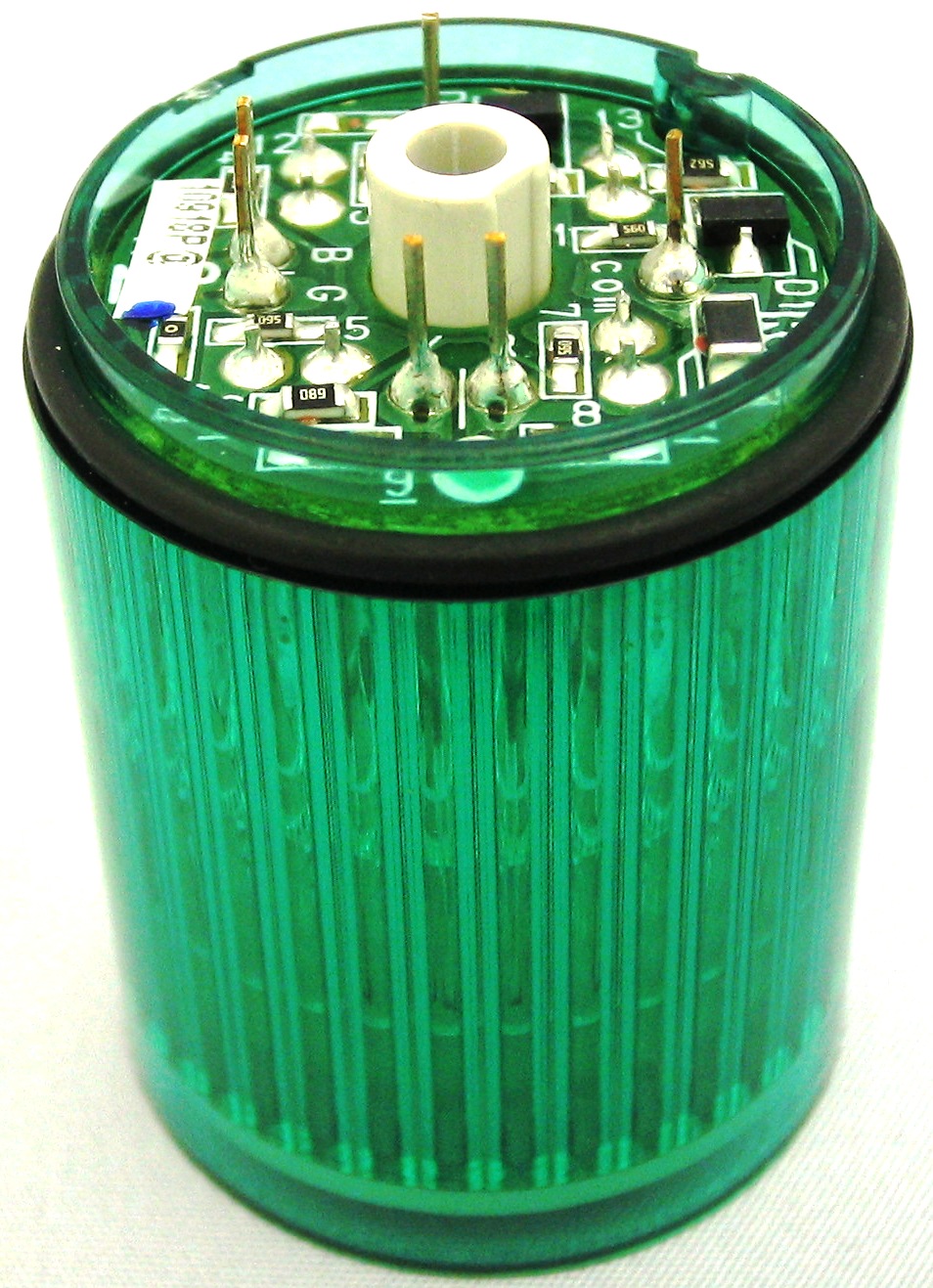

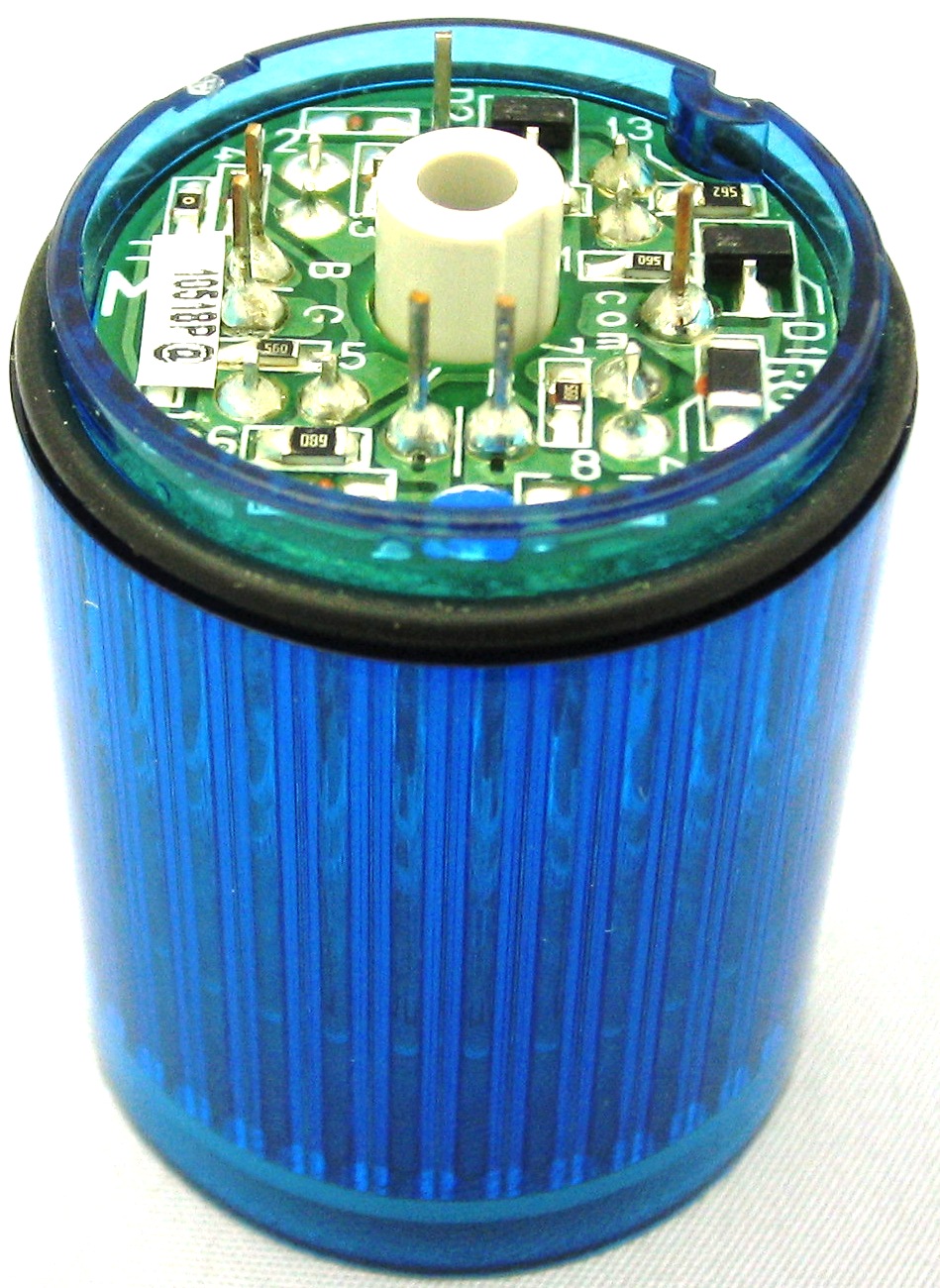

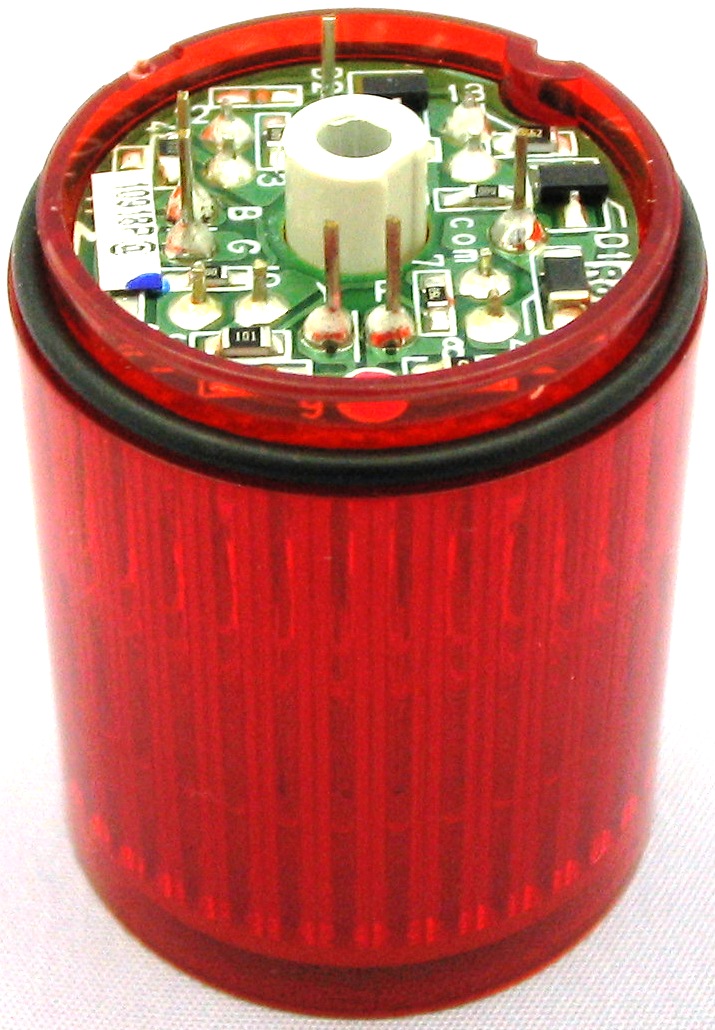

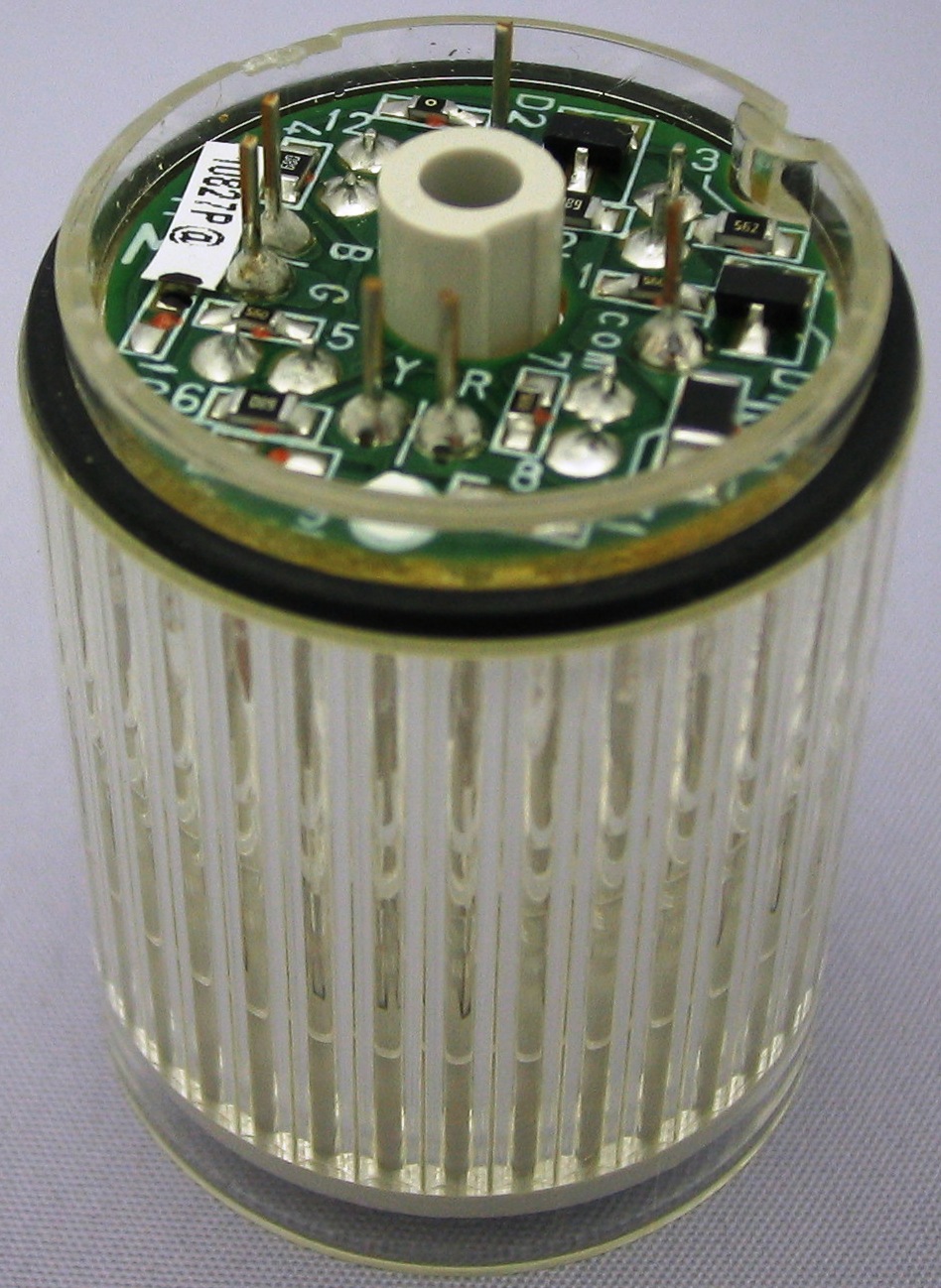

MODULE COLORS - Red
- Amber
- Green
- Blue
- Clear
CONFORMITY STANDARDS - CE Marking
- UL Component Recognition (US)
- c-UL Component Recognition (Canada)
- RoHS
PROTECTION RATINGS - IP-65
