100mm LED Revolving Warning Light
If you use from a personal computer available and useful functions download various files.
RKE

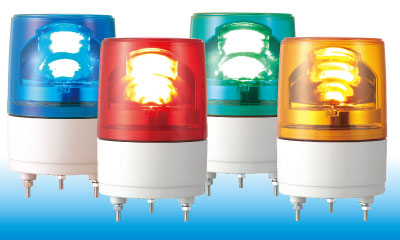

100mm LED Revolving Warning Light
The RKE series is a compact LED revolving warning light featuring enhanced illumination with 1super bright LED chip, a squared-off shaped dome and an innovative light dispersion reflector system.

特点

· Colors available: Red, Amber, Green, Blue.
· RHEB/RKEB series has an integral alarm (hi-pitch tone 90dB at 1m) that sounds with light operation.
· Compact Motor: High durability and energy-efficient.
· Energy-Efficient: Maintenance-free 1 chip super bright LED.
· Dome lens: Impact and heat resistant polycarbonate resin.
· Main Body: Impact and heat resistant ABS resin.
· CE Compliant (12V DC, 24V DC type only).
· Terminal Block: For easy wiring

型號・規格

SIZE - 100mm diameter
OPERATING VOLTAGES - 12V DC (Special Order)
- 24V DC
FUNCTIONS - Rotating
- Rotating with Alarm
MOUNTING - Direct Mount
- Indoor: Upright, Inverted, Sideways
- Outdoor: Upright Only
BODY STYLE - Round base
- Round top, colored dome
- Pre-assembled, terminals provided
- Optional SZ-200A gasket to increase the IP Rating
BODY COLOR - Body: Beige
GLOBE COLOR - Light Source: LED
- Dome Colors: Red / Amber / Green / Blue
GLOBE MATERIAL - Polycarbonate Resin
AUDIBLE STYLE - RKEB: 1 built-in alarm; Typical Output: 88dB/m, Minimum: 83dB/m
- Volume is not adjustable
CONFORMITY STANDARDS - CE Marking
- RoHS Compliant
PROTECTION RATINGS - IP-23 without optional SZ-200A gasket
- IP-55 with optional SZ-200A gasket
OPTIONS - SZ-30T
- SZ-30L
- SZ-007
- SZ-008
- SZ-200A
