RHE

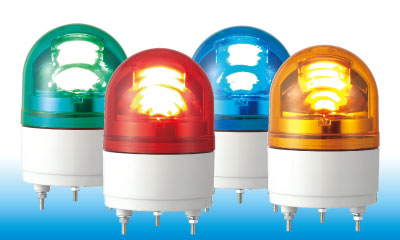

100mm LED Revolving Warning Light
The RHE series is a compact LED revolving warning light featuring enhanced illumination with 1super bright LED chip, a dome and an innovative light dispersion reflector system.
· Colors available in Red, Amber, Green and Blue.
· Built-in alarm (single-tone, 90dB at 1m) that sounds with the operating light.
· Uses a compact motor that provides high durability and energy-efficiency.
· Maintenance-free with super-bright, long-lasting LEDs.
· Impact and heat resistant dome lens made from polycarbonate resin material.
· Impact and heat resistant main body is made from ABS resin material.
· CE Compliant for 12V DC and 24V DC types only.
· Terminal block design for easier wiring
| SIZE | - 100mm diameter |
|---|---|
| INPUT VOLTAGES | - 12V DC (Special Order) - 24V DC |
| FUNCTIONS | - Rotating - Rotating with Alarm |
| MOUNTING | - Direct Mount - Indoor: Upright, Inverted, Sideways - Outdoor: Upright Only |
| BODY STYLE | - Round base - Round top, colored dome - Pre-assembled, terminals provided - Optional SZ-200A gasket to increase the IP Rating |
| BODY COLOR | - Body: Beige |
| LIGHT SOURCE/COLORS | - Light Source: LED - Dome Colors: Red / Amber / Green / Blue |
| GLOBE MATERIAL | - Polycarbonate Resin |
| ALARMS | - RHEB: 1 built-in alarm; Typical Output: 88dB/m, Minimum: 83dB/m - Volume is not adjustable |
| CONFORMITY STANDARDS | - CE Marking - RoHS Compliant |
| PROTECTION RATINGS | - IP-23 without optional SZ-200A gasket - IP-55 with optional SZ-200A gasket |
| OPTIONAL HARDWARE | - SZ-30T - SZ-30L - SZ-007 - SZ-008 - SZ-200A |
